Installation Procedure

    Fig 1: View Of PSIR Bracket
    GM1284589Courtesy of GENERAL MOTORS CORP.
  1. If replacing the PSIR bracket, install the PSIR bracket to the I/P structure.

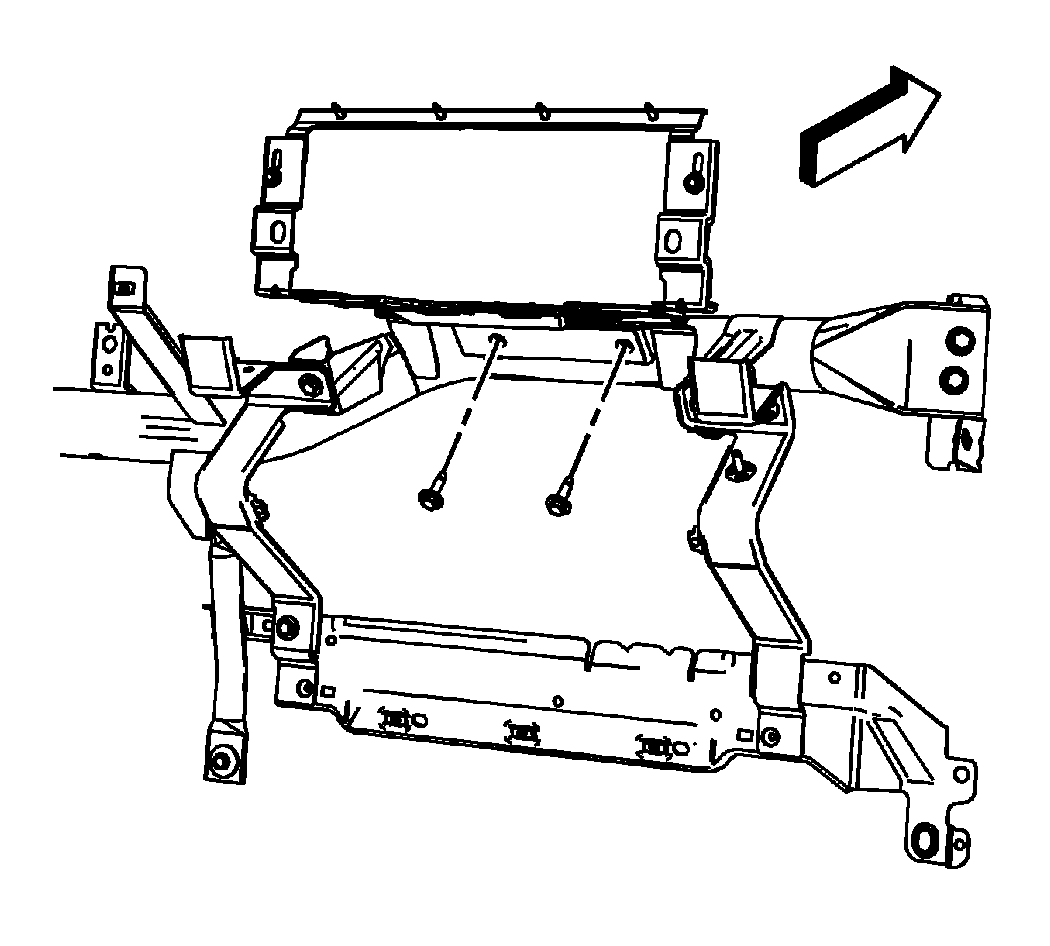

    2. Fig 2: View Of PSIR Bracket To I/P Structure Fasteners
    GM1284588Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the 2 fasteners retaining the PSIR bracket to the I/P structure.

    Tighten:  Tighten the fasteners to 9 N.m (80 lb in).

  3. Install the I/P assembly. Refer to Instrument Panel Assembly Replacement (Left Hand Drive) or Instrument Panel Assembly Replacement (Right Hand Drive) .

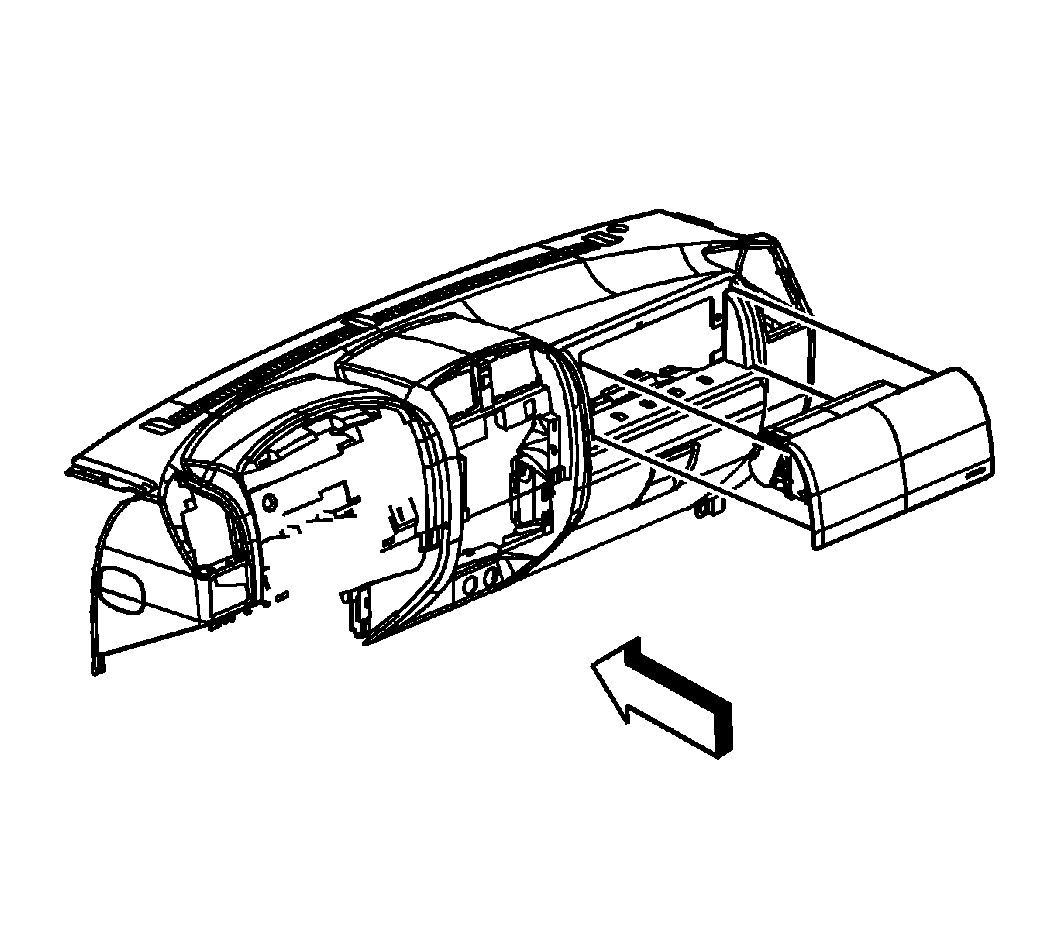

    4. Fig 3: View Of PSIR Module
    GM1276395Courtesy of GENERAL MOTORS CORP.
  4. Position the PSIR inflator module to the front of the I/P and connect the electrical connector.
  5. Connect the CPA.
  6. Install the PSIR inflator module to the I/P.

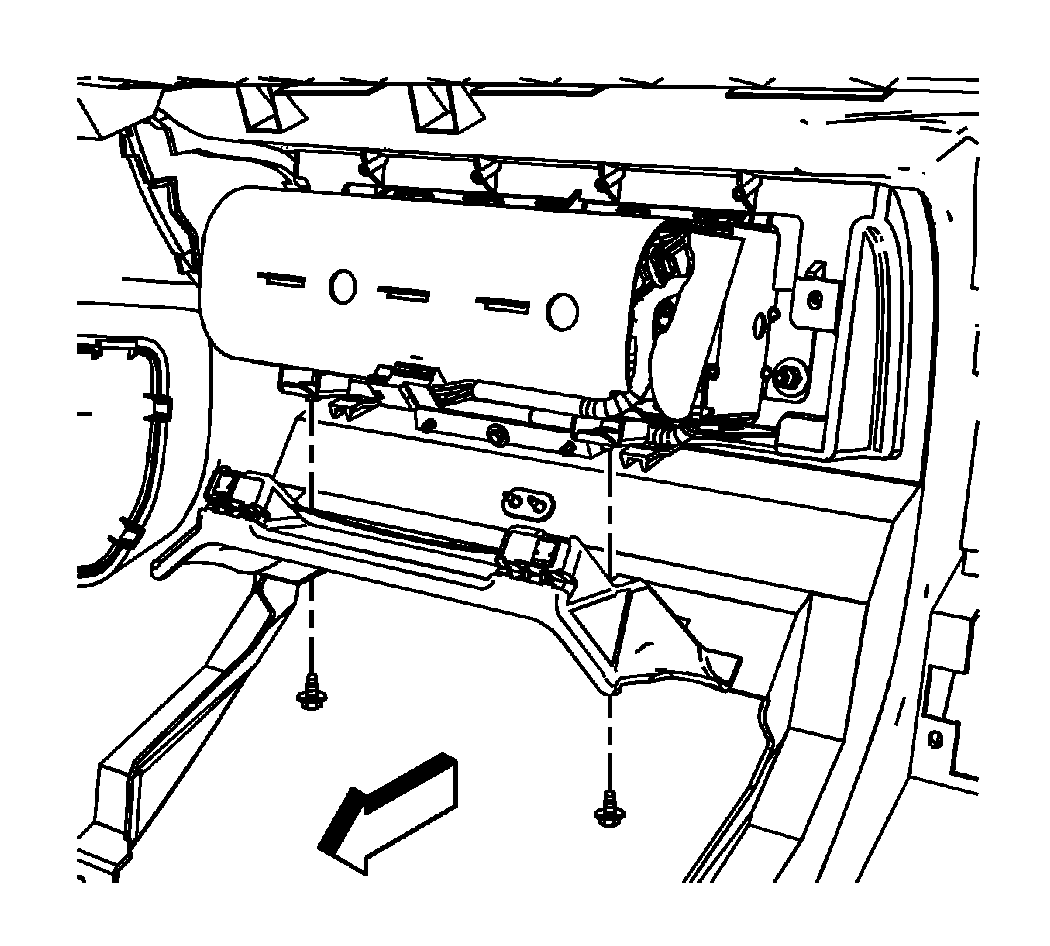

    7. Fig 4: View Of PSIR Inflator Module Fasteners
    GM1304351Courtesy of GENERAL MOTORS CORP.
  7. Partially install the 2 lower fasteners retaining the PSIR module to the I/P structure.

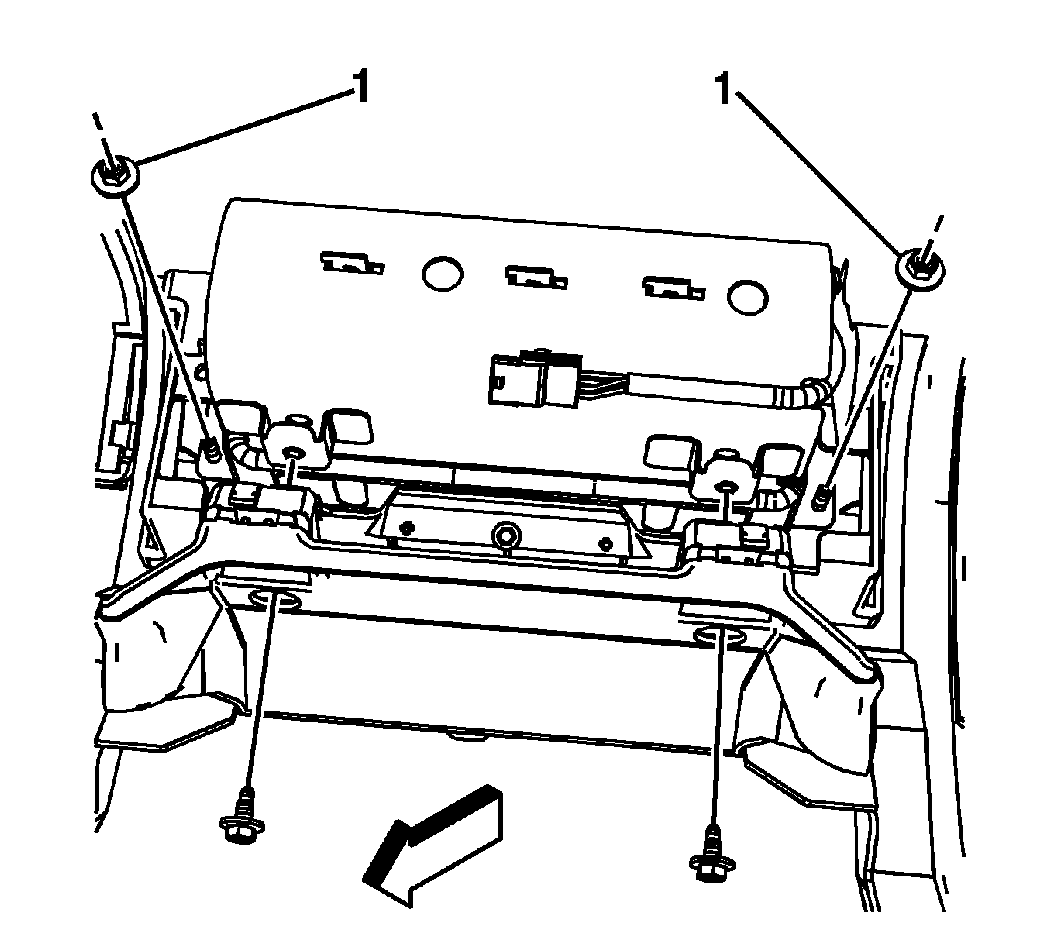

    8. Fig 5: View Of PSIR Module Retaining Nuts
    GM1304254Courtesy of GENERAL MOTORS CORP.
  8. Install the 2 side retaining nuts (1) to the PSIR inflator module.

    Tighten:  Tighten the 4 PSIR fasteners until fully driven, seated and not stripped.

  9. Install the digital radio receiver, if equipped. Refer to Digital Radio Receiver Replacement .
  10. Install the radio. Refer to Radio Replacement .
  11. Install the I/P center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Right Hand Drive) or Instrument Panel Center Trim Panel Replacement (Left Hand Drive) .
  12. Install the right air outlet. Refer to Instrument Panel Outer Air Outlet Replacement - Right Side .
  13. Install the right access cover to the I/P end cap.
  14. Enable the SIR System. Refer to SIR Disabling and Enabling .
  15. Install the I/P compartment door. Refer to Instrument Panel Compartment Door Replacement .
