Steering Wheel Replacement

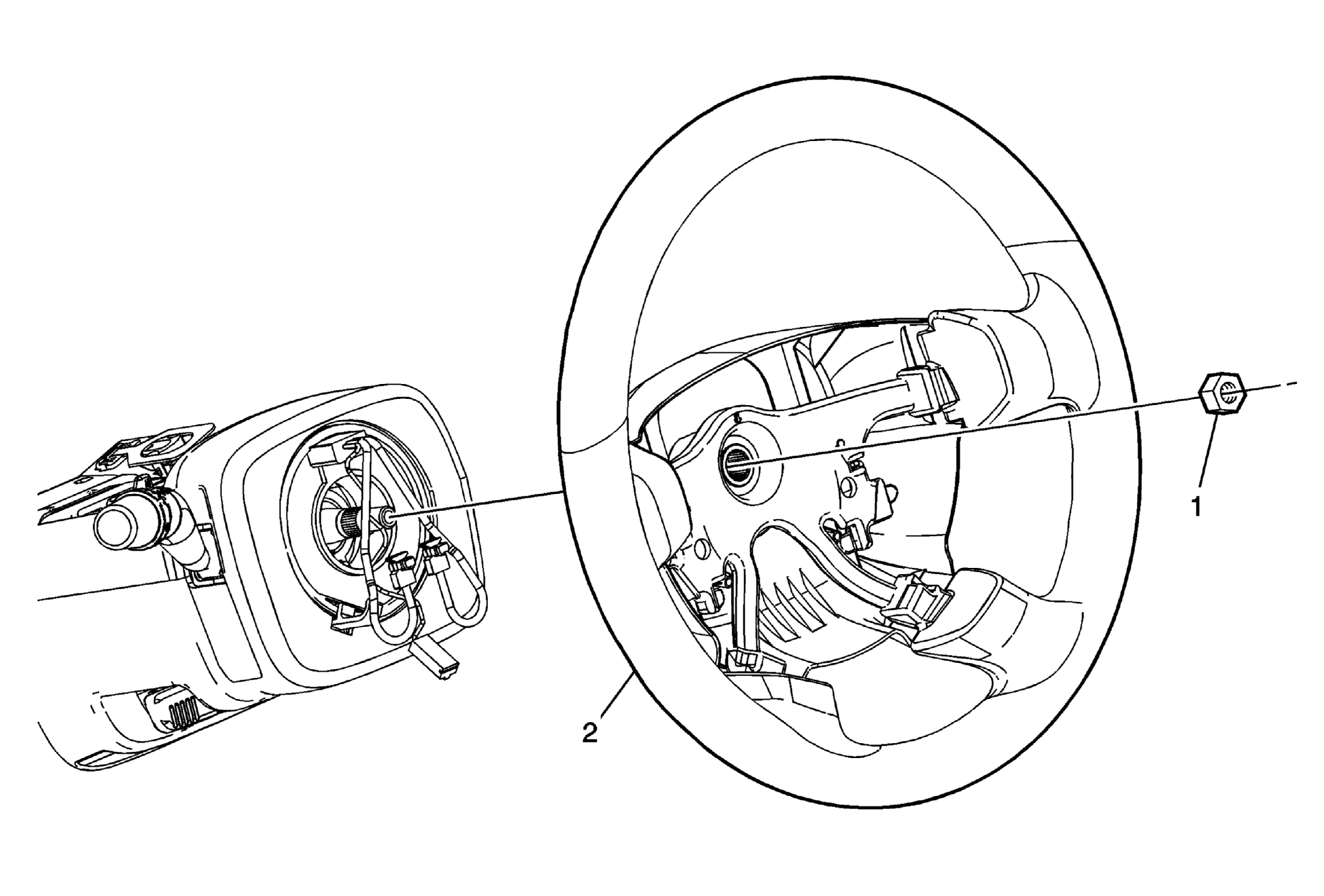

Fig 1: Steering Wheel Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Nut CAUTION: Refer to Fastener Caution . Tighten: 35 N.m (26 lb ft)
2	Steering Wheel Procedure Install anti-rotation pin J 42640 . See Special Tools . Disconnect any electrical connectors as needed. To remove the steering wheel, screw the steering wheel nut on several turns and then wiggle the steering wheel loose. Special Tools: J 42640 Steering Column Anti-Rotation Pin. See Special Tools .

Callout

Component Name

Preliminary Procedure:
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Nut

CAUTION: Refer to Fastener Caution .

Tighten: 35 N.m (26 lb ft)

Steering Wheel

Procedure

Install anti-rotation pin J 42640 . See Special Tools .
Disconnect any electrical connectors as needed.
To remove the steering wheel, screw the steering wheel nut on several turns and then wiggle the steering wheel loose.

Special Tools:
J 42640 Steering Column Anti-Rotation Pin. See Special Tools .
