Front Brake Caliper Hardware Replacement

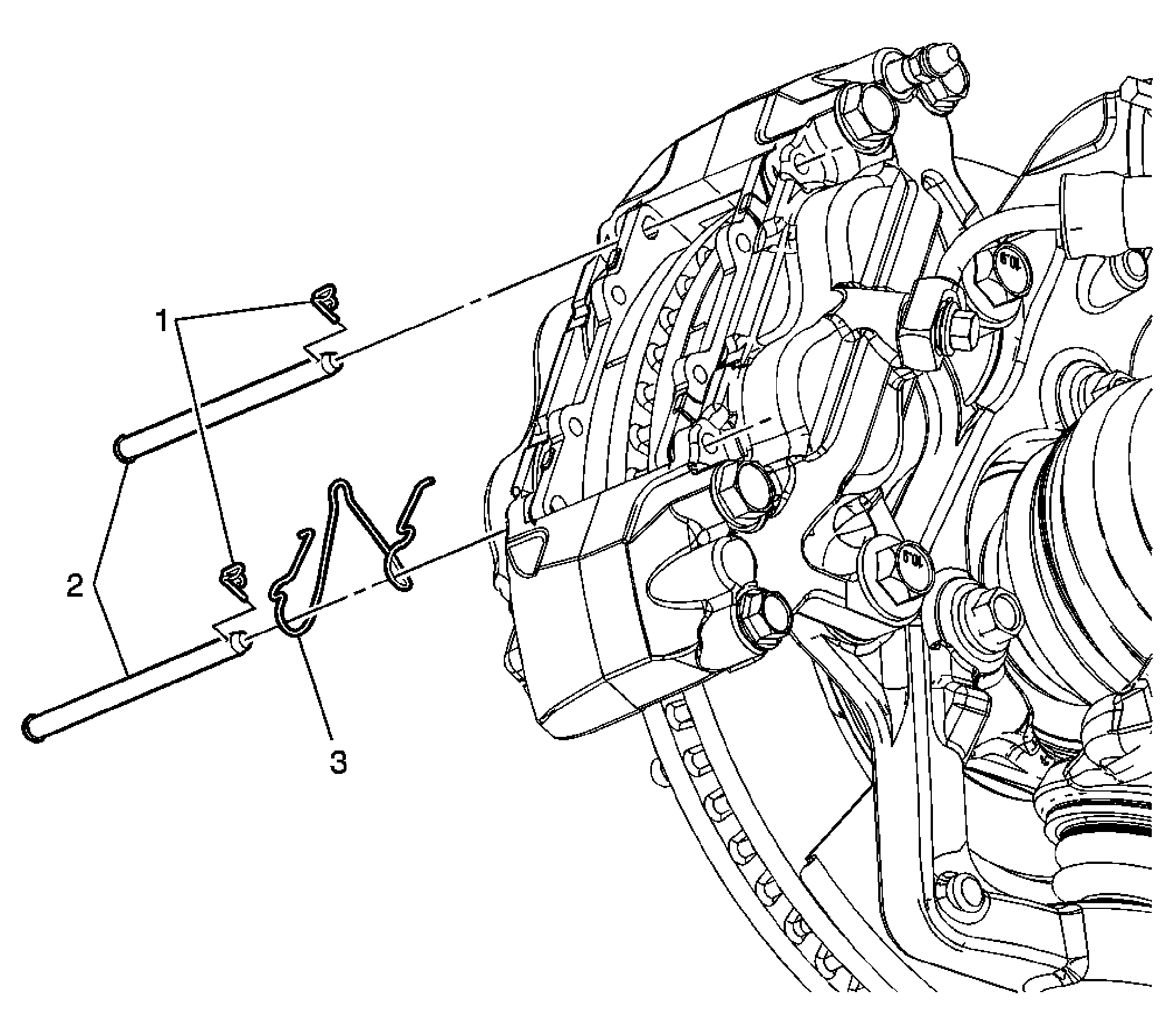

Fig 1: Disc Brake Hardware Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . WARNING: Refer to Brake Fluid Irritant Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Front Disc Brake Pad Retainer (Qty: 2)
2	Front Disc Brake Pad Pin (Qty: 2)
3	Front Disc Brake Caliper Damping Clip
