Moveable Window Schematics

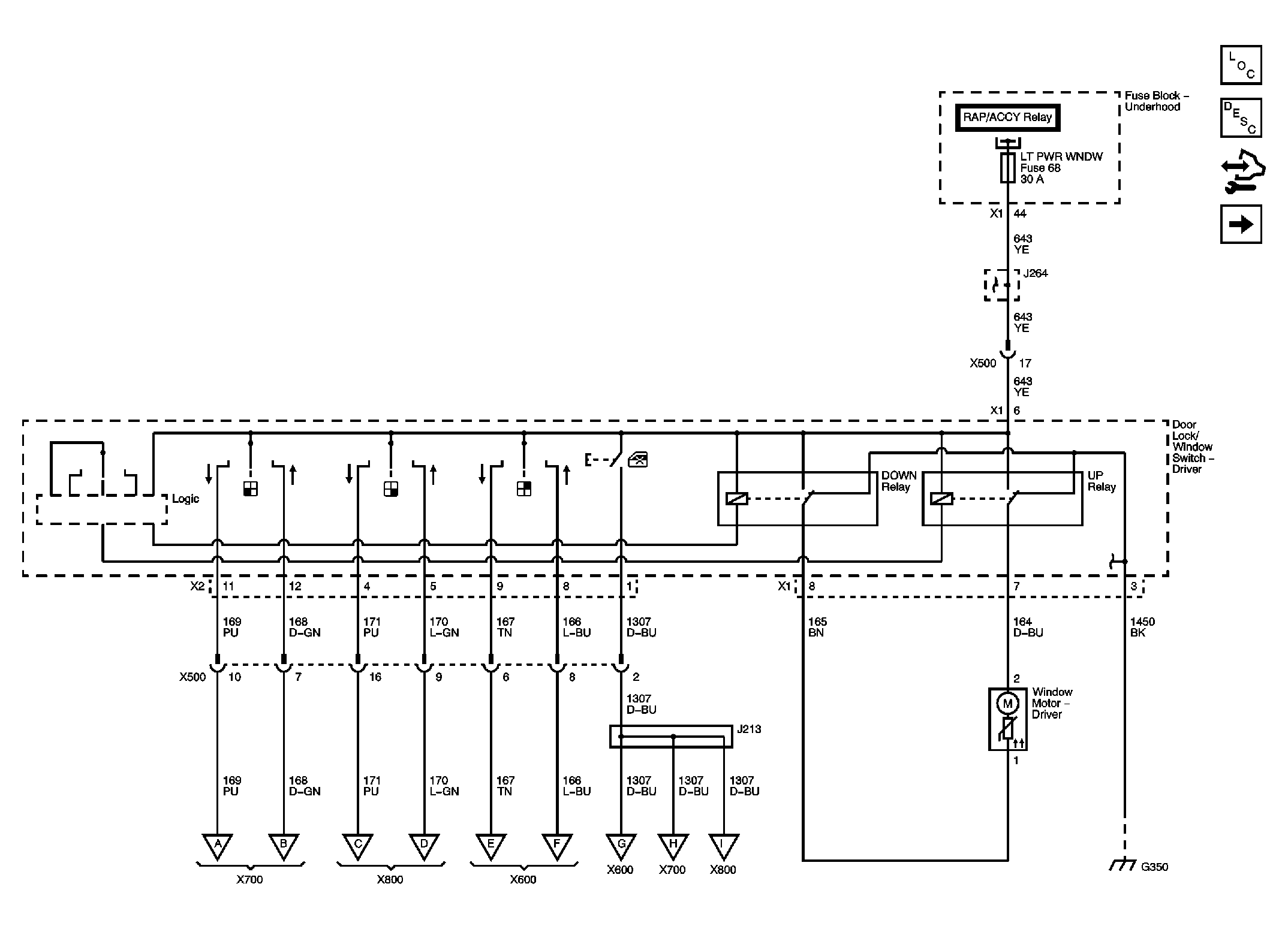

Fig 1: Driver Door (Left Hand Drive) Schematic
GM2080424Courtesy of GENERAL MOTORS CORP.

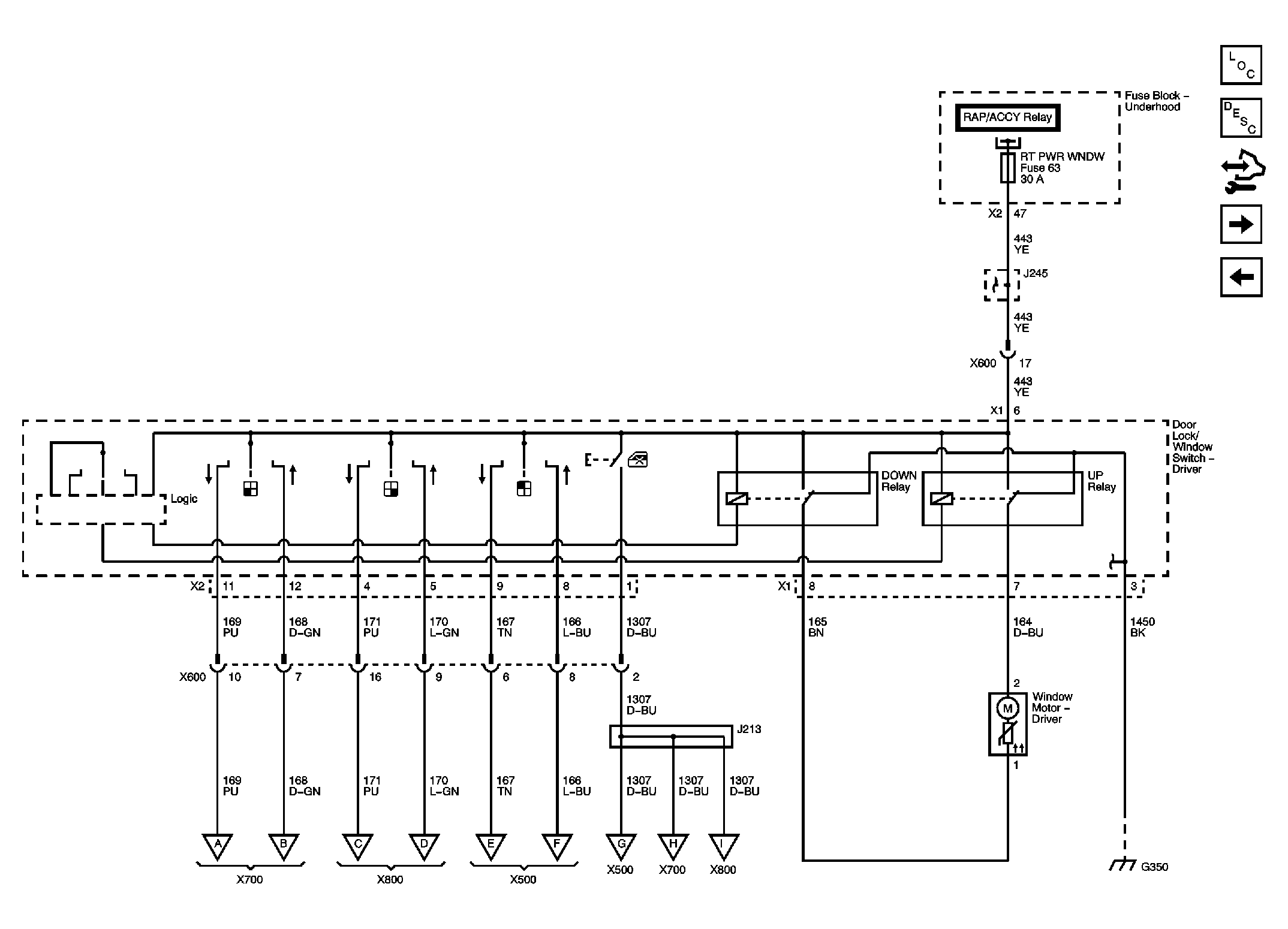

Fig 2: Driver Door (Right Hand Drive) Schematic
GM2080426Courtesy of GENERAL MOTORS CORP.
Fig 3: Passenger Door (Left Hand Drive) Schematic
GM2080430Courtesy of GENERAL MOTORS CORP.
Fig 4: Passenger Door - (Right Hand Drive) Schematic
GM2080431Courtesy of GENERAL MOTORS CORP.

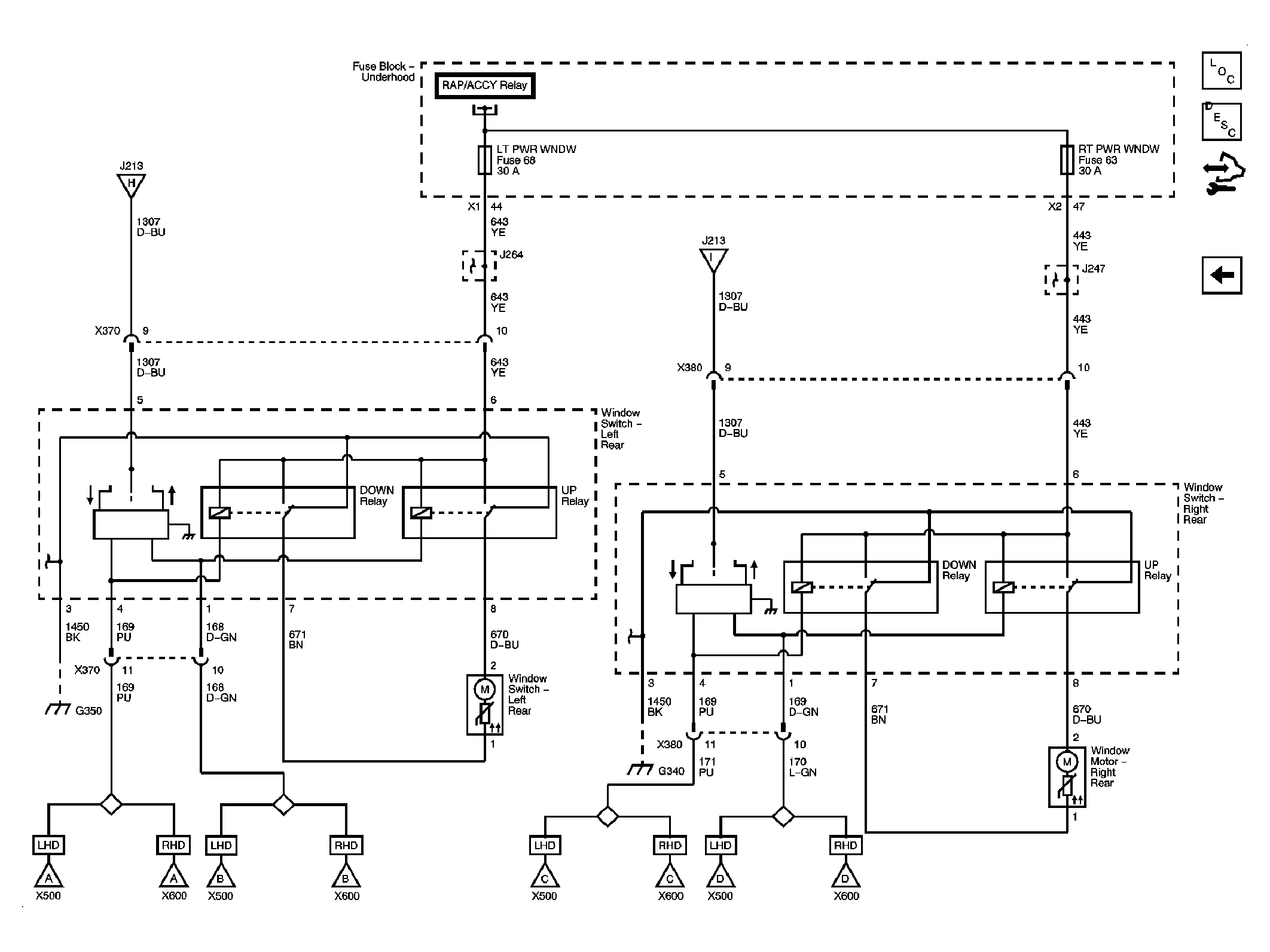

Fig 5: Rear Doors Schematic
GM2080433Courtesy of GENERAL MOTORS CORP.
