Electronic Navigation Antenna Replacement

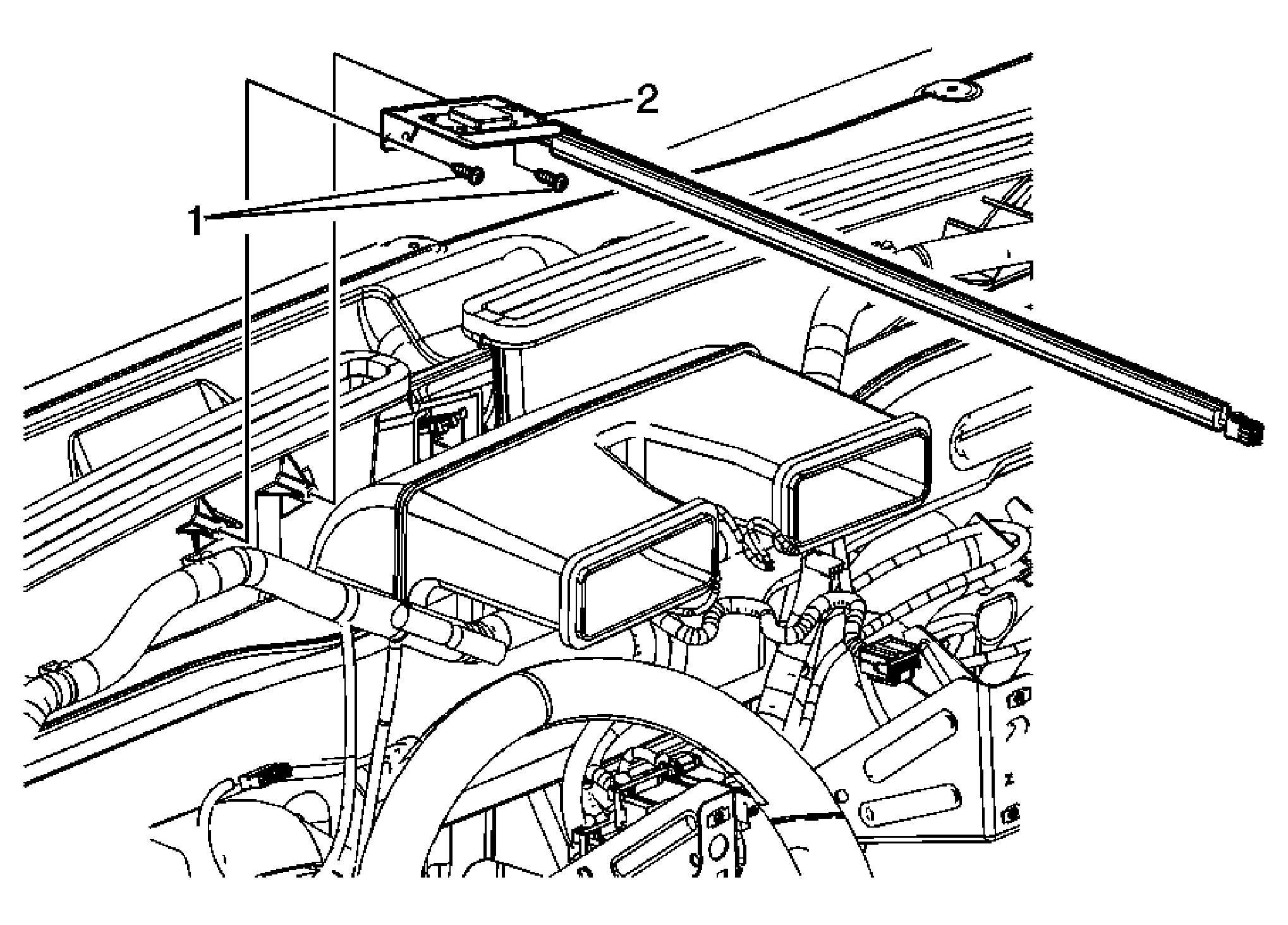

Fig 1: Antenna Replacement - Global Positioning System (GPS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Left Hand Drive) or Instrument Panel Assembly Replacement (Right Hand Drive) .
1	Radio Antenna Module Assembly Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	Radio Antenna Module Assembly
