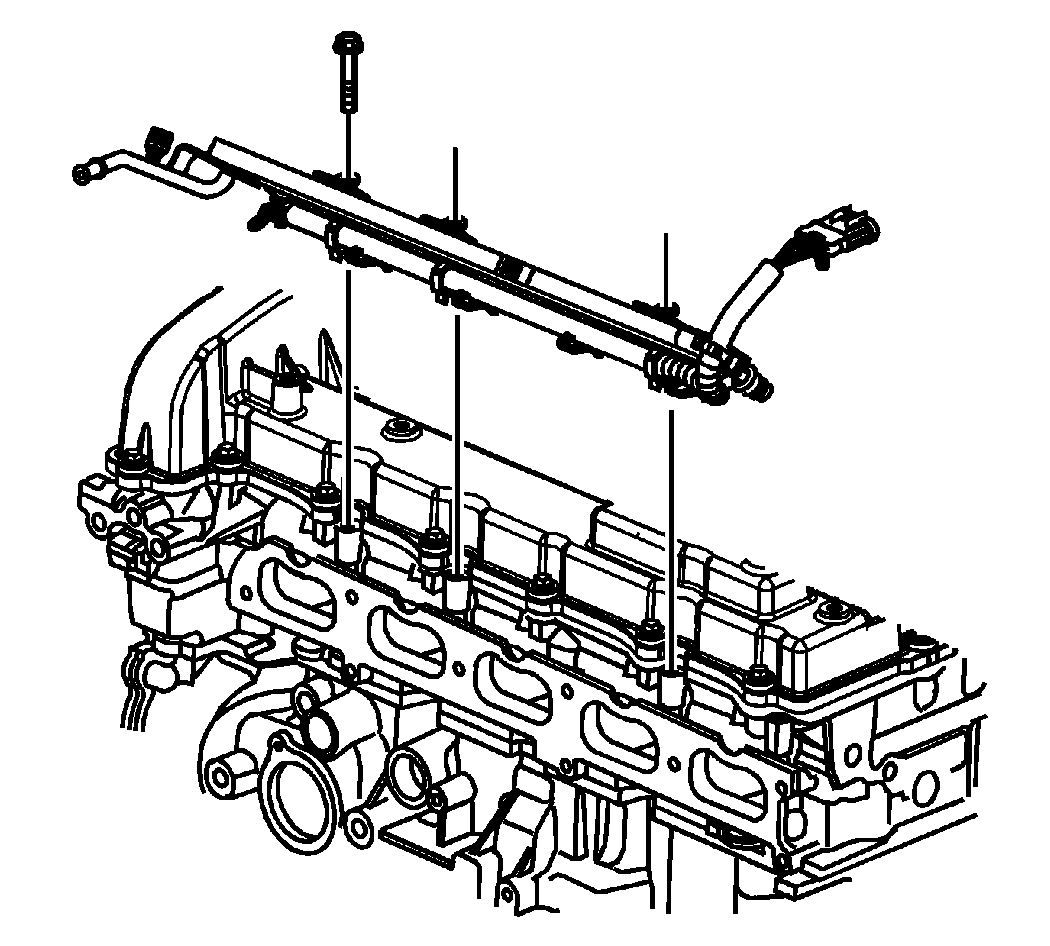

Fuel Rail Assembly
Courtesy of GENERAL MOTORS CORP.
The fuel rail assembly attaches to the cylinder head. The fuel rail assembly performs the following functions:
- Positions the fuel injectors in the cylinder head
- Distributes fuel evenly to the injectors
