Fuel Fill Pipe

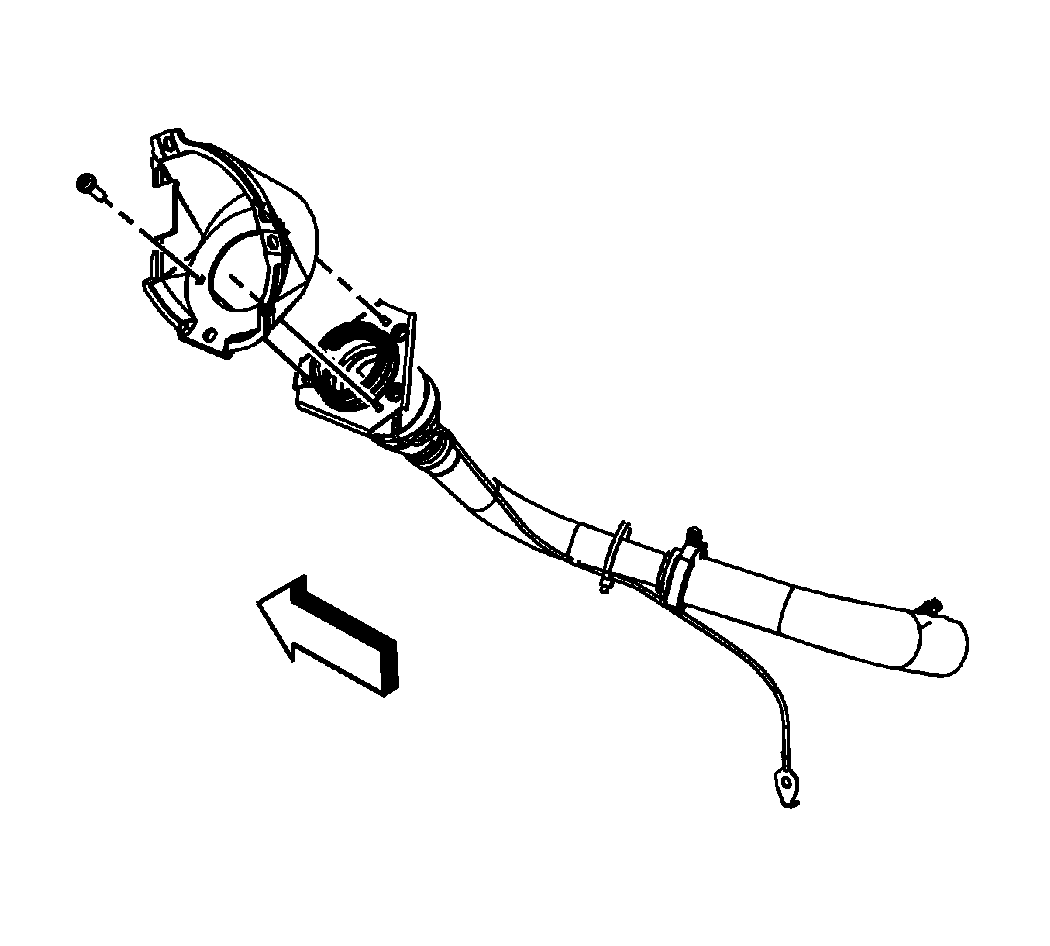

Fig 1: View Of Fuel Filler Hose

GM1361727

Courtesy of GENERAL MOTORS CORP.

The fuel fill pipe has a built-in restrictor in order to prevent refueling with leaded fuel.
