Trailer Connector/Provision Schematics

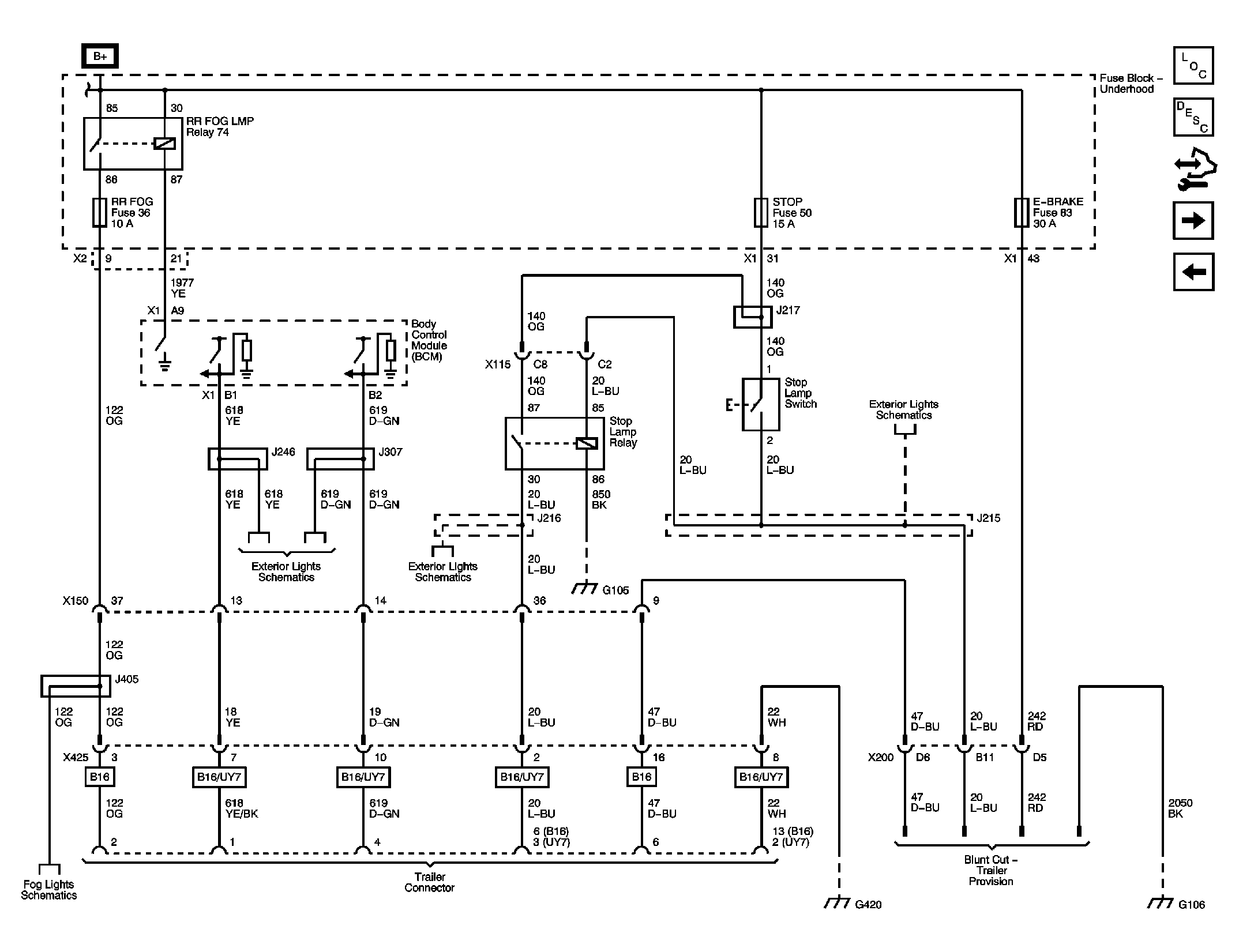

Fig 1: Trailer Wiring (SUV with SLA) Schematic

Courtesy of GENERAL MOTORS CORP.

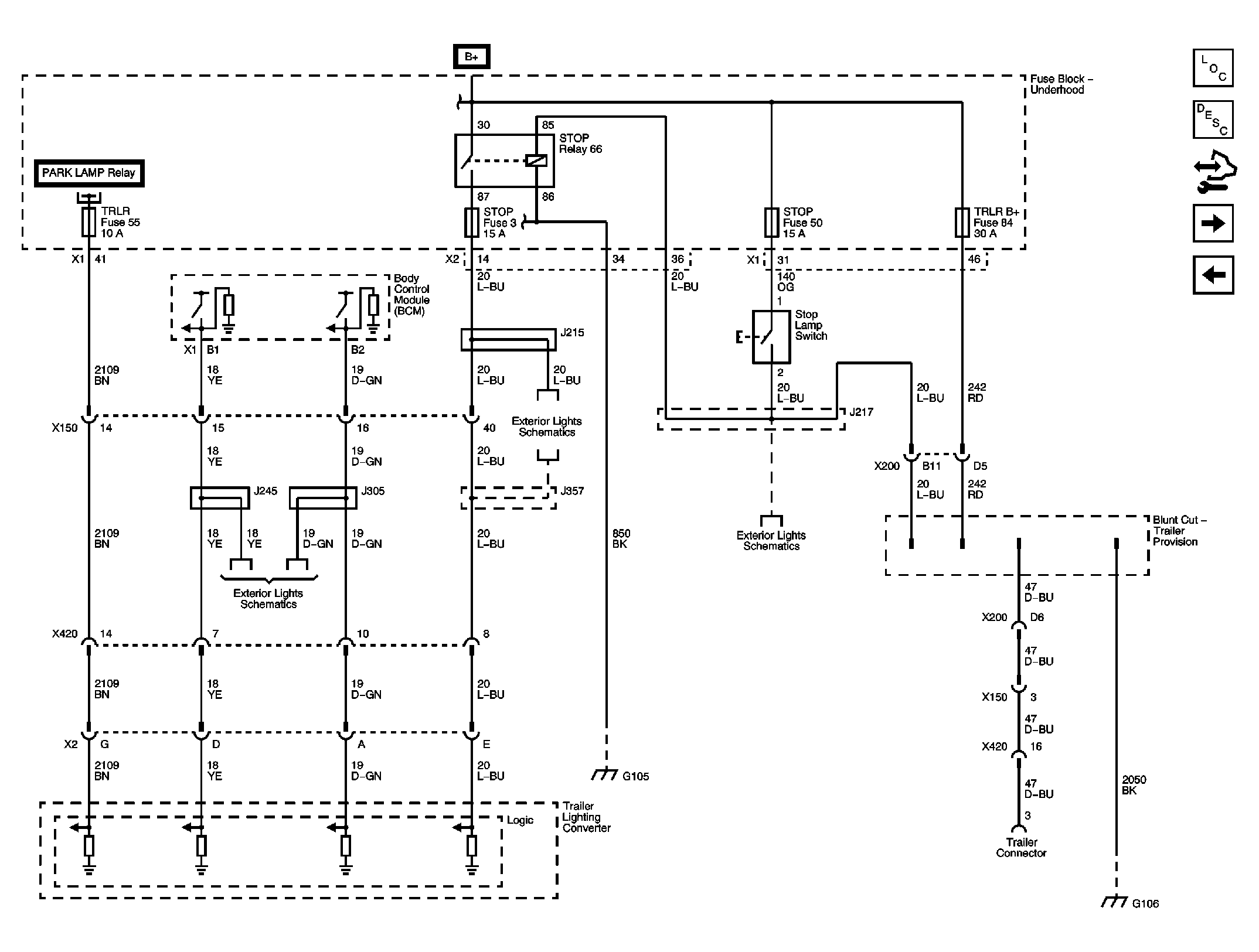

Fig 2: Trailer Wiring (SUV with SSA) Schematic 1 of 2

Courtesy of GENERAL MOTORS CORP.

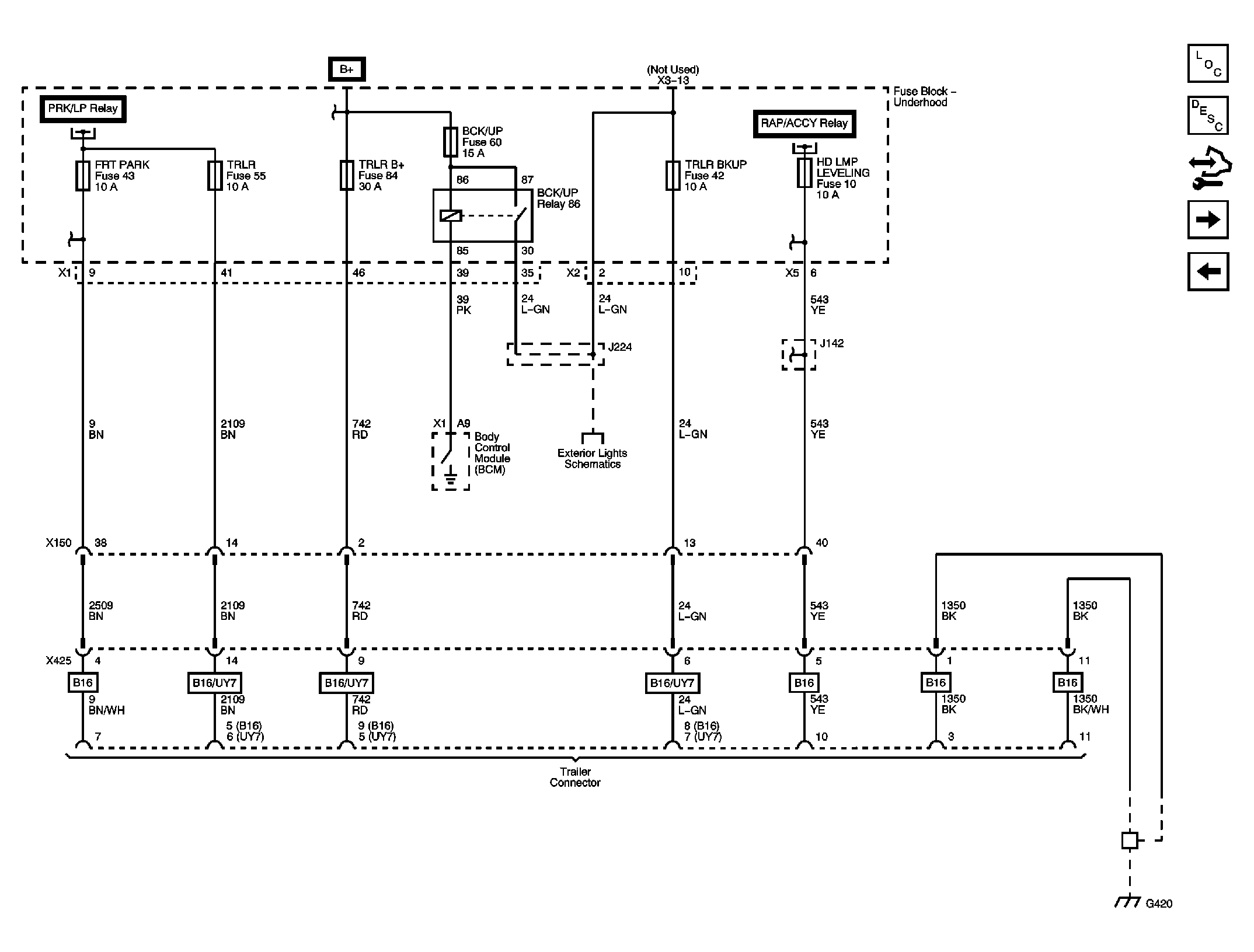

Fig 3: Trailer Wiring (SUV with SSA) Schematic 2 of 2

Courtesy of GENERAL MOTORS CORP.

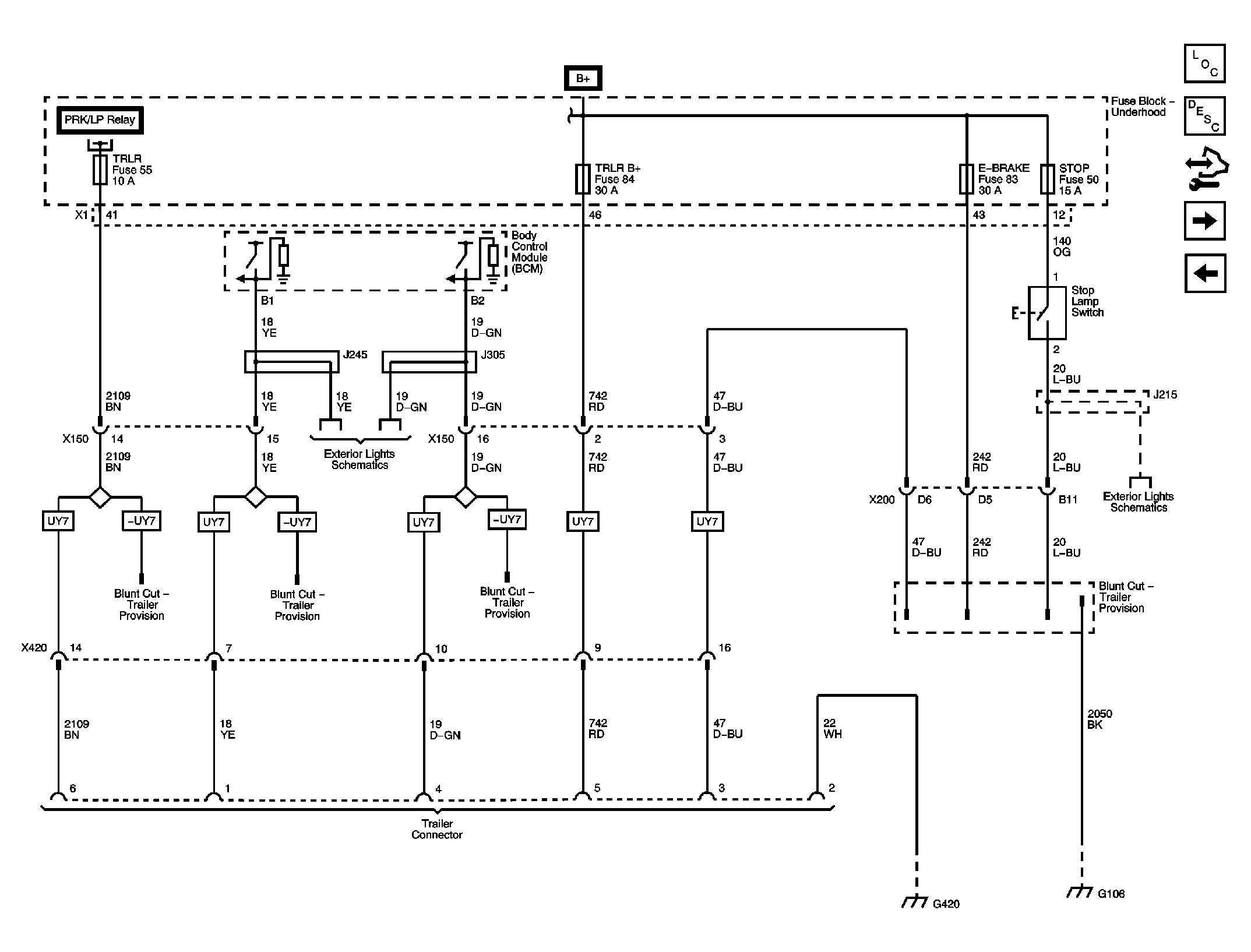

Fig 4: Trailer Wiring (Truck with UY7) Schematic 1 of 2

Courtesy of GENERAL MOTORS CORP.

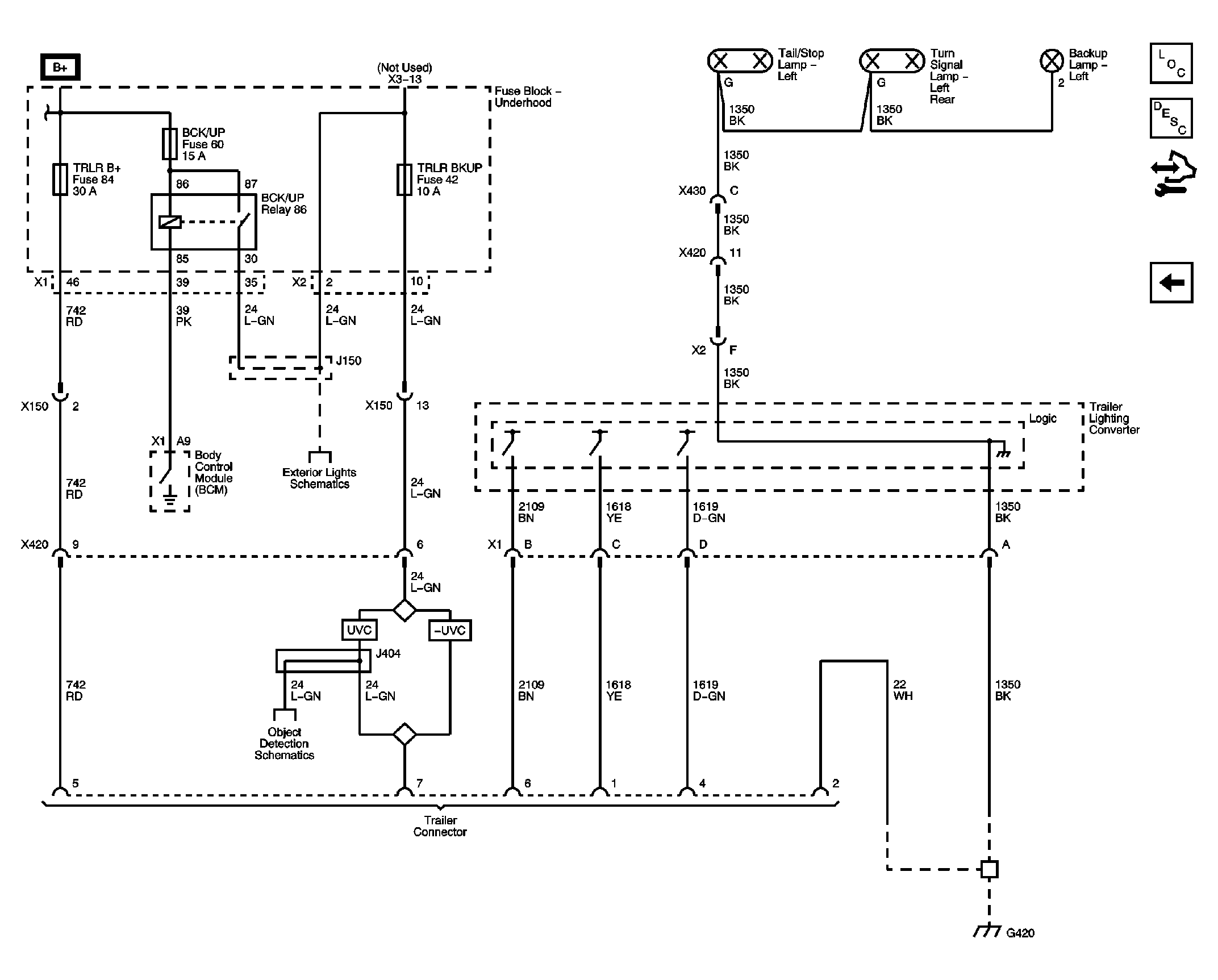

Fig 5: Trailer Wiring (Truck with UY7) Schematic 2 of 2

Courtesy of GENERAL MOTORS CORP.
