Power Moding Schematics

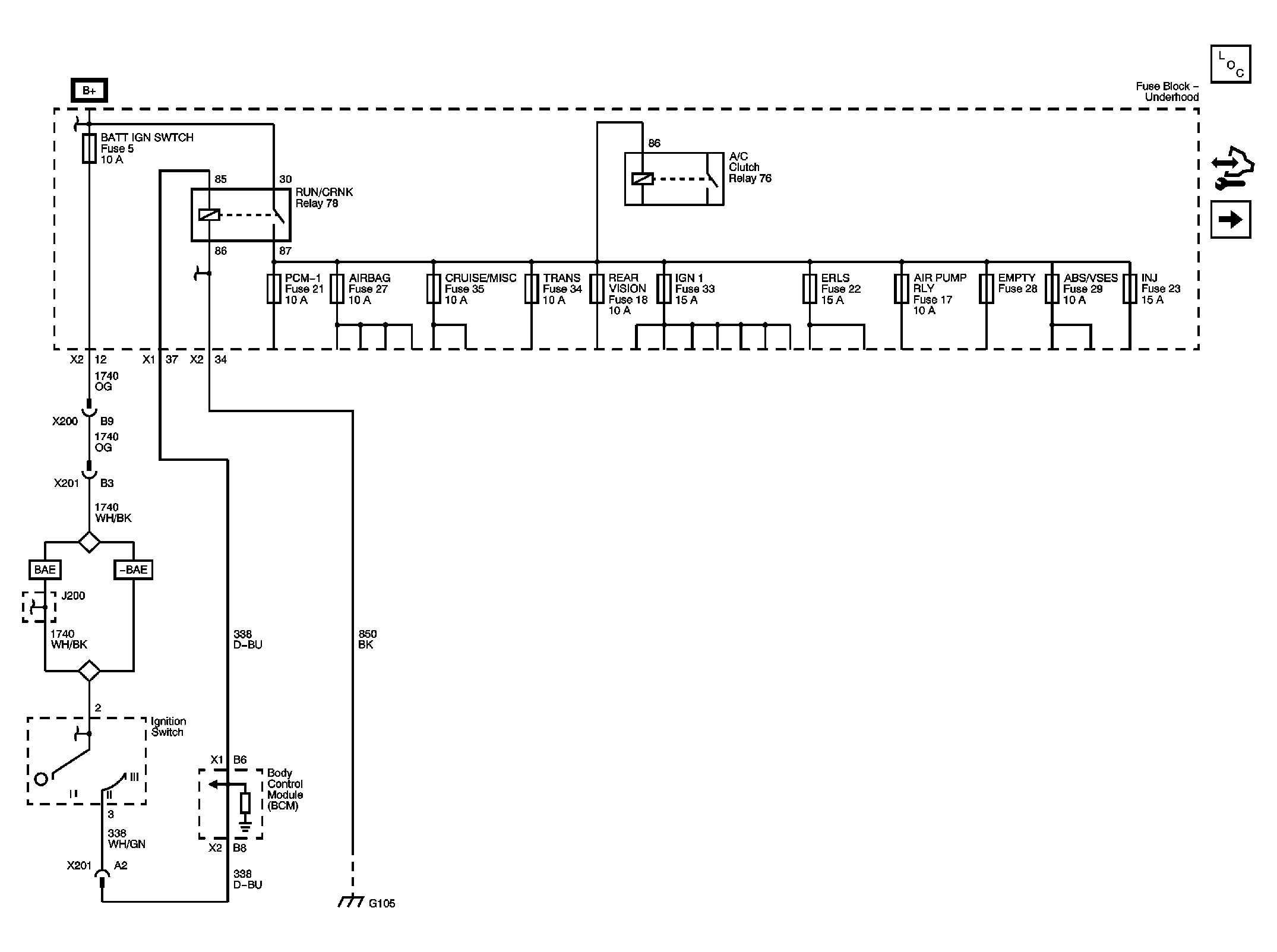

Fig 1: RUN/CRNK Relay Schematic
GM2240871Courtesy of GENERAL MOTORS CORP.

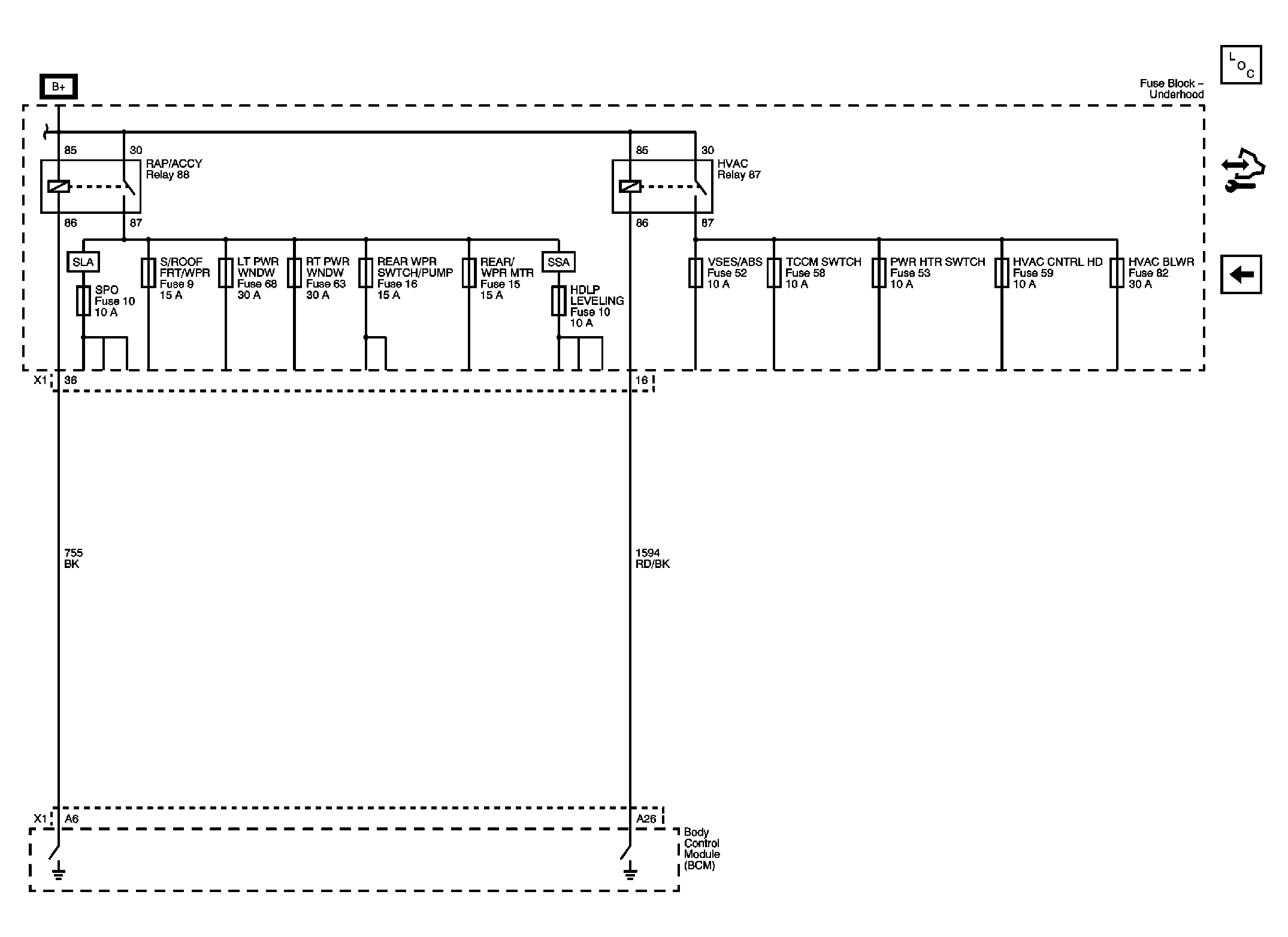

Fig 2: RAP/ACCY and HVAC Relays Schematic
GM2080561Courtesy of GENERAL MOTORS CORP.
