Remote Function Schematics

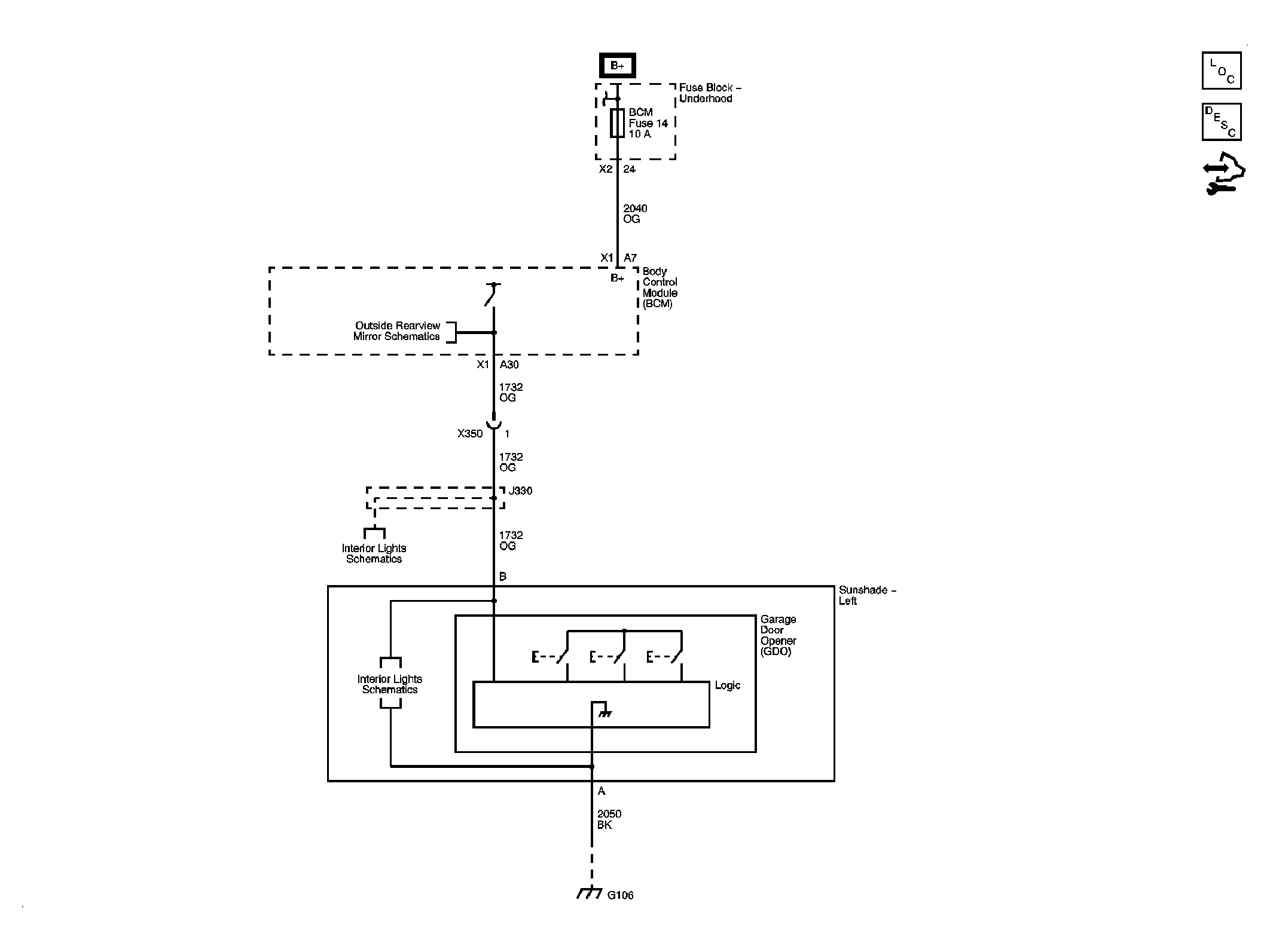

Fig 1: Garage Door Opener Schematic
GM2080418Courtesy of GENERAL MOTORS CORP.
