Transfer Case Control Schematics

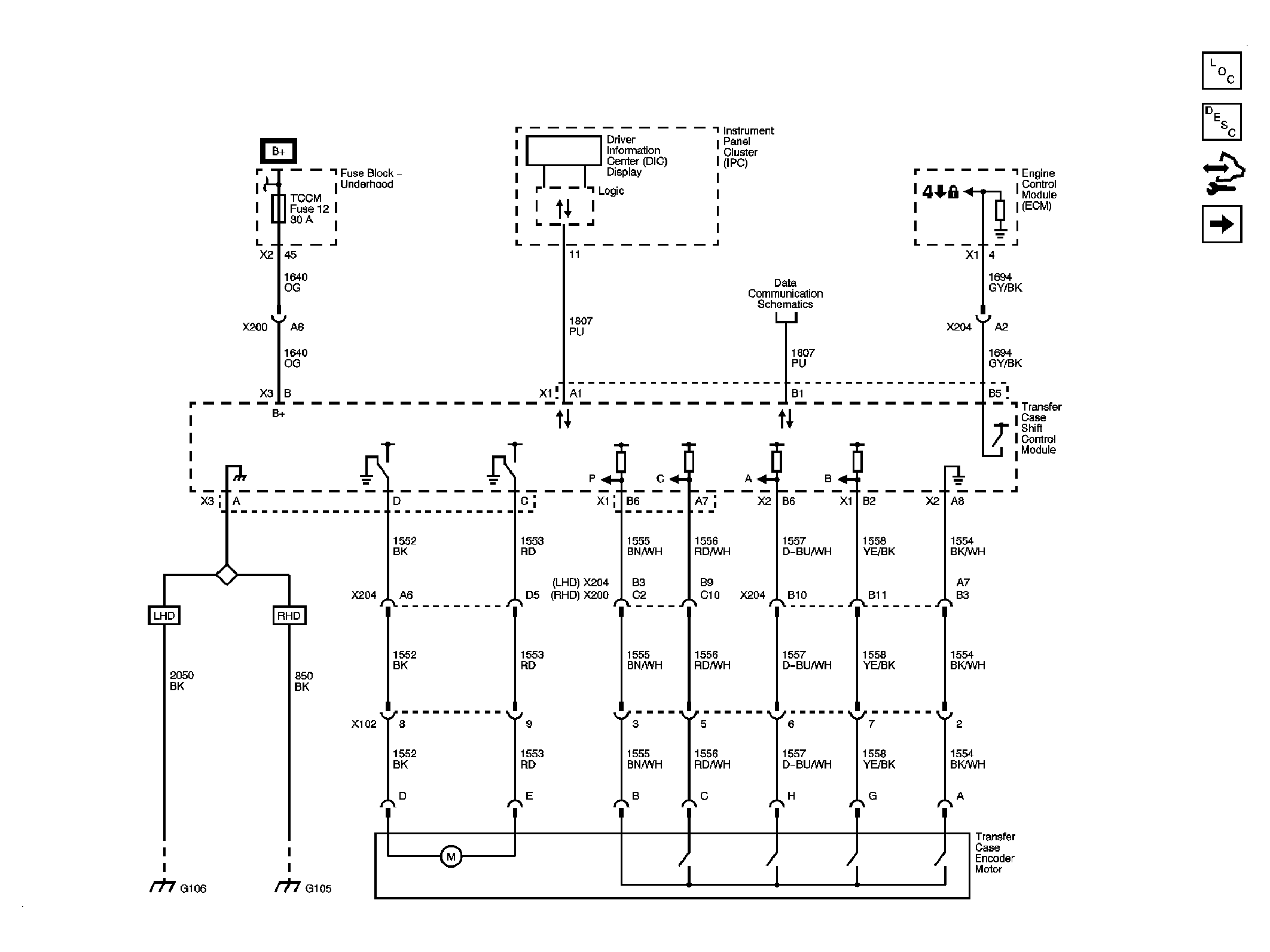

Fig 1: Power, Ground, Serial Data, and Front Axle Control Schematic

GM2080209

Courtesy of GENERAL MOTORS CORP.

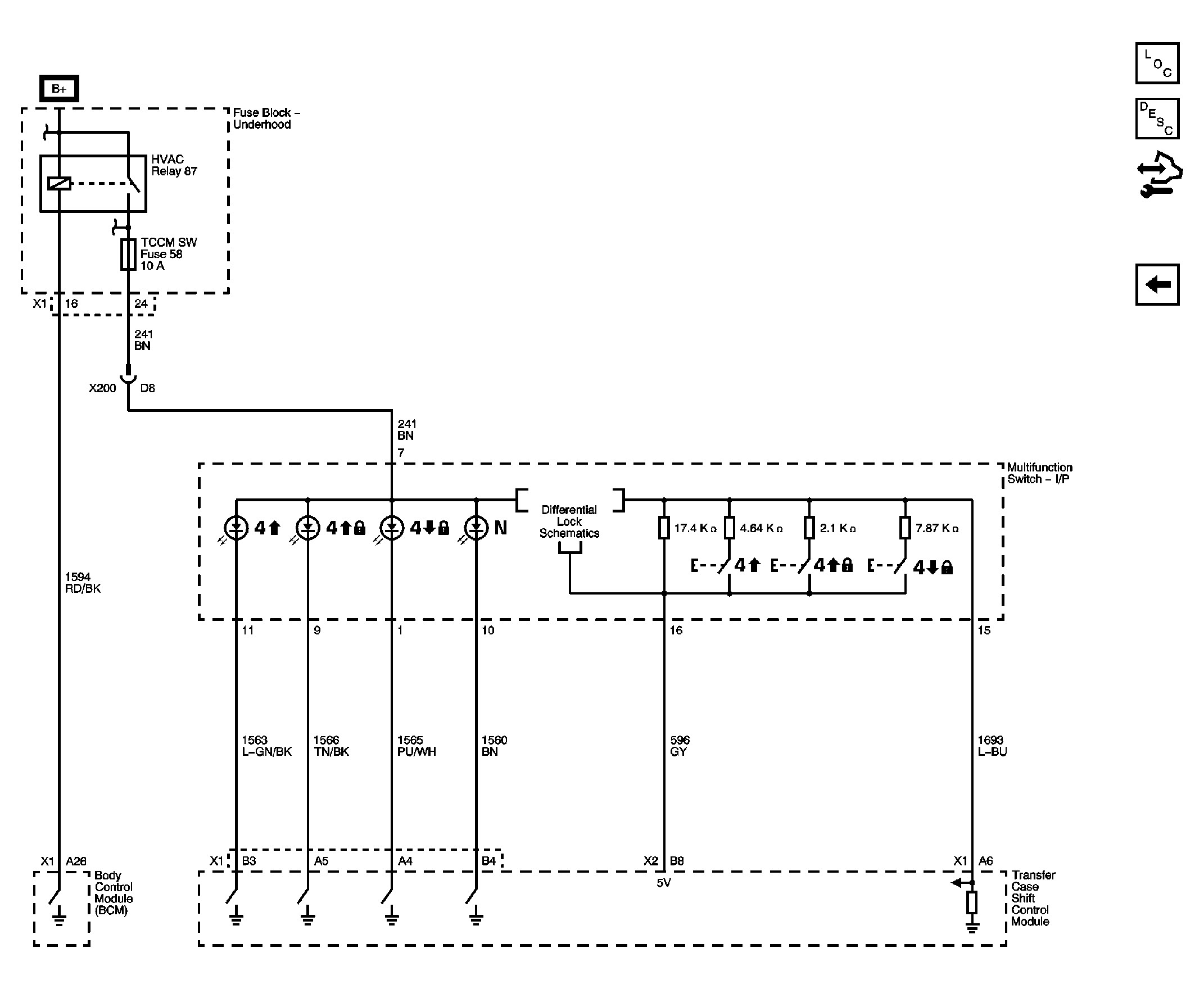

Fig 2: Shift Controls Schematic

GM2080214

Courtesy of GENERAL MOTORS CORP.
