Automatic Transmission - Introduction
>>
Schematic and Routing Diagrams
>>
Automatic Transmission Controls Schematics
Automatic Transmission Controls Schematics

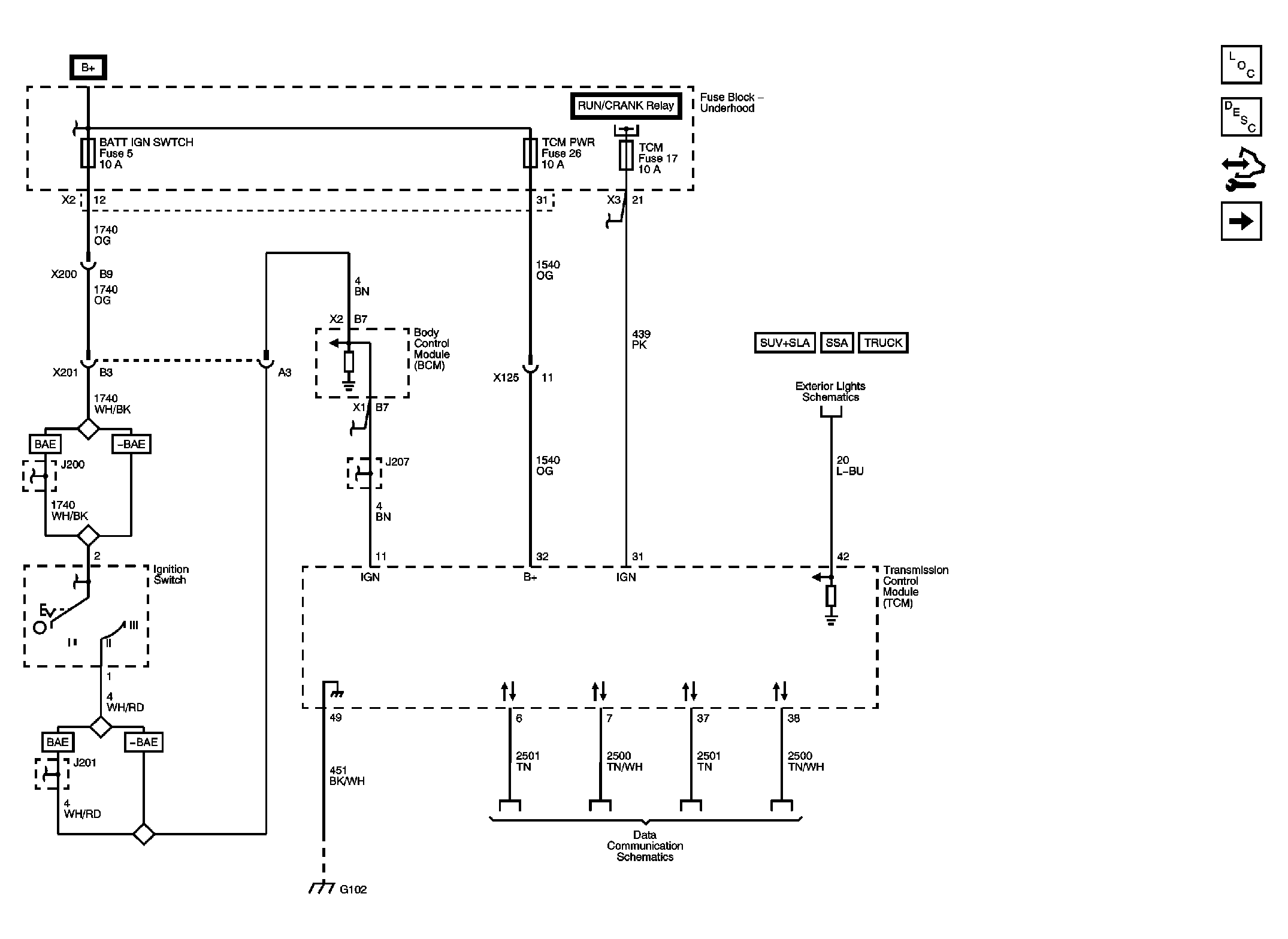

Fig 1: Module Power, Ground, and Serial Data Schematic
Courtesy of GENERAL MOTORS CORP.

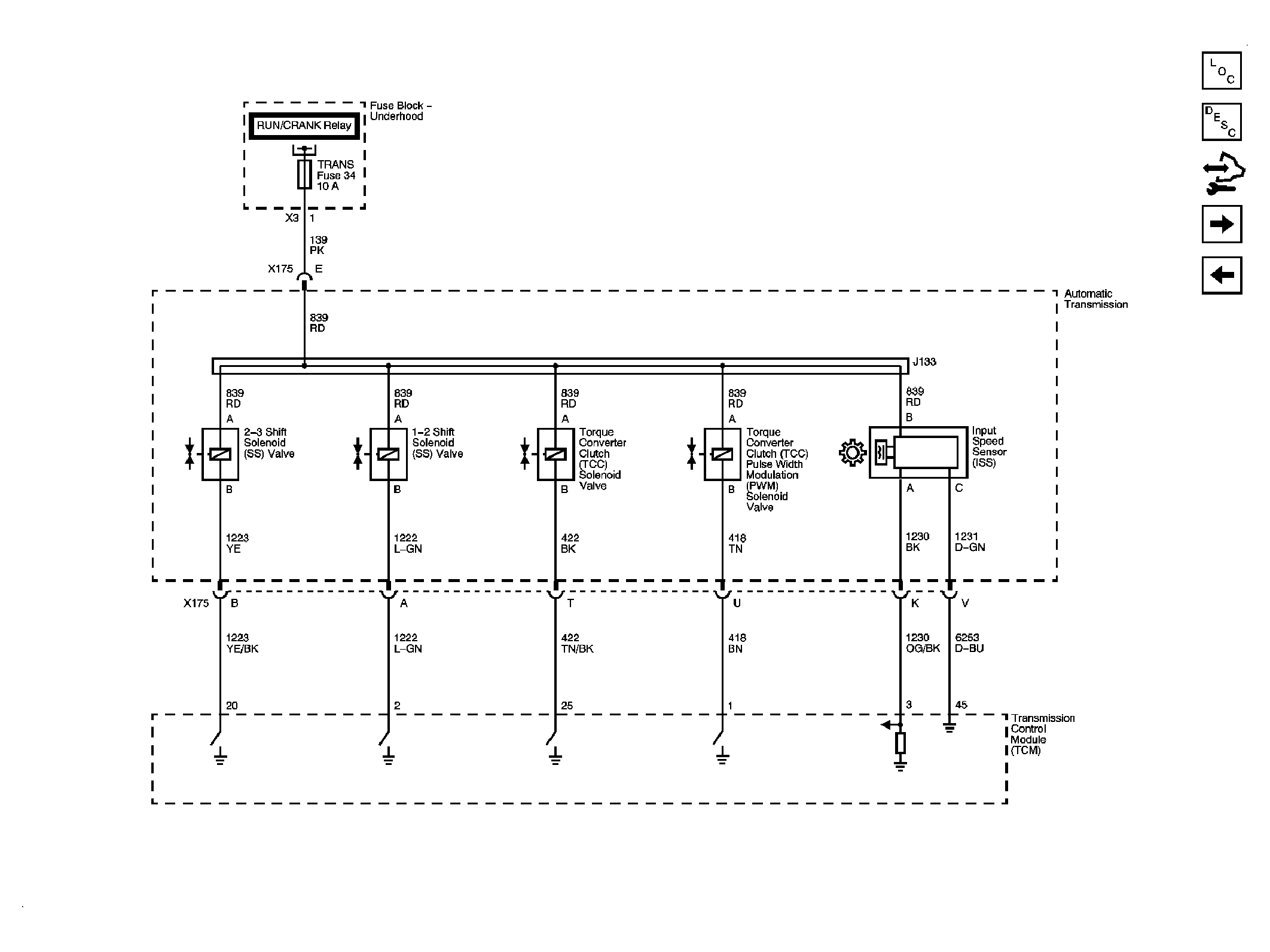

Fig 2: Shift Controls Schematic
Courtesy of GENERAL MOTORS CORP.

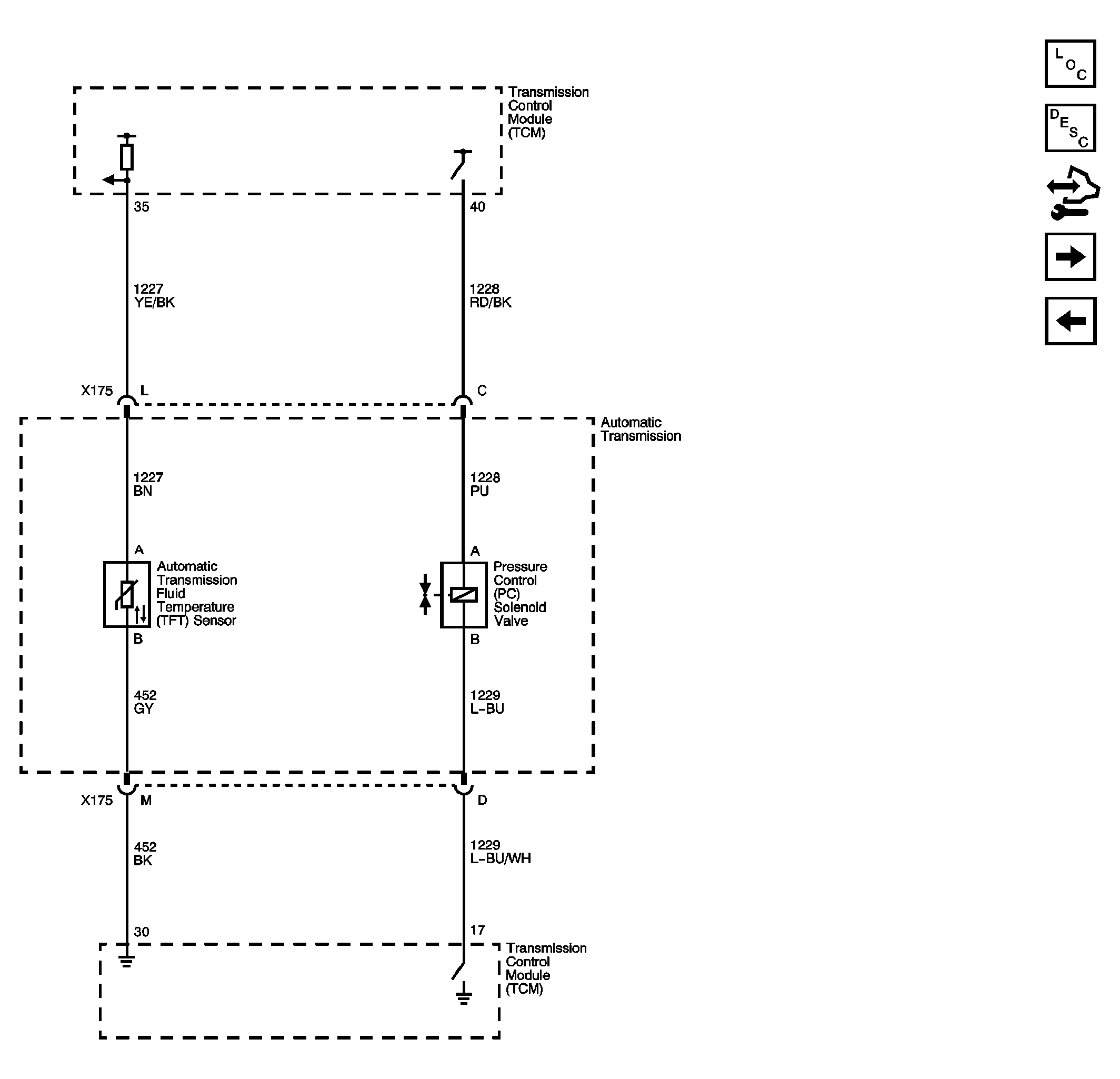

Fig 3: Pressure and Temperature Controls Schematic
Courtesy of GENERAL MOTORS CORP.

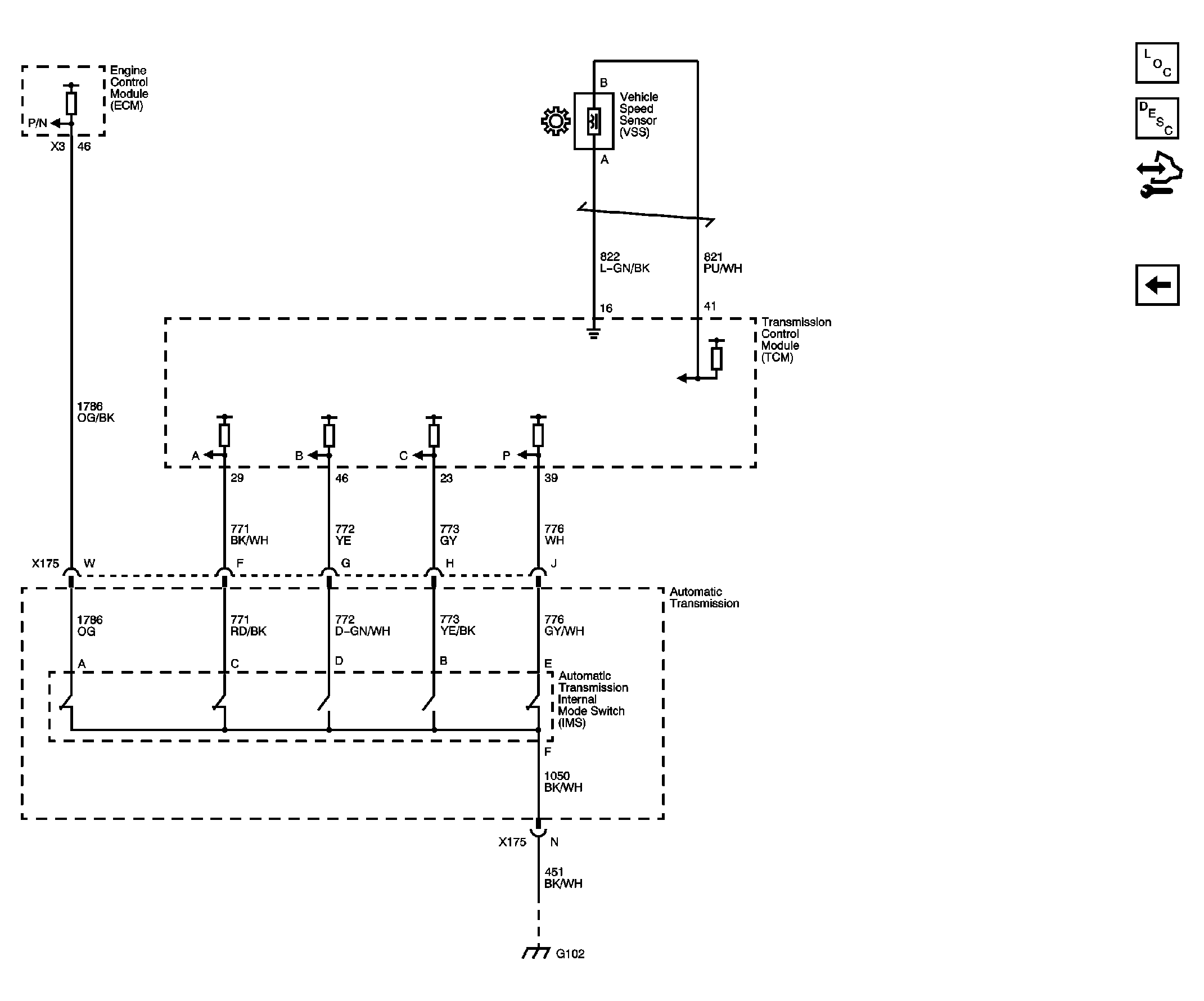

Fig 4: Internal Mode Switch and Vehicle Speed Sensor Schematic
Courtesy of GENERAL MOTORS CORP.
