Starting and Charging Schematics

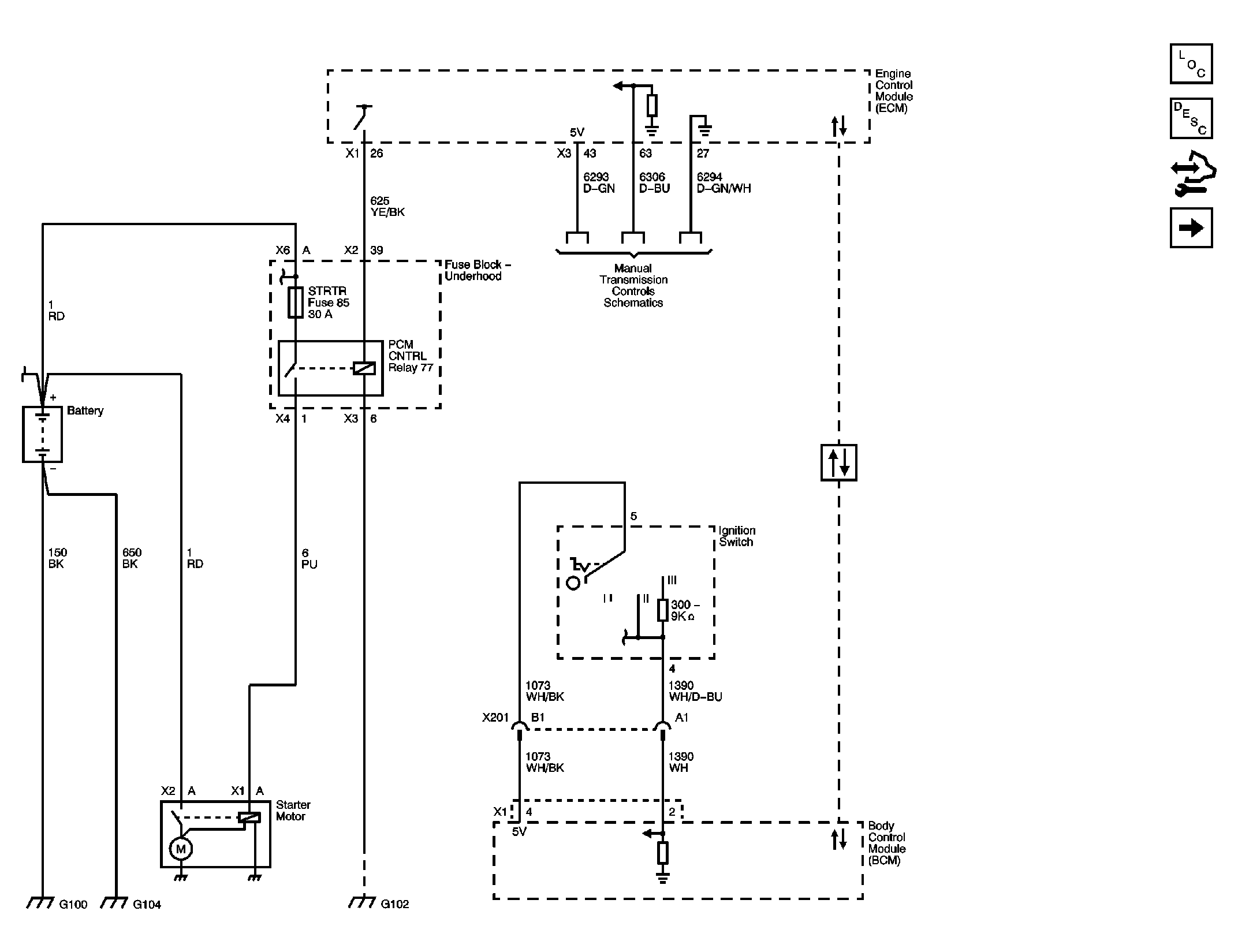

Fig 1: Starting (MA5) Schematic
GM2080241Courtesy of GENERAL MOTORS CORP.

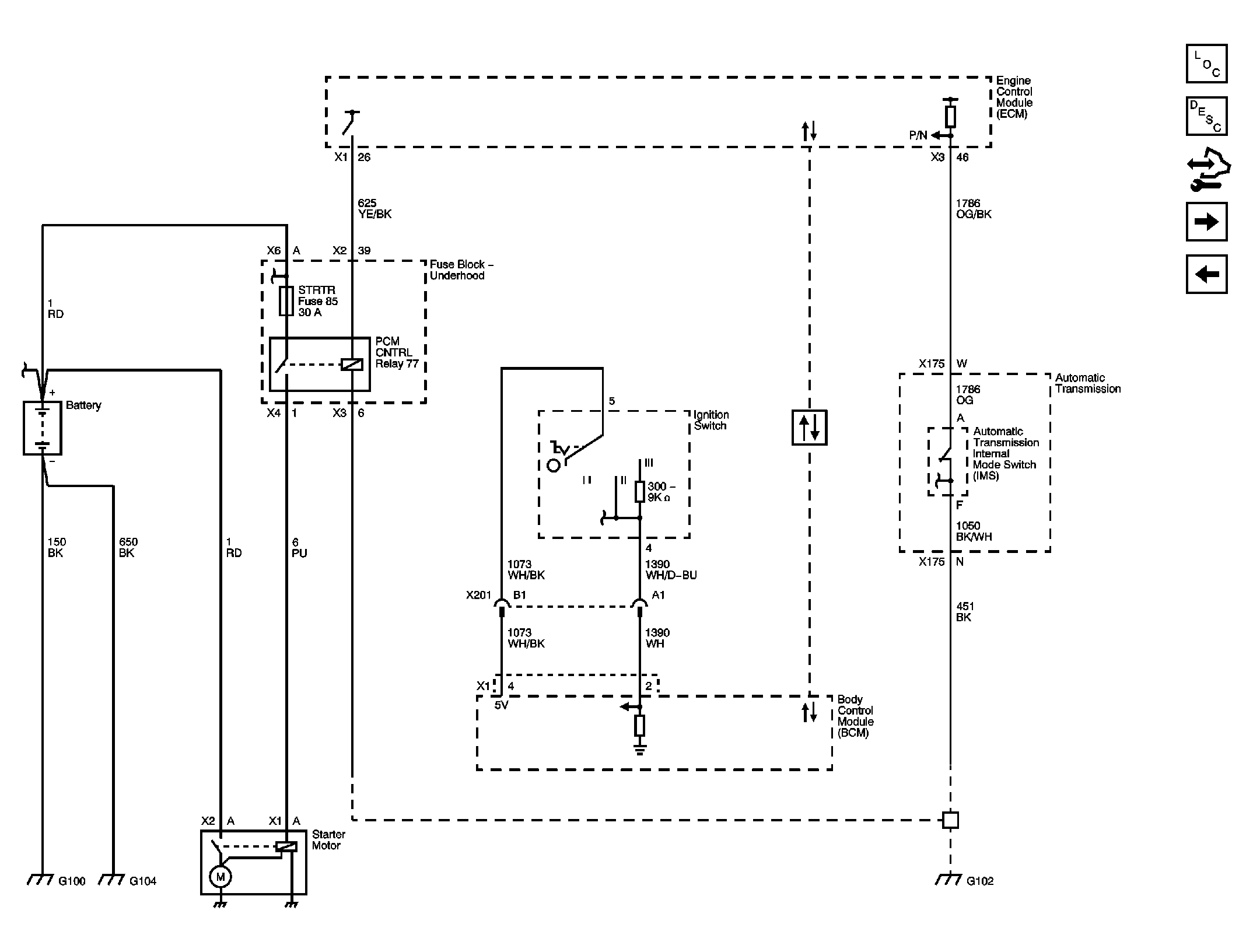

Fig 2: Starting (M30) Schematic
GM2080269Courtesy of GENERAL MOTORS CORP.

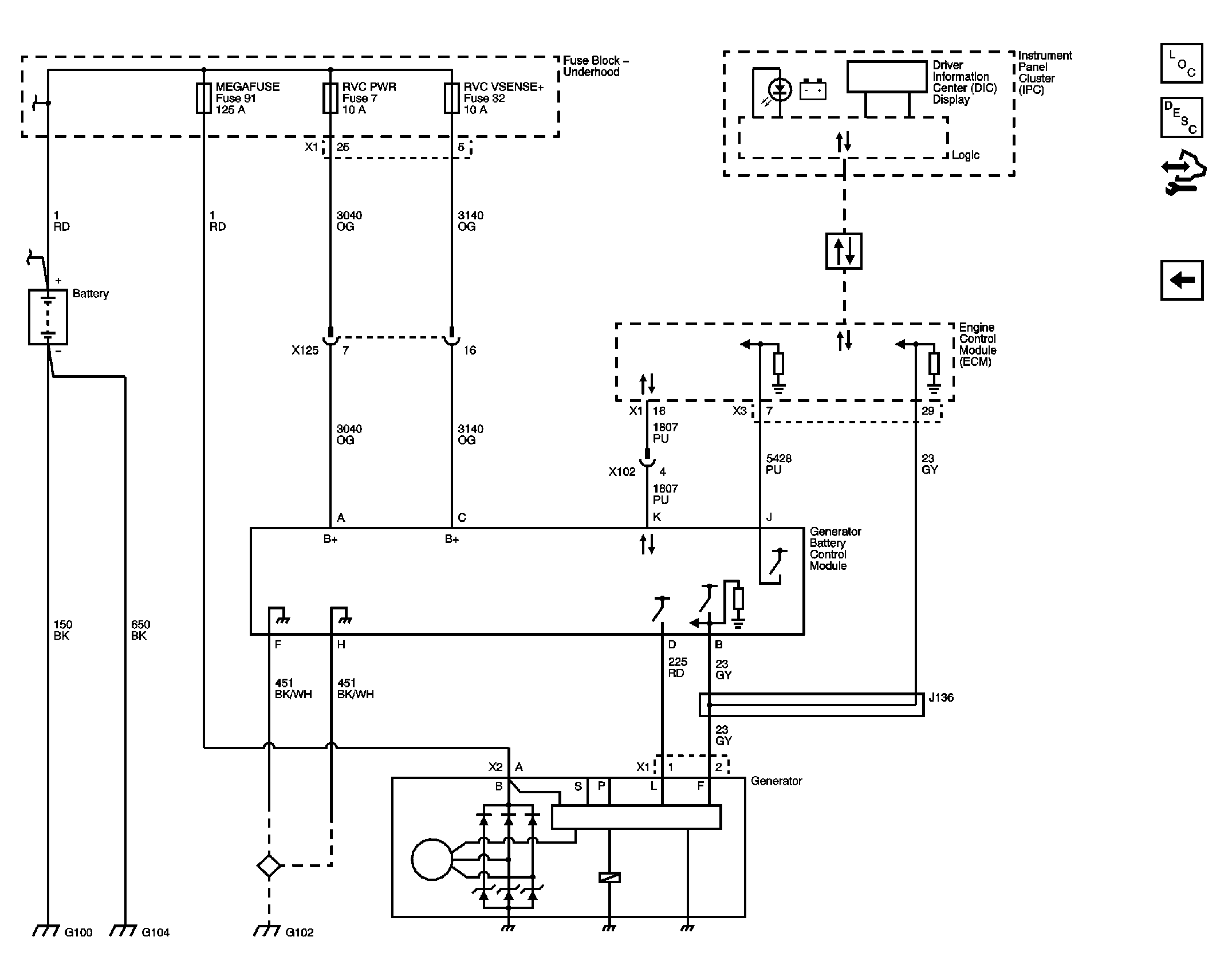

Fig 3: Charging Schematic
GM2080284Courtesy of GENERAL MOTORS CORP.
