Harness Routing Views

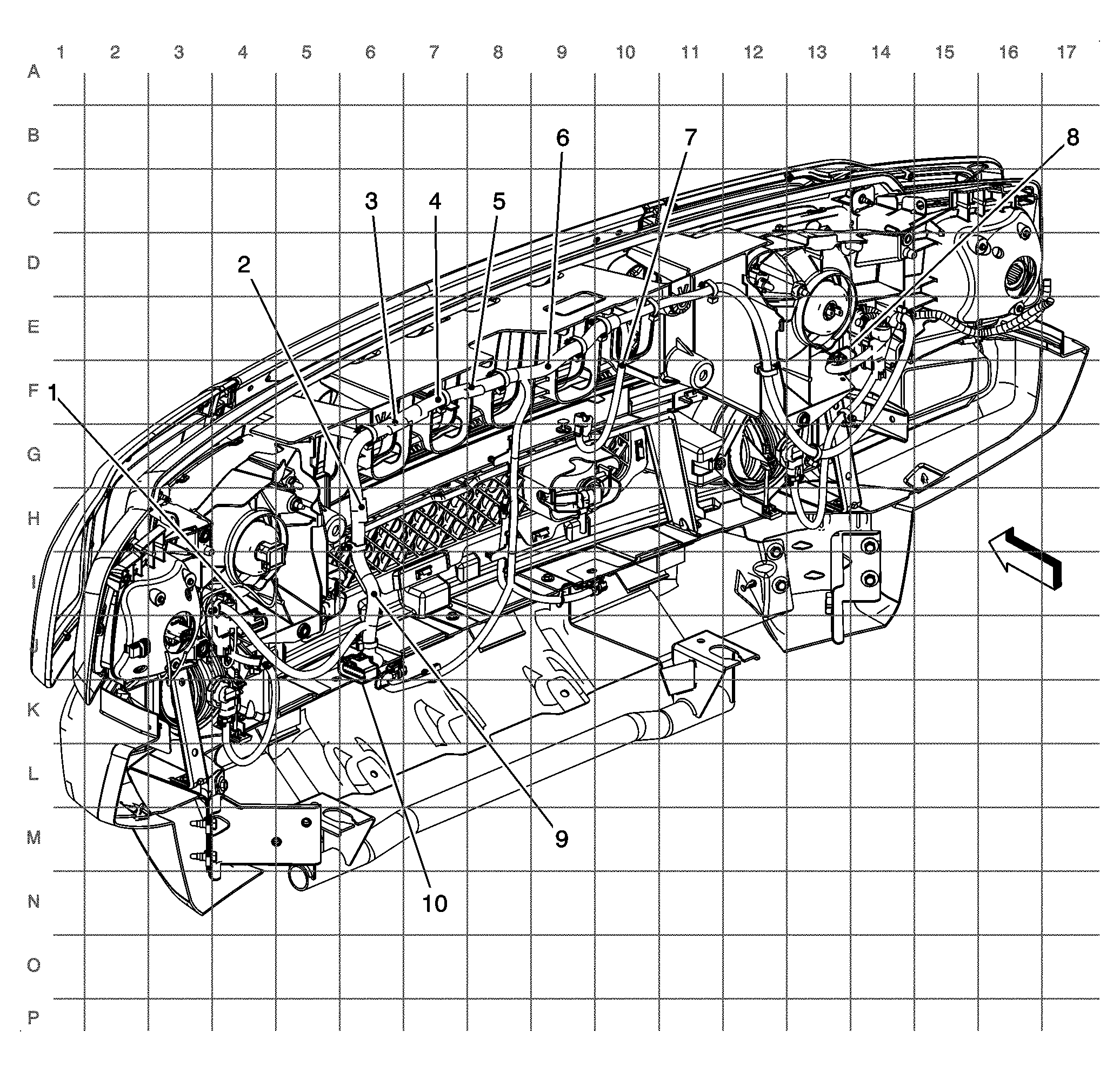

Fig 1: Forward Lamp Harness
GM1913001Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X116
2 J185
3 J109
4 J112
5 J120
6 J121
7 J122
8 X117
9 J134
10 X115

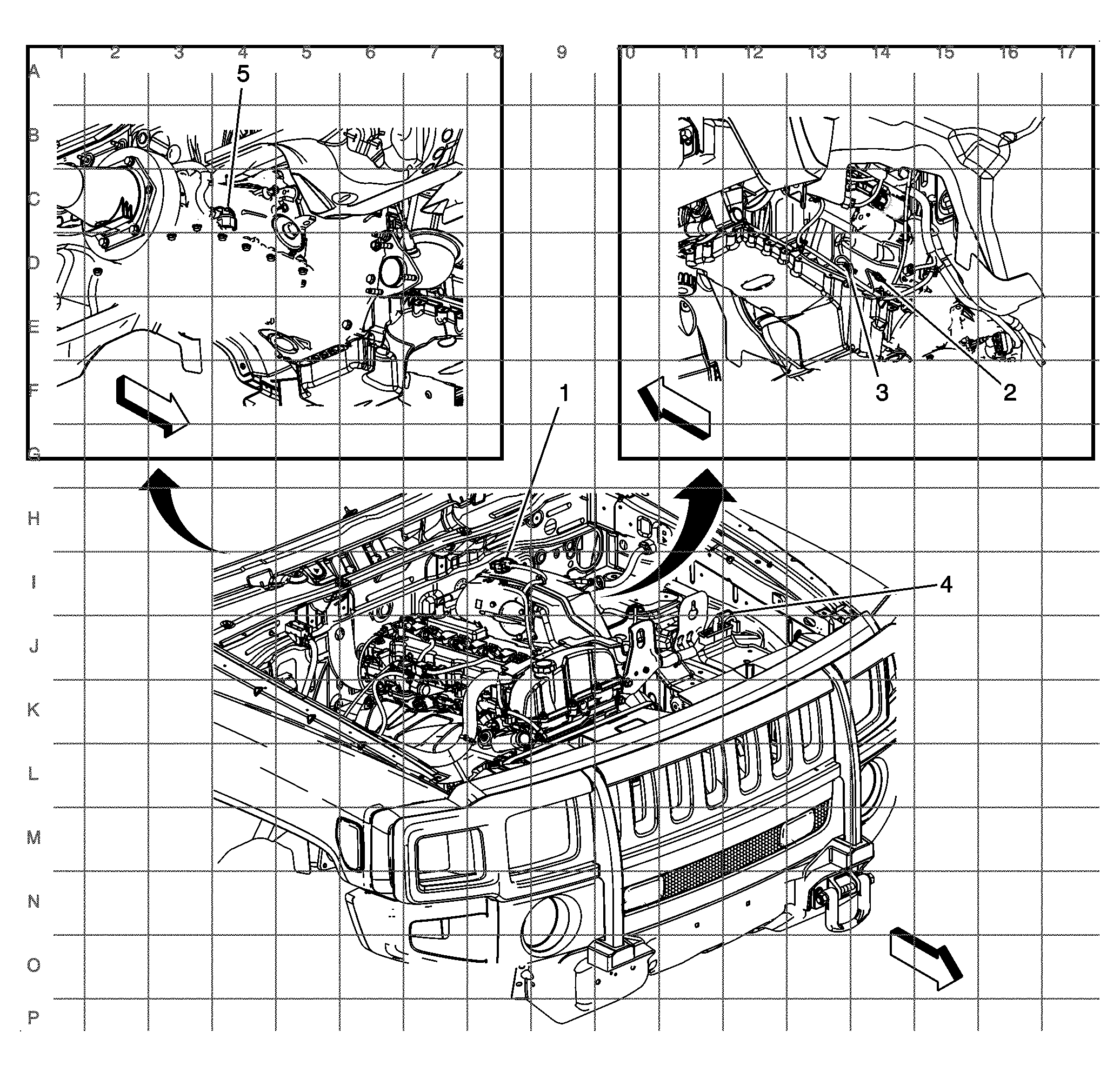

Fig 2: Engine Harness LLR
GM1915896Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X101
2 G102
3 G103
4 X125
5 X175

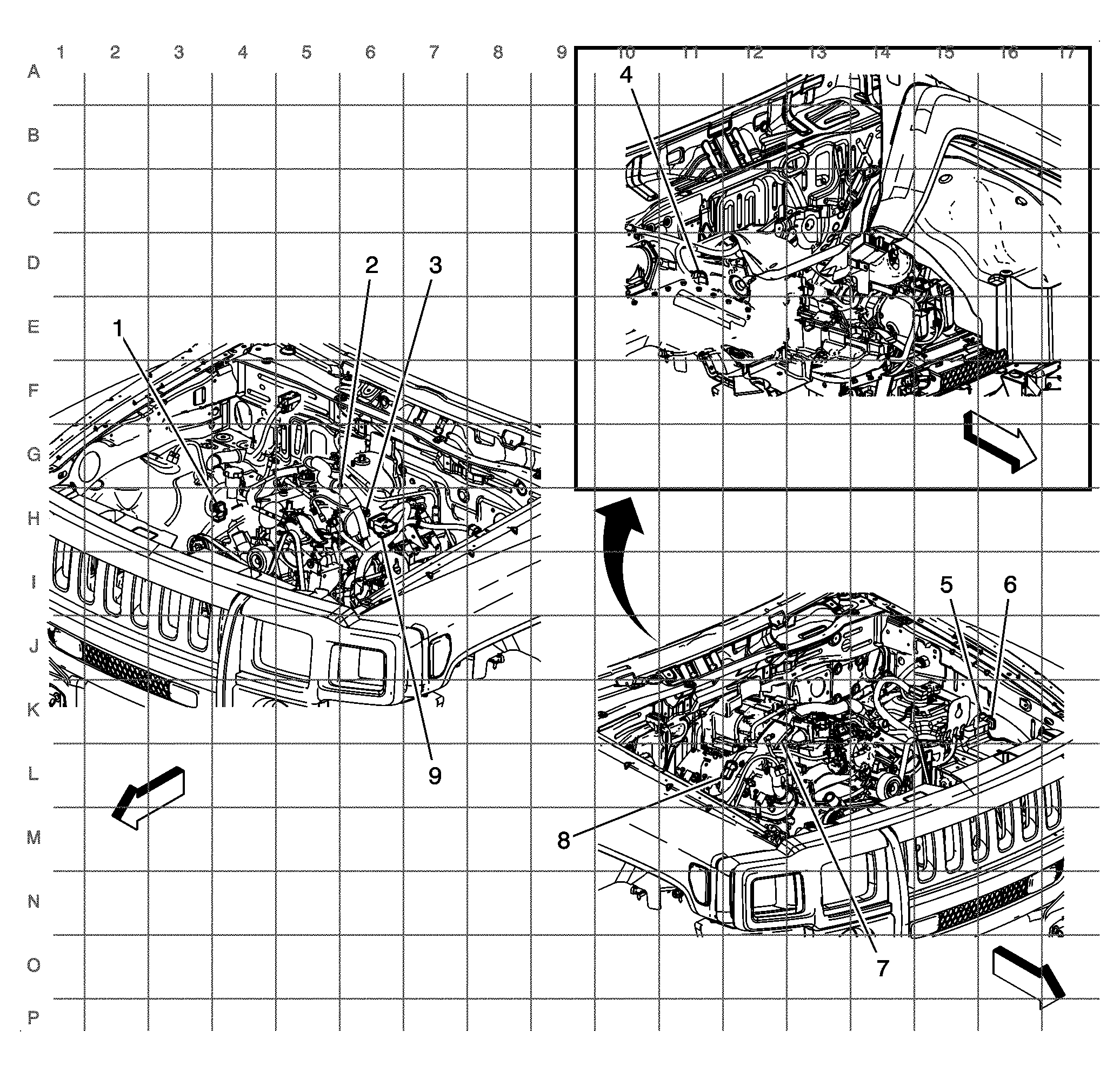

Fig 3: Engine Harness Routing (LH8)
GM1922180Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X102
2 J136
3 J111
4 X175
5 X125
6 X130
7 J113
8 X113
9 X111
Fig 4: Body Harness - Engine Compartment
GM1916013Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J110
2 J141
3 J142
4 G105
5 J143
6 X115
7 X125
8 X130
9 X150
10 X155
11 G106

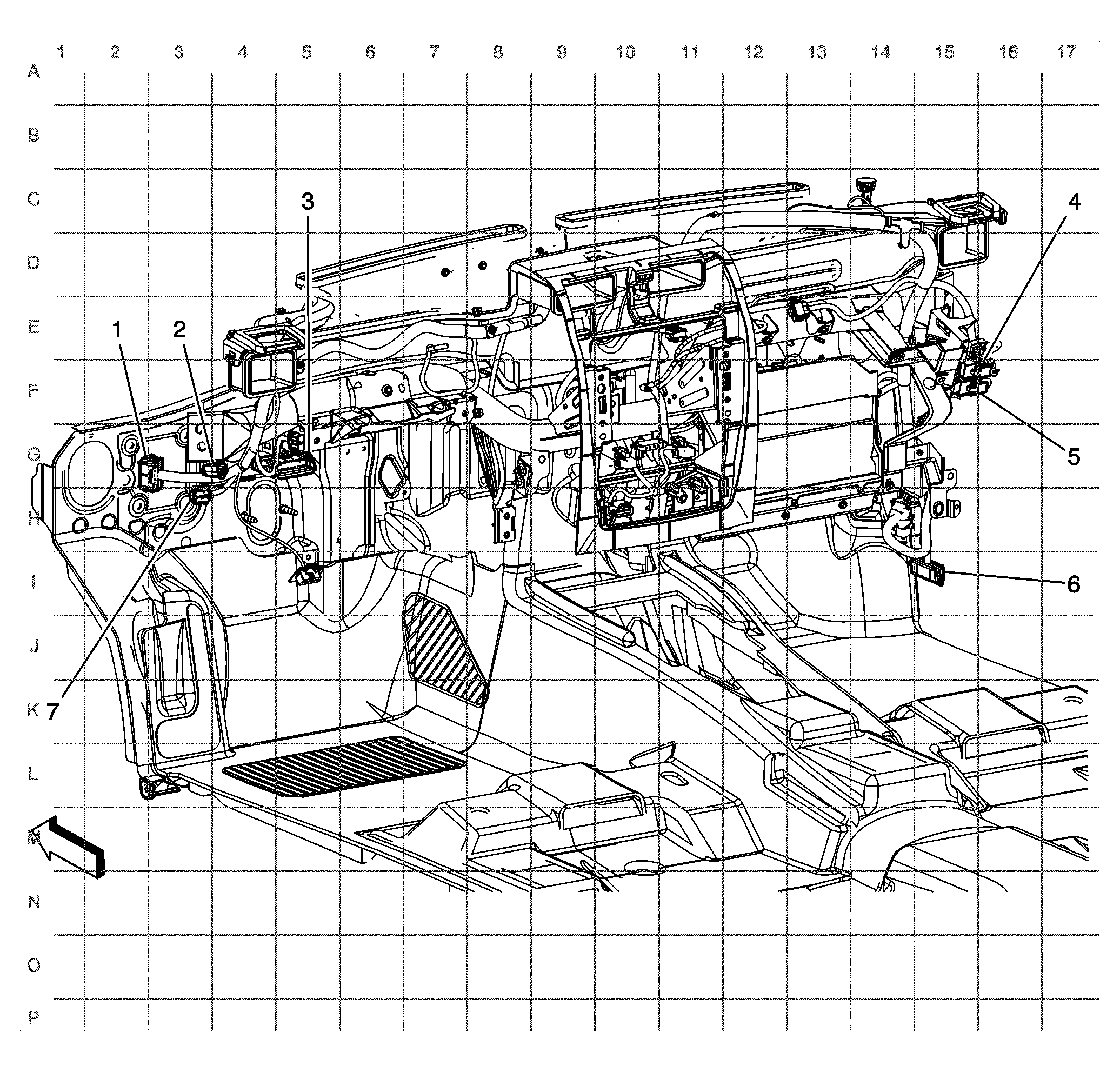

Fig 5: I/P Harness Routing (LHD)
GM1916656Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X200
2 X207
3 X201
4 X203
5 X205
6 X204
7 X208

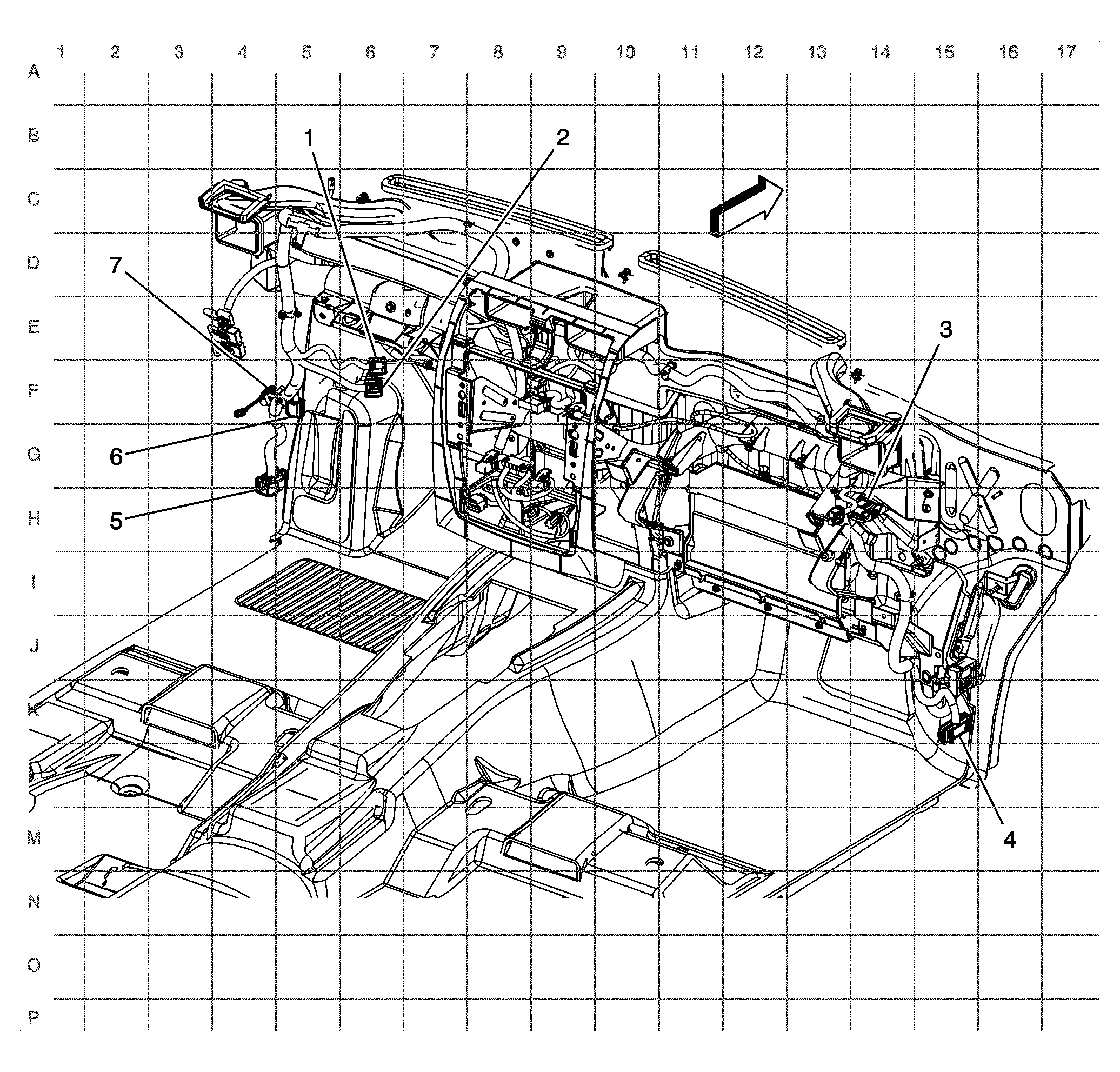

Fig 6: I/P Harness Routing (RHD)
GM1916717Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X203
2 X205
3 X201
4 X204
5 X200
6 X207
7 X208

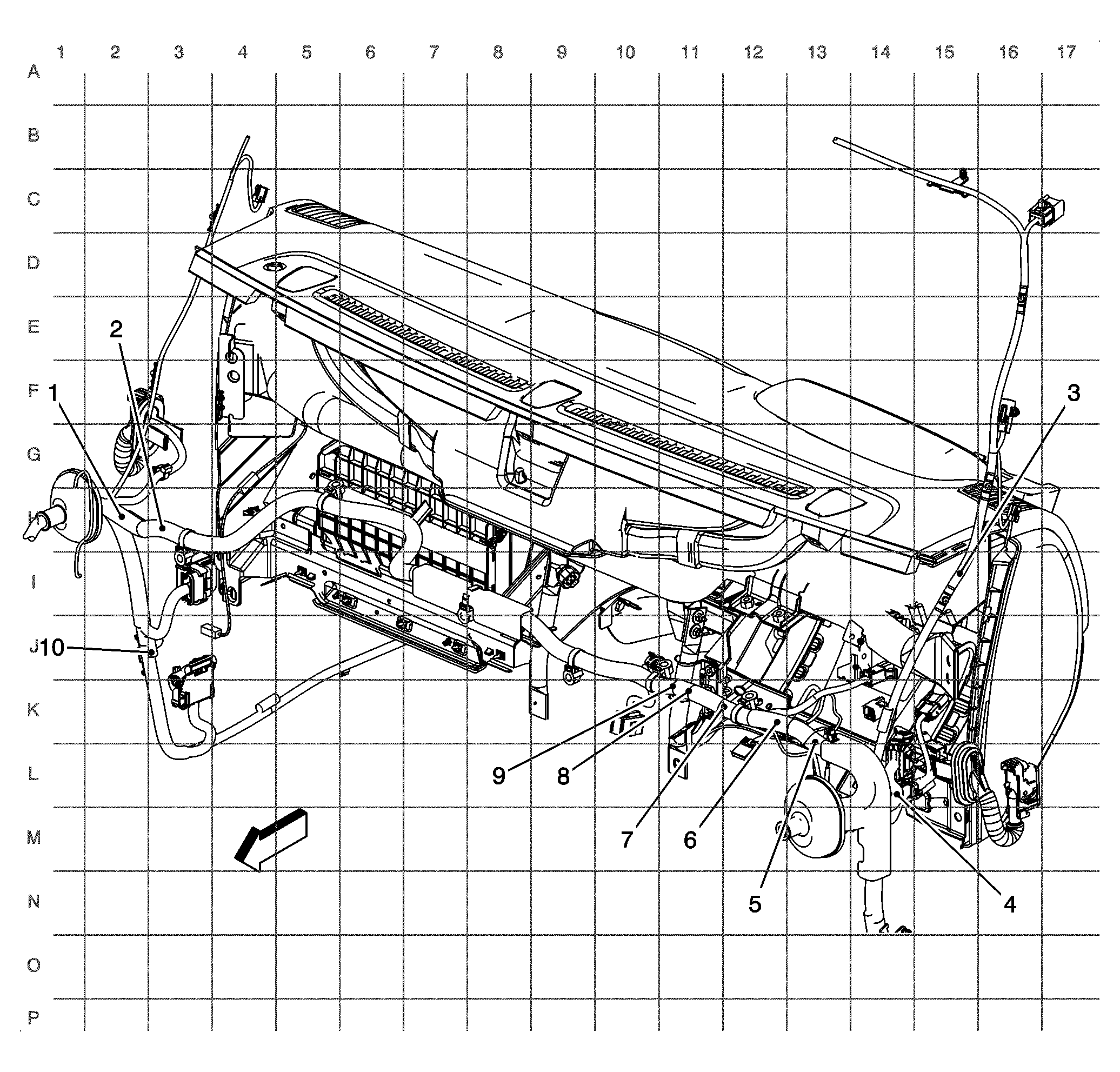

Fig 7: I/P Harness Splices
GM1916800Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J245
2 J244
3 J210
4 J224
5 J294
6 J295
7 J209
8 J213
9 J215
10 J292

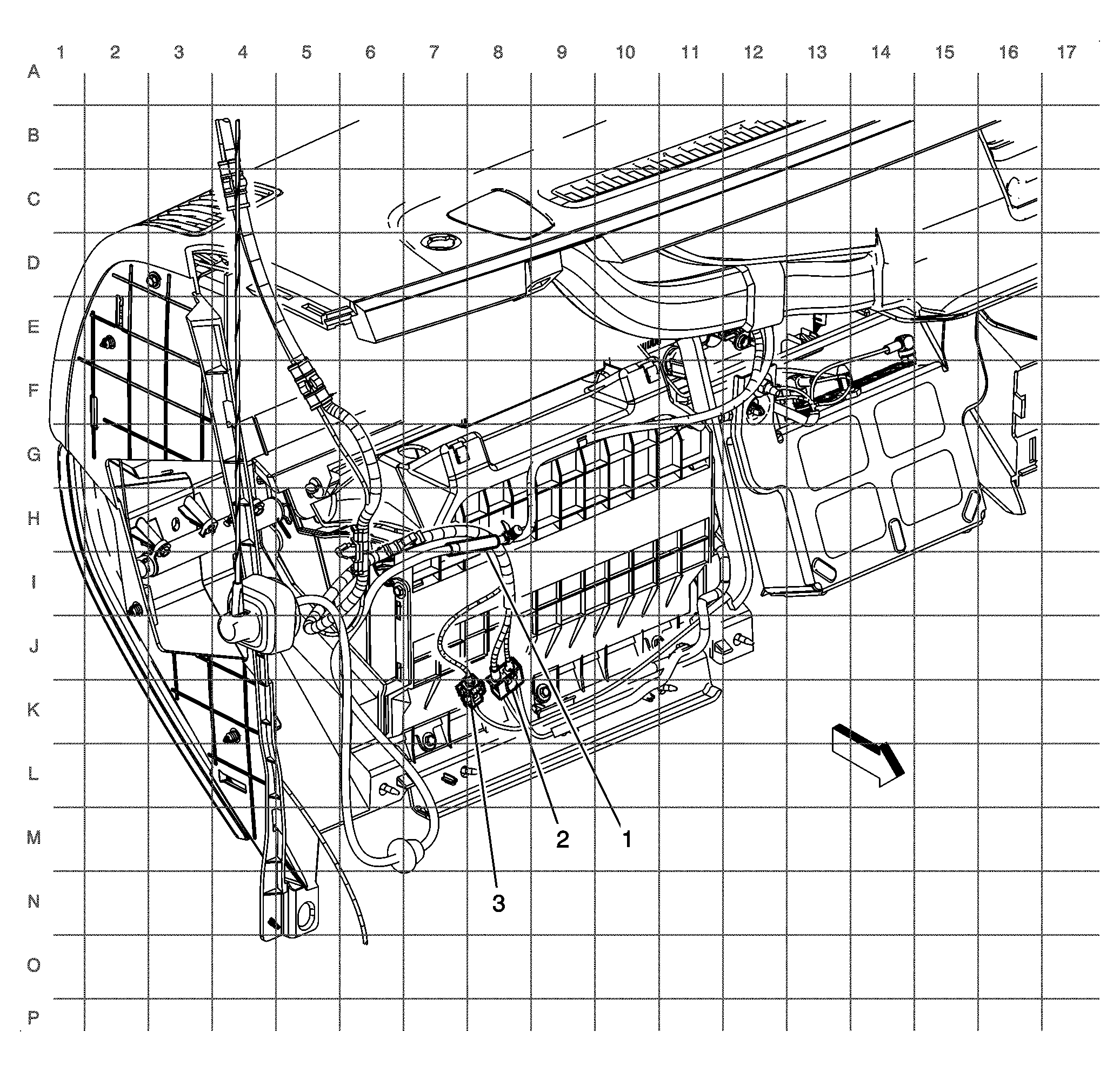

Fig 8: Antenna Harness Routing
GM1919156Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X220
2 X222
3 X221

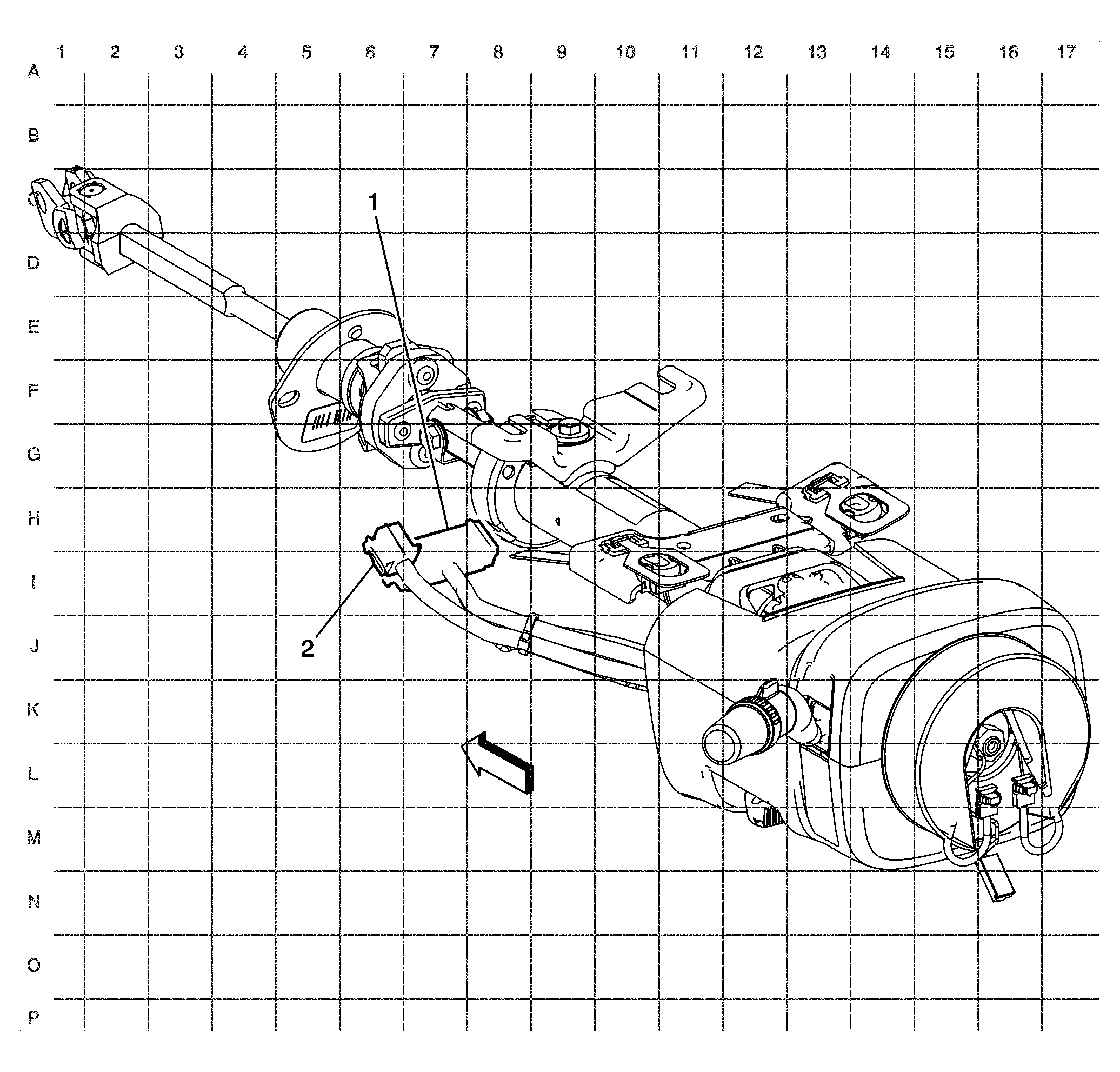

Fig 9: Steering Column Harness
GM1916820Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X201
2 X275

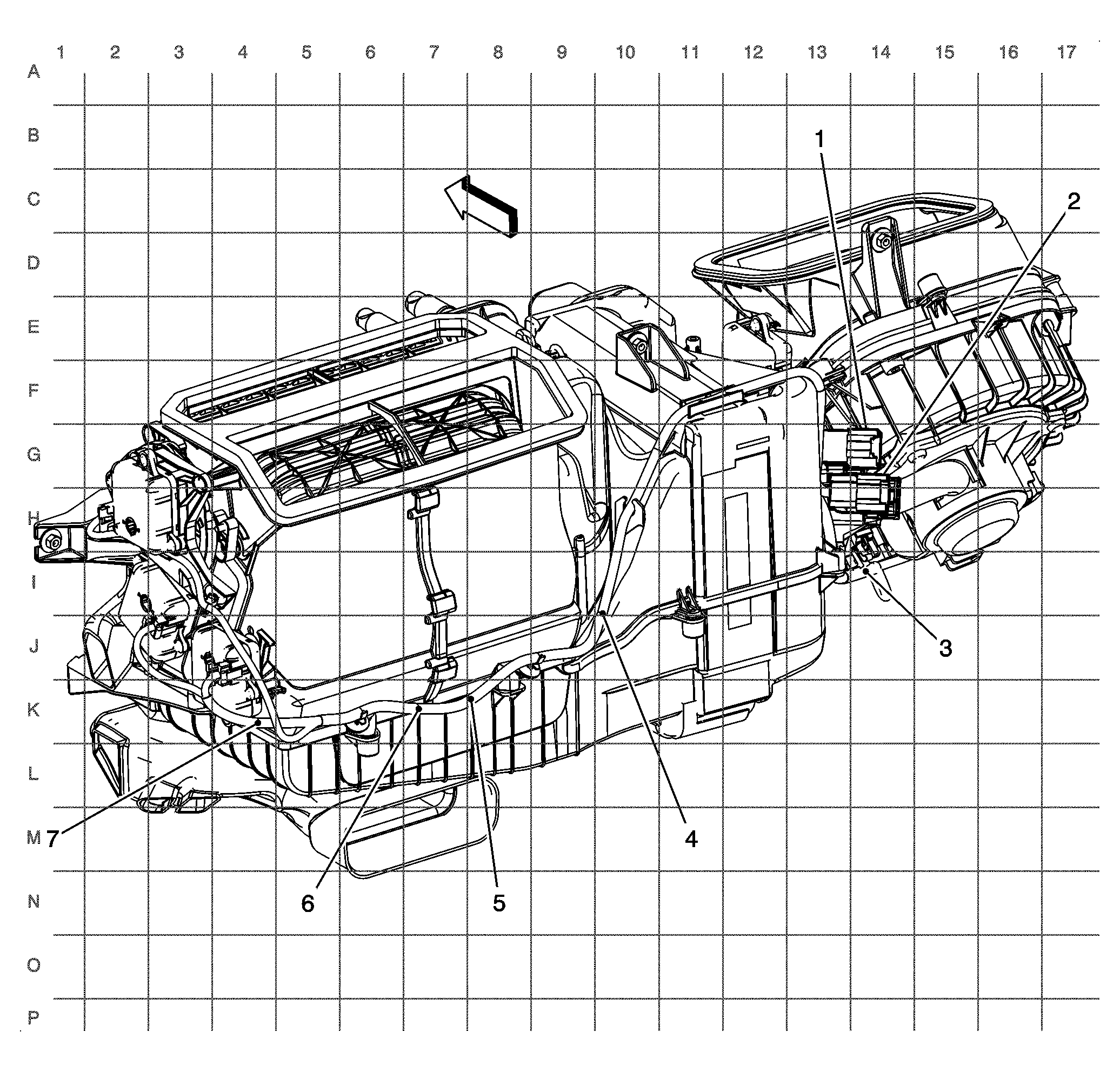

Fig 10: HVAC Harness Routing
GM1916834Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X203
2 X205
3 J220
4 J250
5 J240
6 J260
7 J230
Fig 11: Body Harness - Left (LHD)
GM1916857Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X330
2 X335 (CF5 or UE1)
3 X600
4 X275
5 G300
6 X307
7 X308
8 X380
Fig 12: Body Harness Right (LHD)
GM1917011Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X350
2 X500
3 X204
4 X315
5 X320
6 X370
7 G320

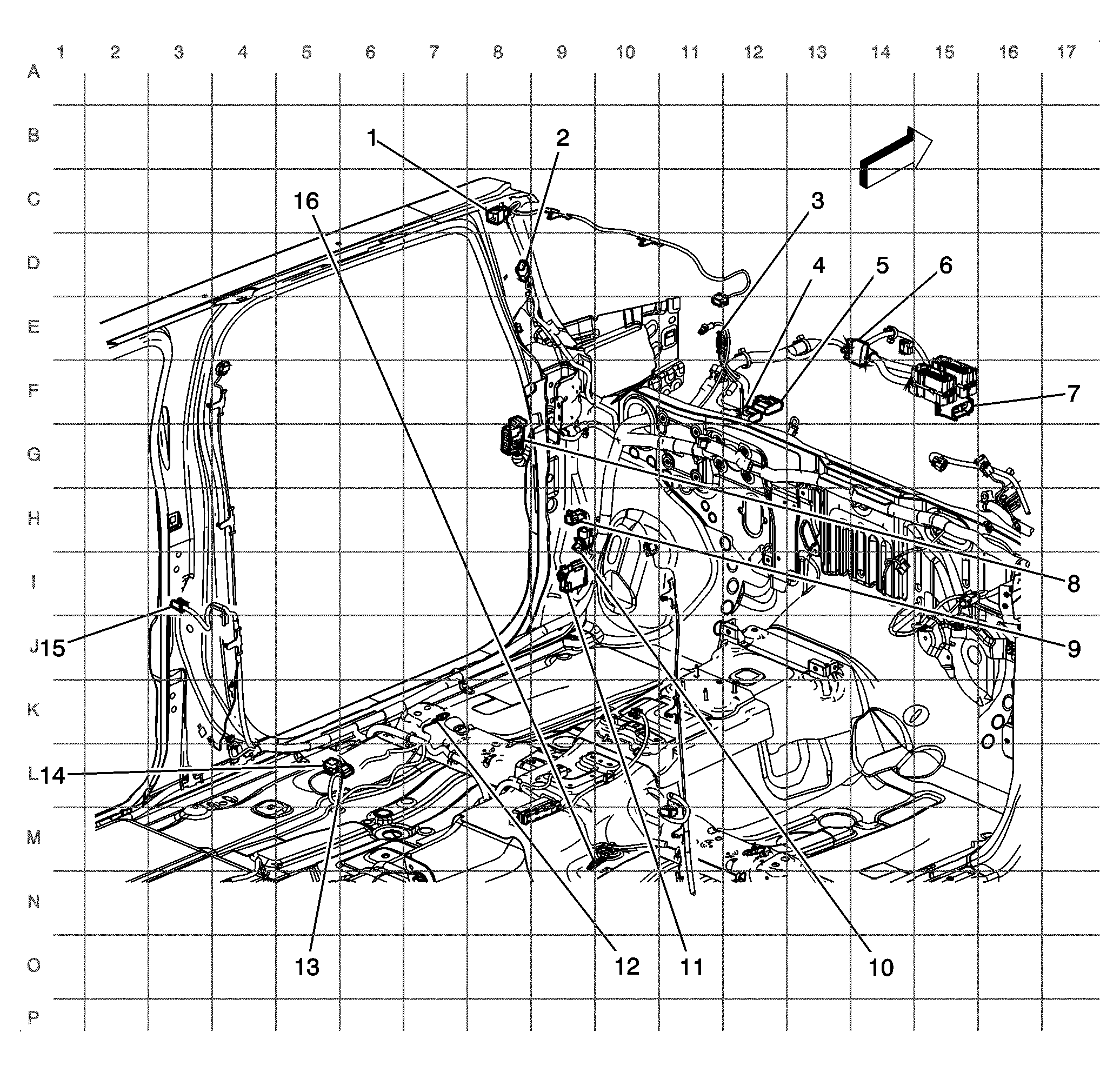

Fig 13: Body Harness Routing - Left (RHD)
GM1917130Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X330
2 X335
3 G106
4 X155
5 X150
6 X125
7 X115
8 X500
9 X208
10 X207
11 X200
12 G320
13 X315
14 X320
15 X370
16 G310

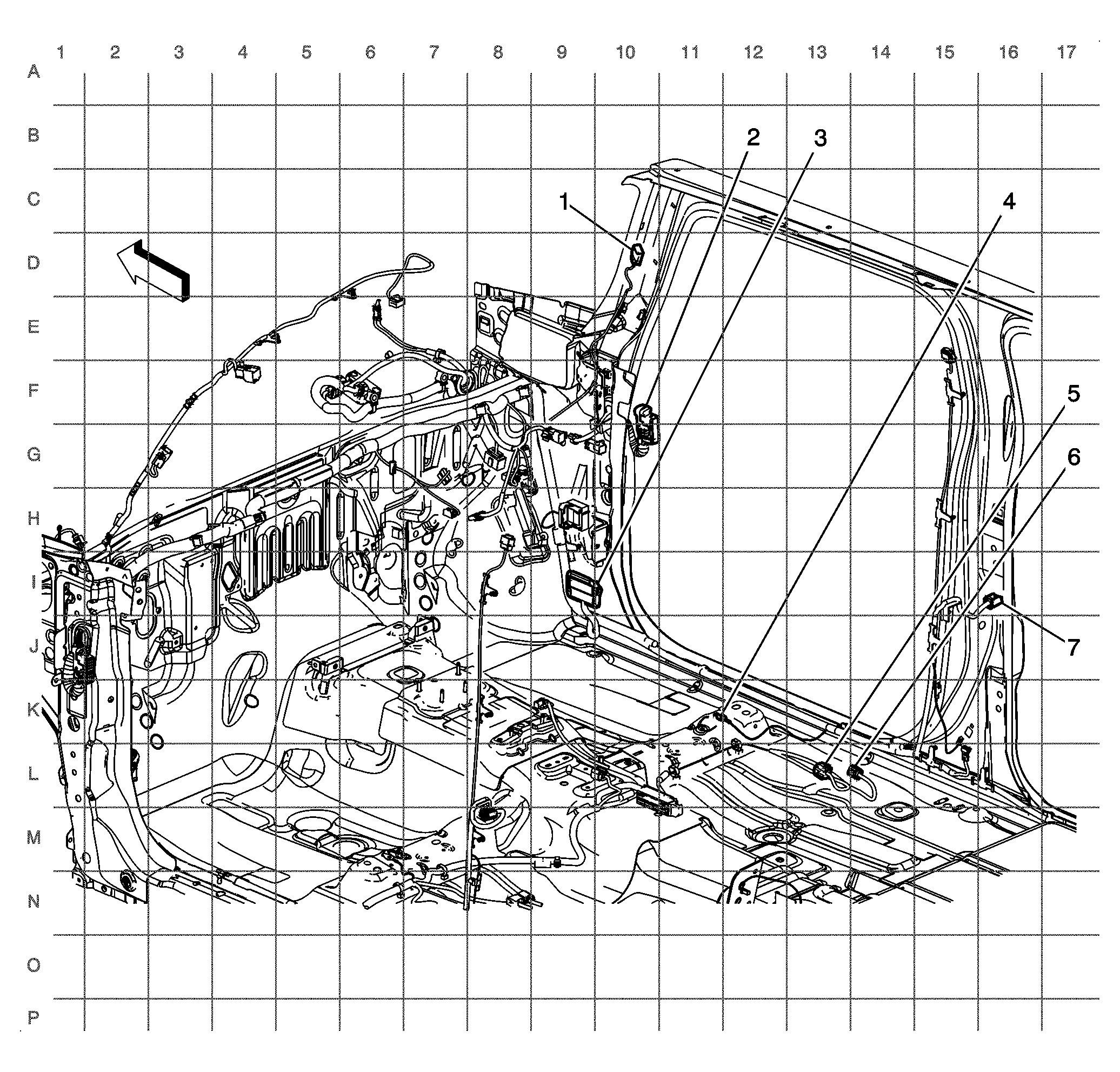

Fig 14: Body Harness - Right (RHD)
GM1917413Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X330
2 X600
3 X204
4 G300
5 X307
6 X308
7 X380
Fig 15: Body Harness Rear
GM1917563Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X410
2 G345 and G350
3 G340
4 X430
5 X450

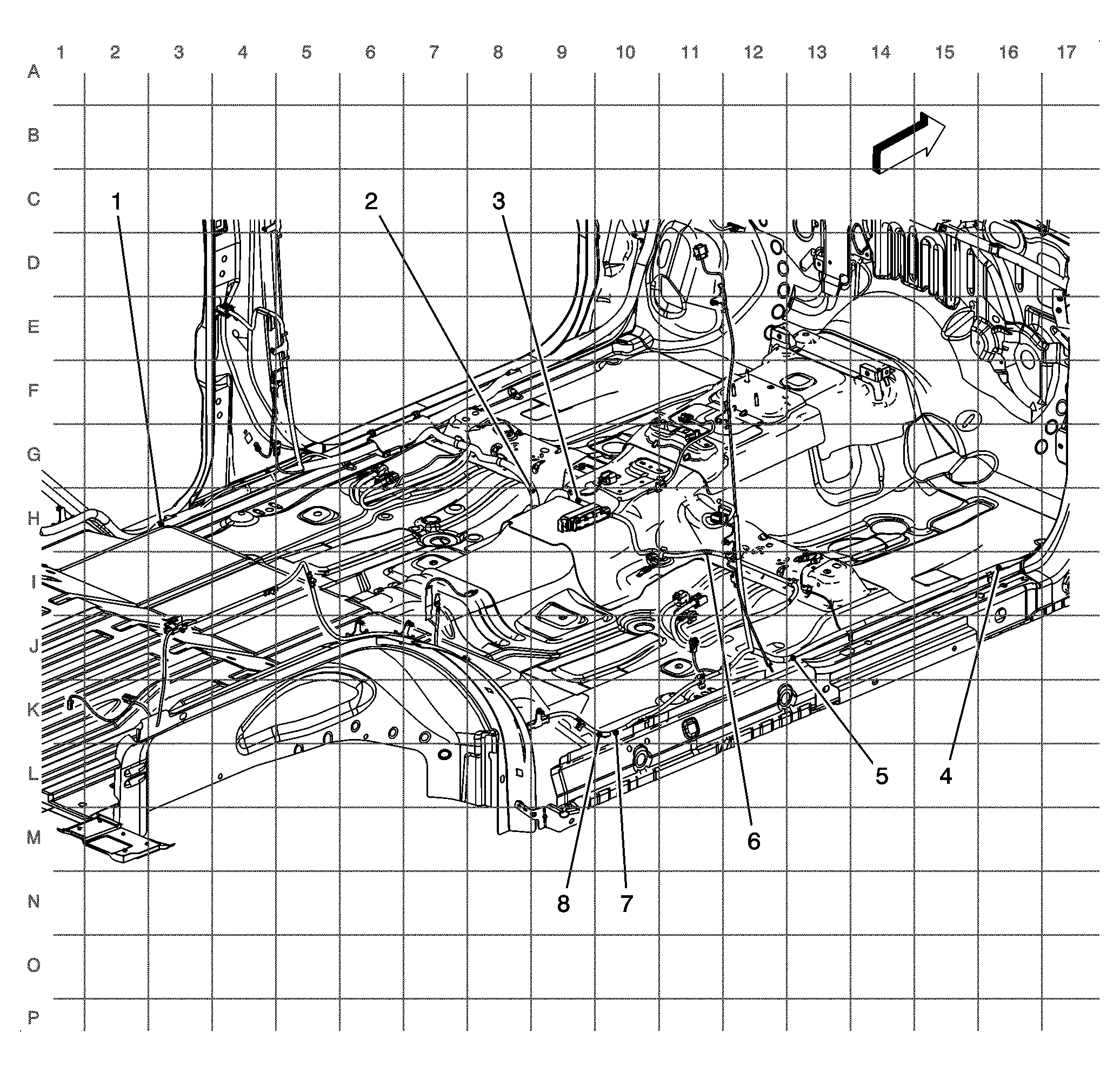

Fig 16: Body Harness Routing - Splices
GM1917729Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J314
2 J344
3 J310
4 J305
5 J320
6 J323
7 J347
8 J315

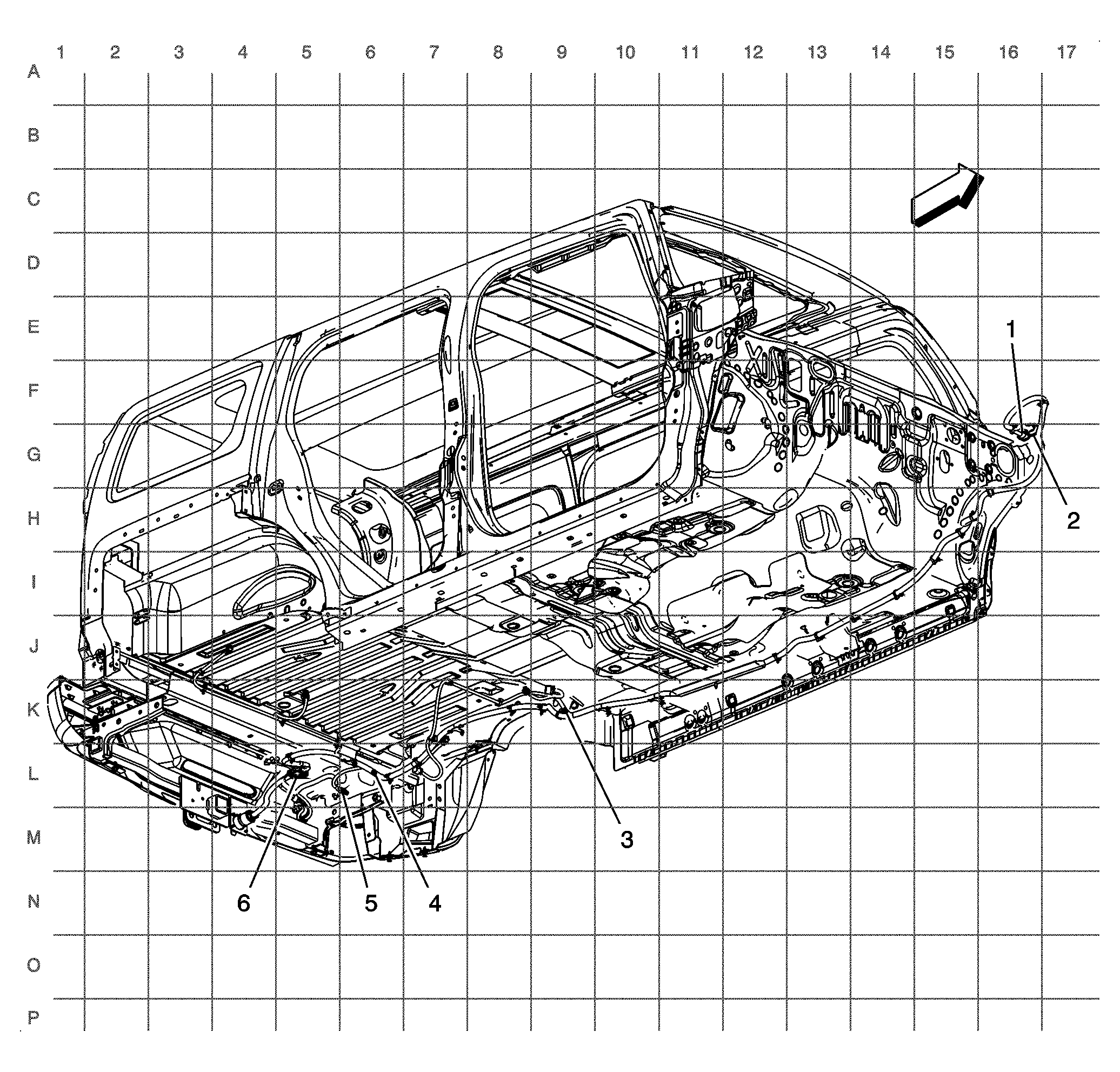

Fig 17: Chassis Harness
GM1918927Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X155
2 X150
3 S359
4 S402
5 S420
6 X420

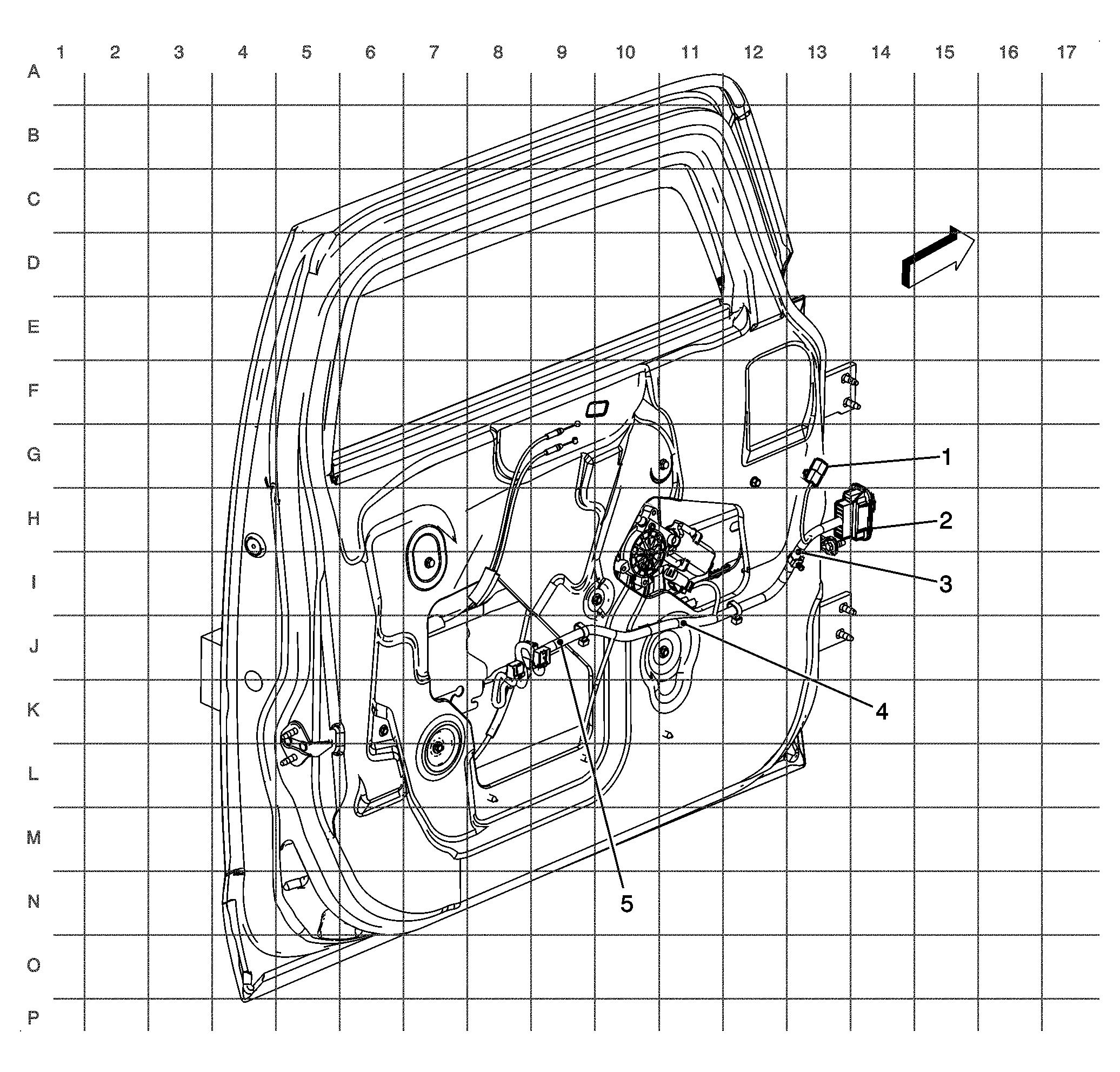

Fig 18: Left Front Door Harness (LHD)
GM1917875Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X510
2 X500
3 J529
4 J590
5 J514

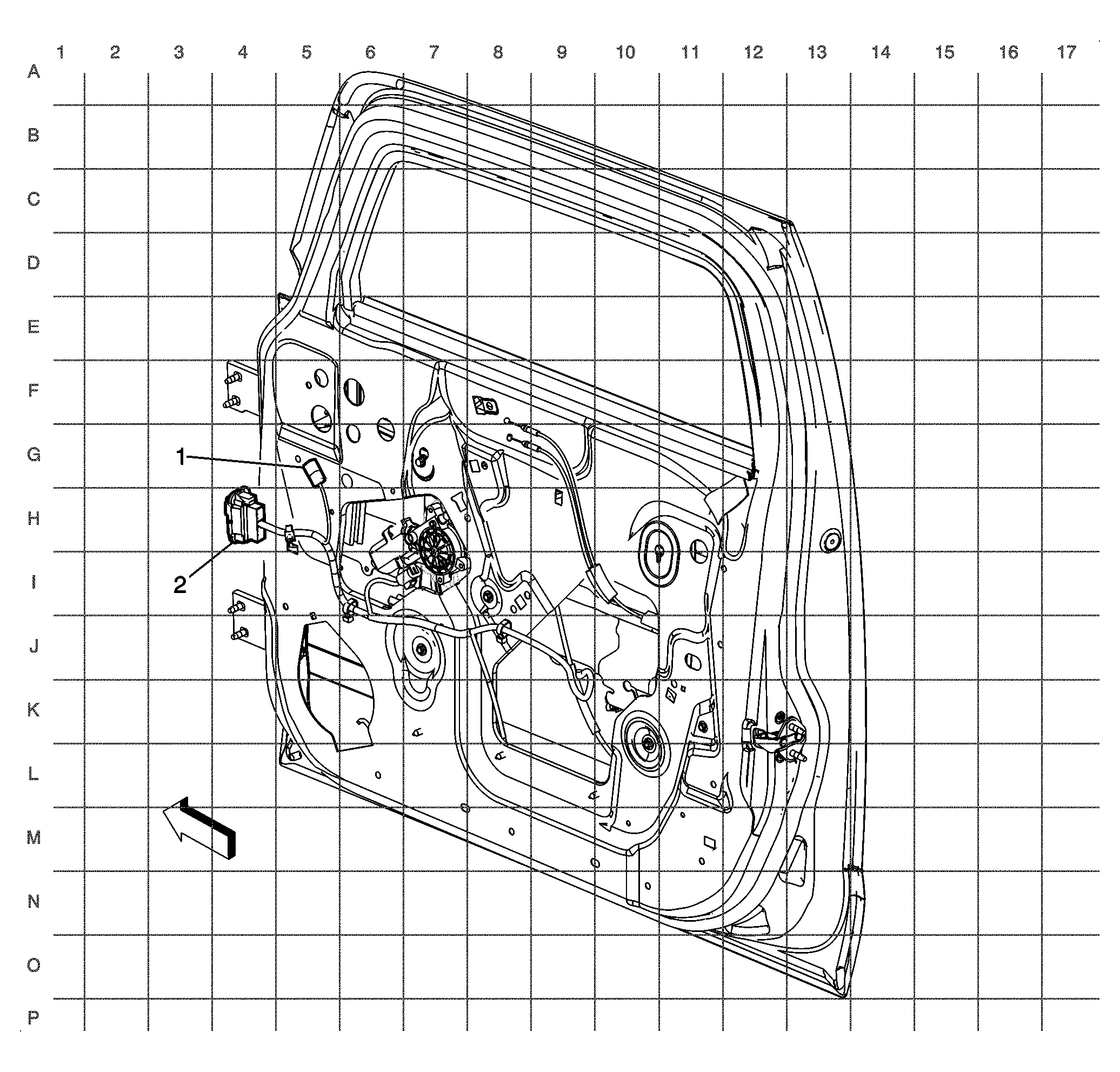

Fig 19: Right Front Door Harness (LHD)
GM1917962Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X610
2 X600

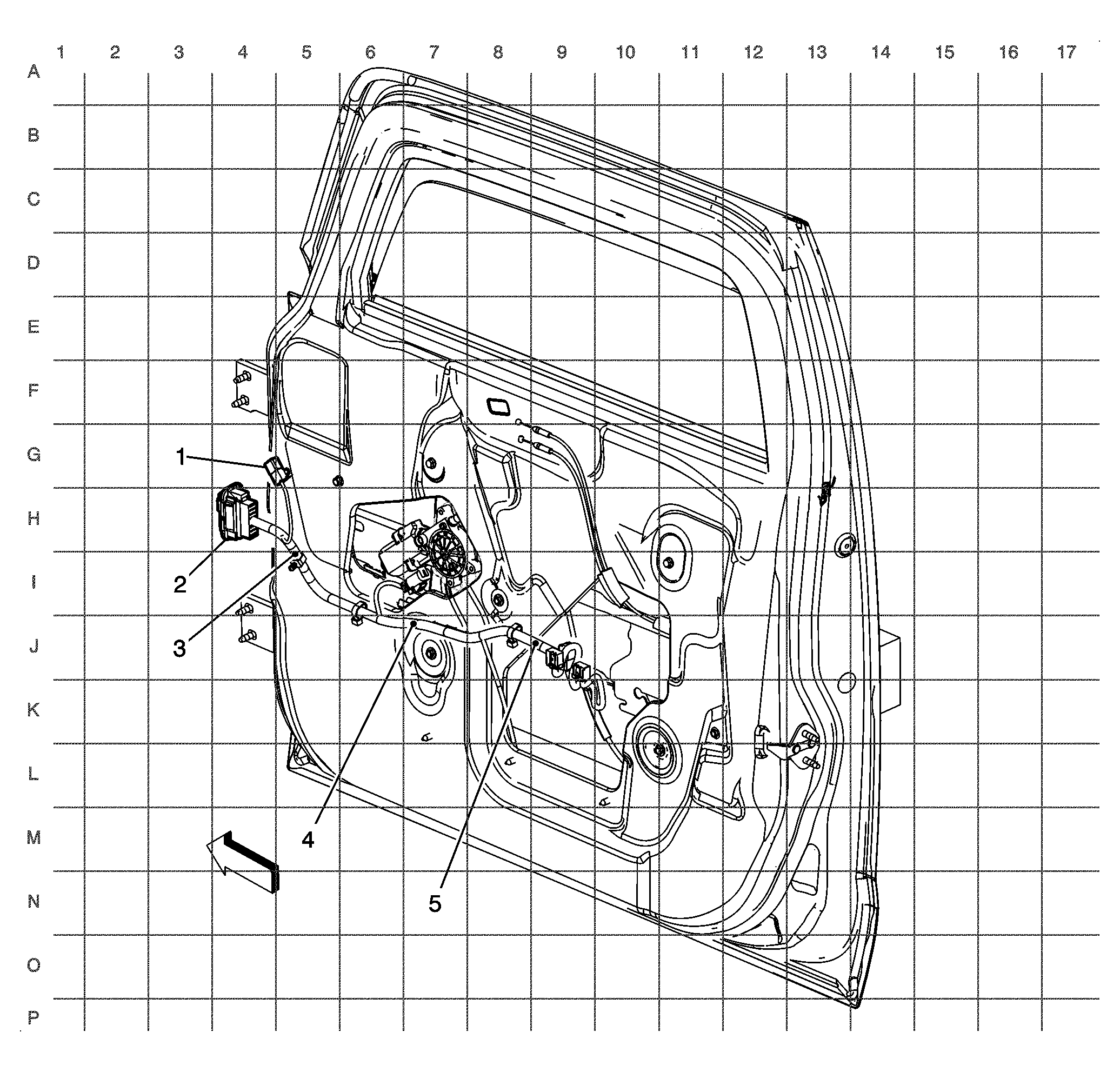

Fig 20: Right Front Door Harness (RHD)
GM1918529Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X510
2 X500
3 J529
4 J590
5 J514

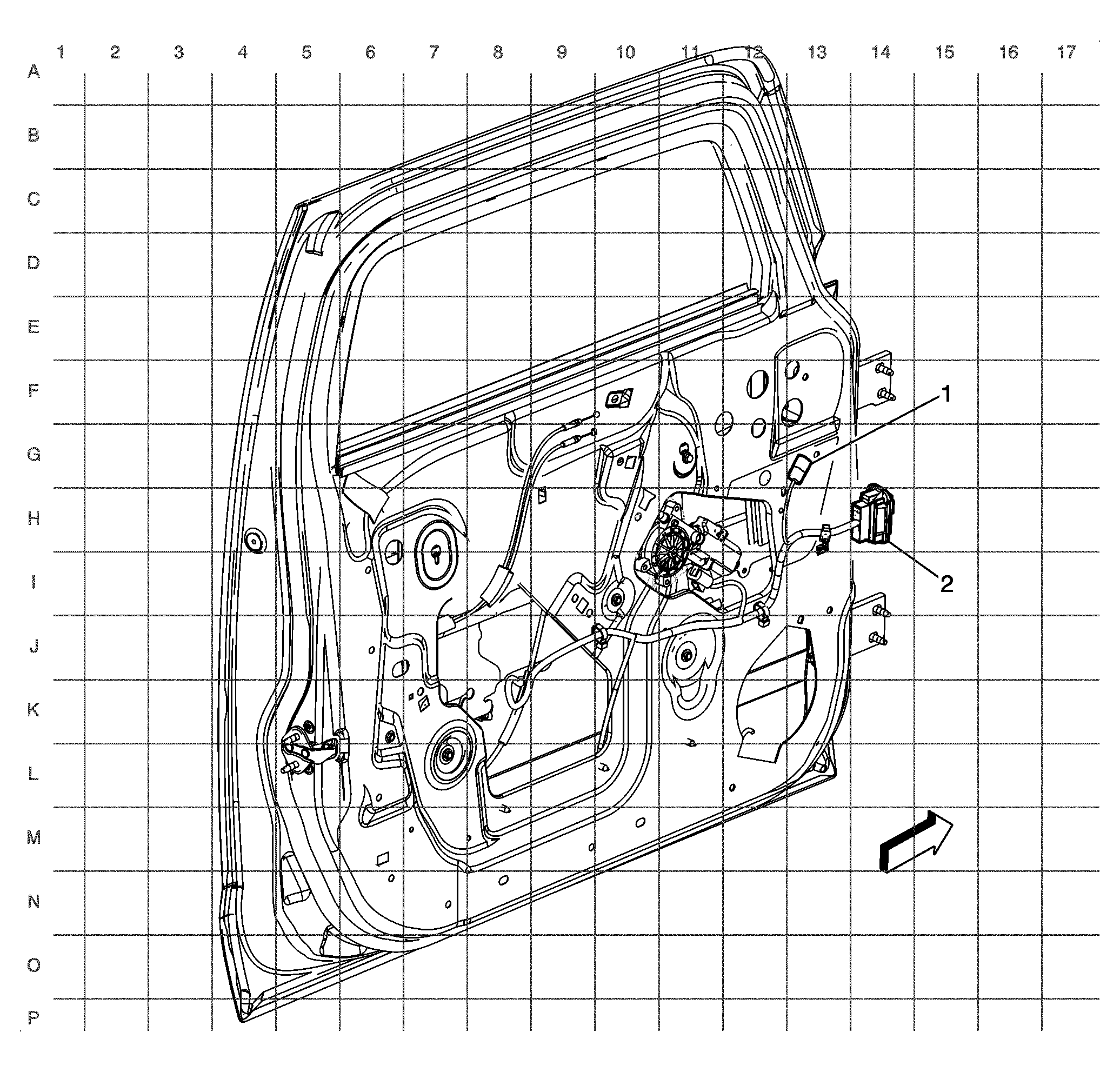

Fig 21: Left Front Door Harness (RHD)
GM1918321Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X610
2 X600

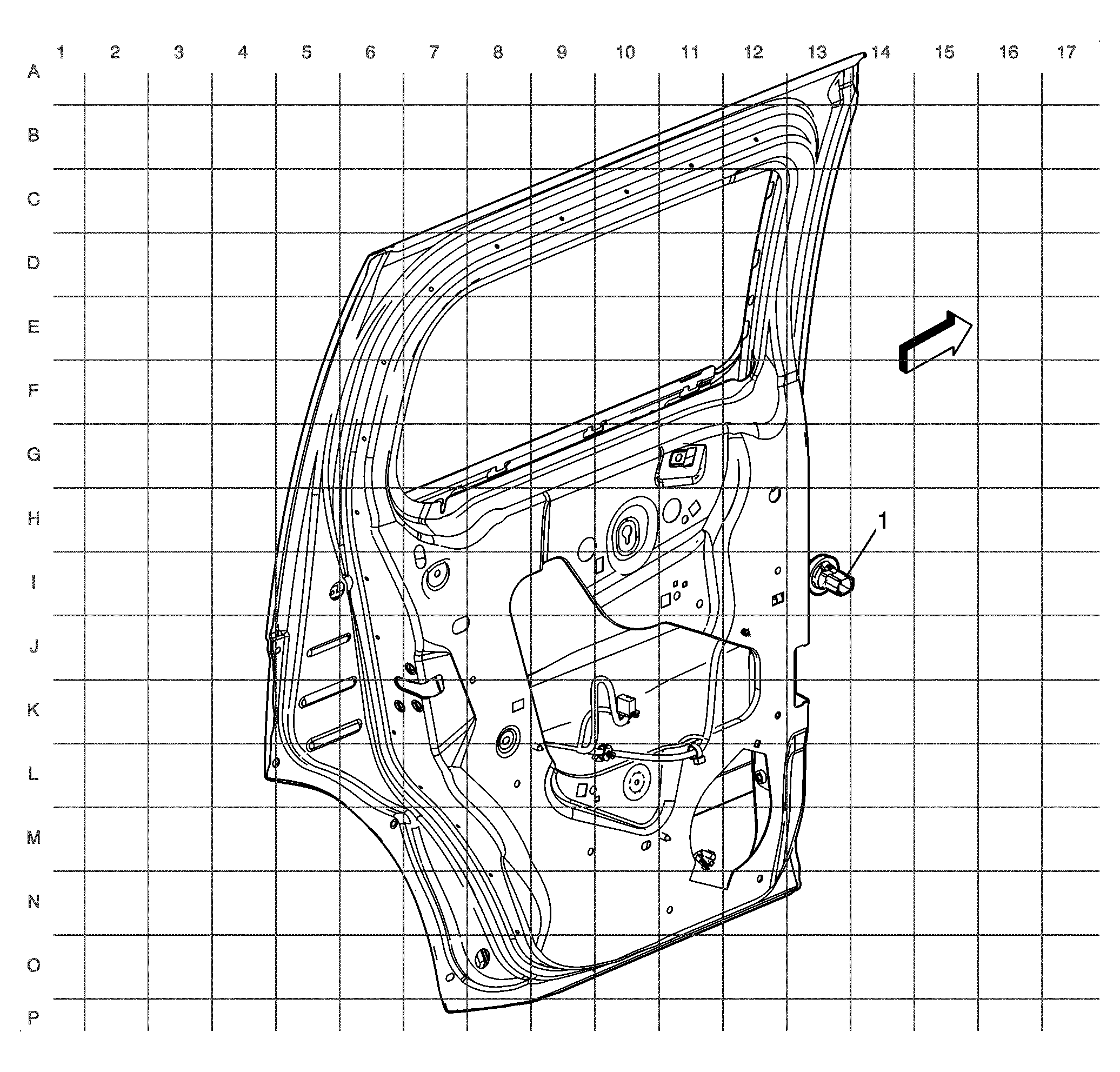

Fig 22: Left Rear Door Harness
GM1918611Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X370

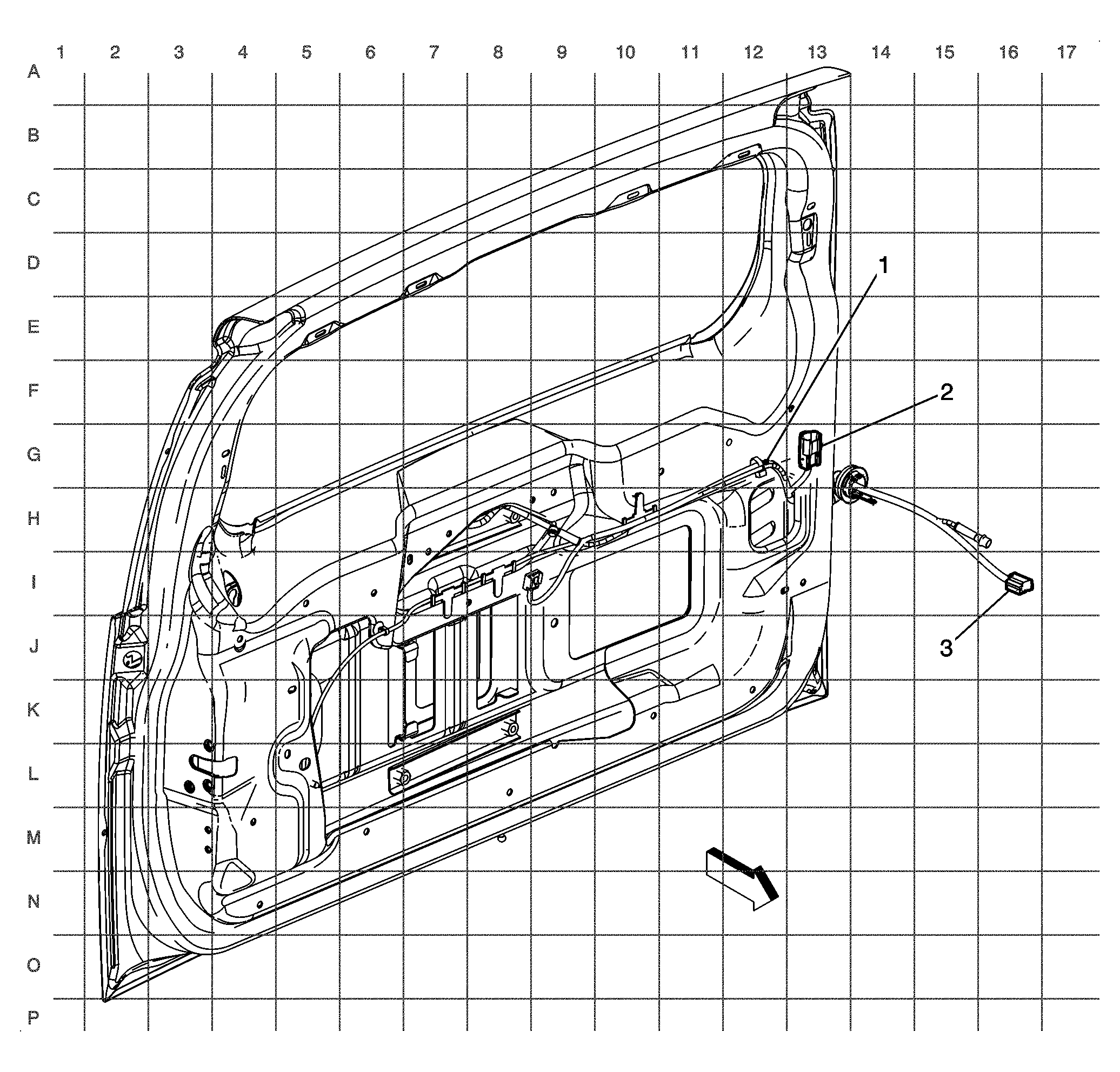

Fig 23: Endgate Harness Routing
GM1918710Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J900
2 X901
3 X450

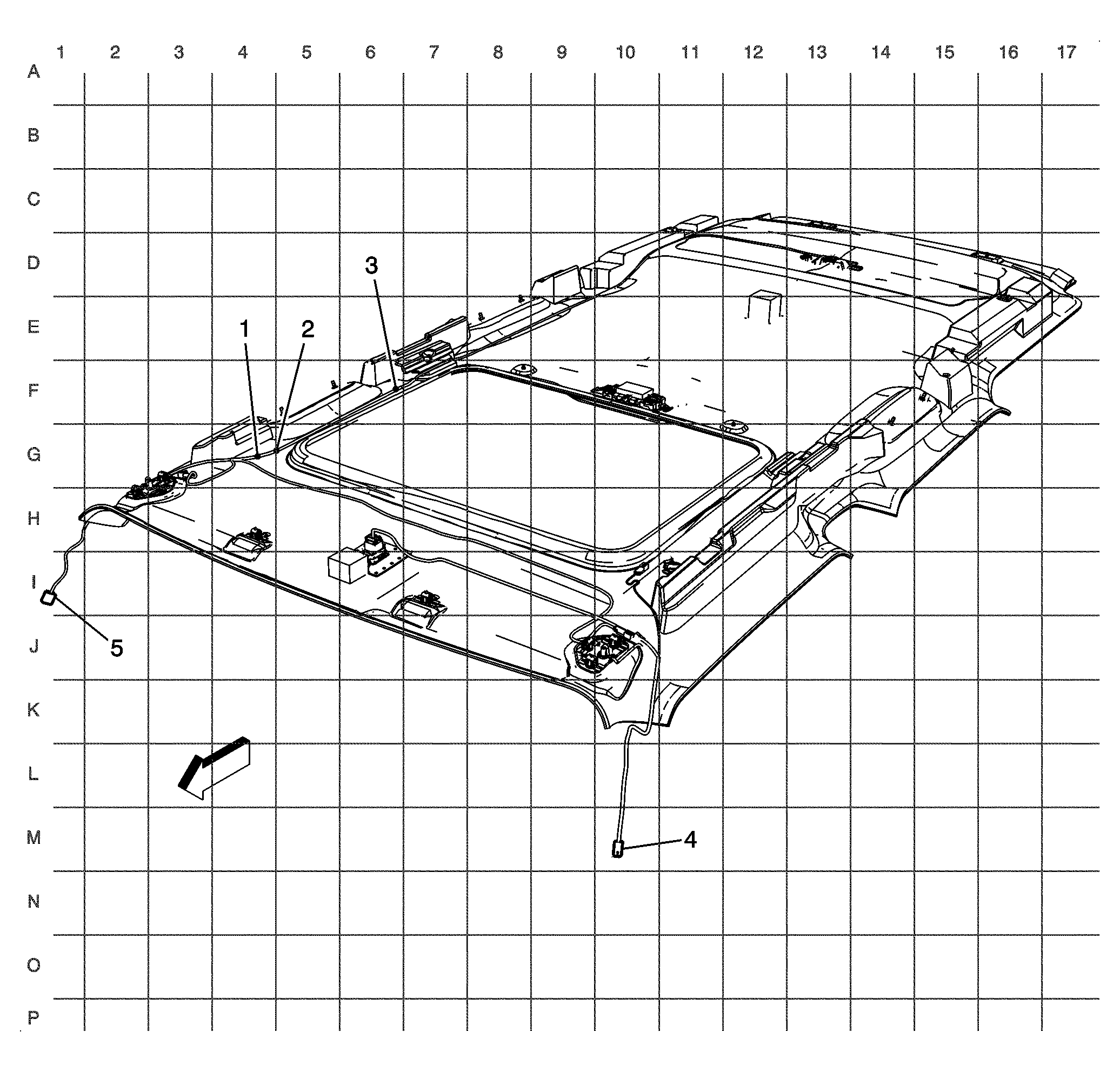

Fig 24: Dome Lamp and OS Harness
GM1918968Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J330
2 J340 (YC3)
3 J350
4 X335
5 X350

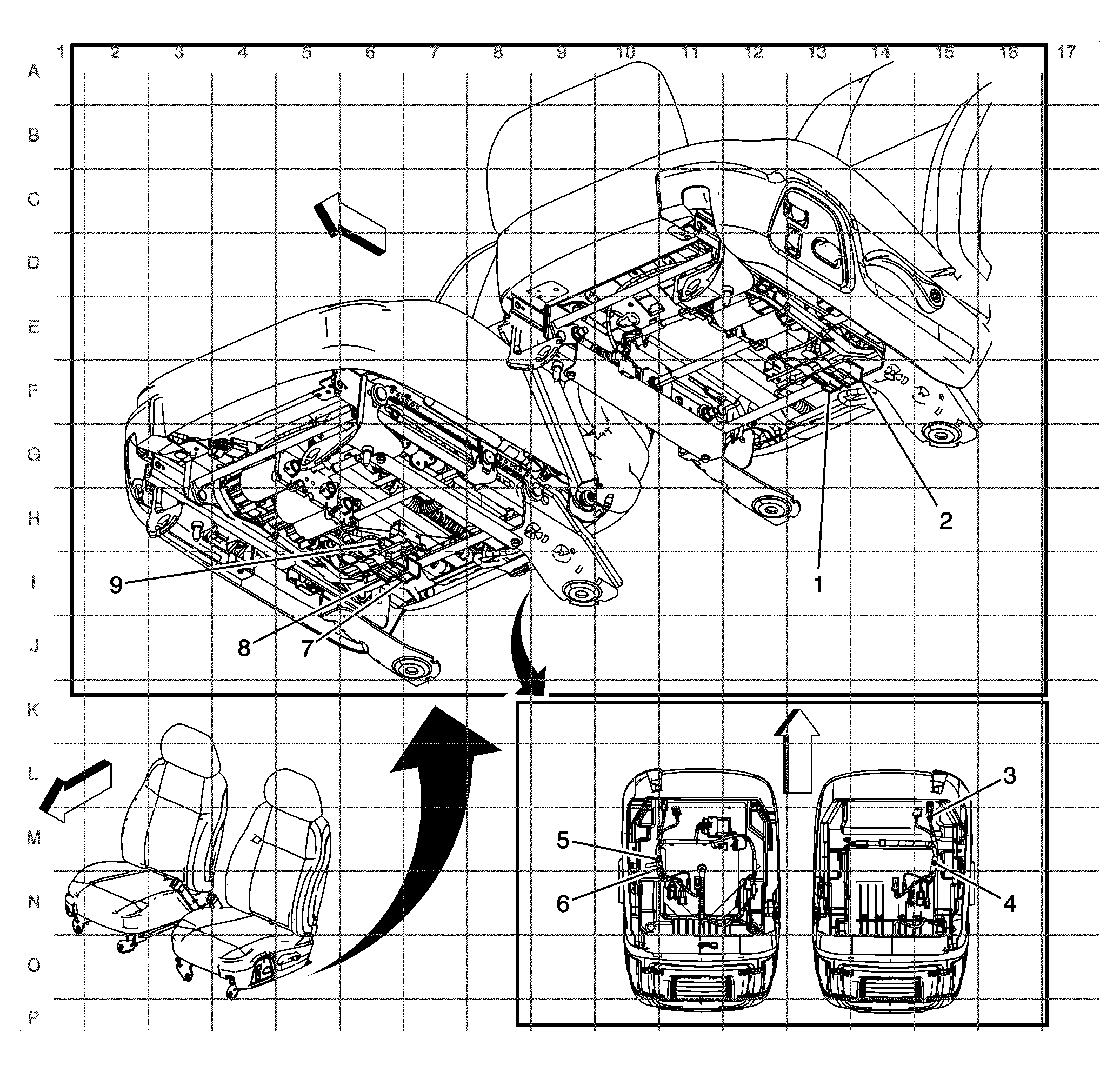

Fig 25: Driver and Passenger Seats Harness
GM1919033Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X308
2 X307 (AG1)
3 J306 (AG1)
4 J312 (AG1)
5 J316 (AG2)
6 J341 (AG2)
7 X320
8 X315
9 X118 (AG2)
