Immobilizer Schematics

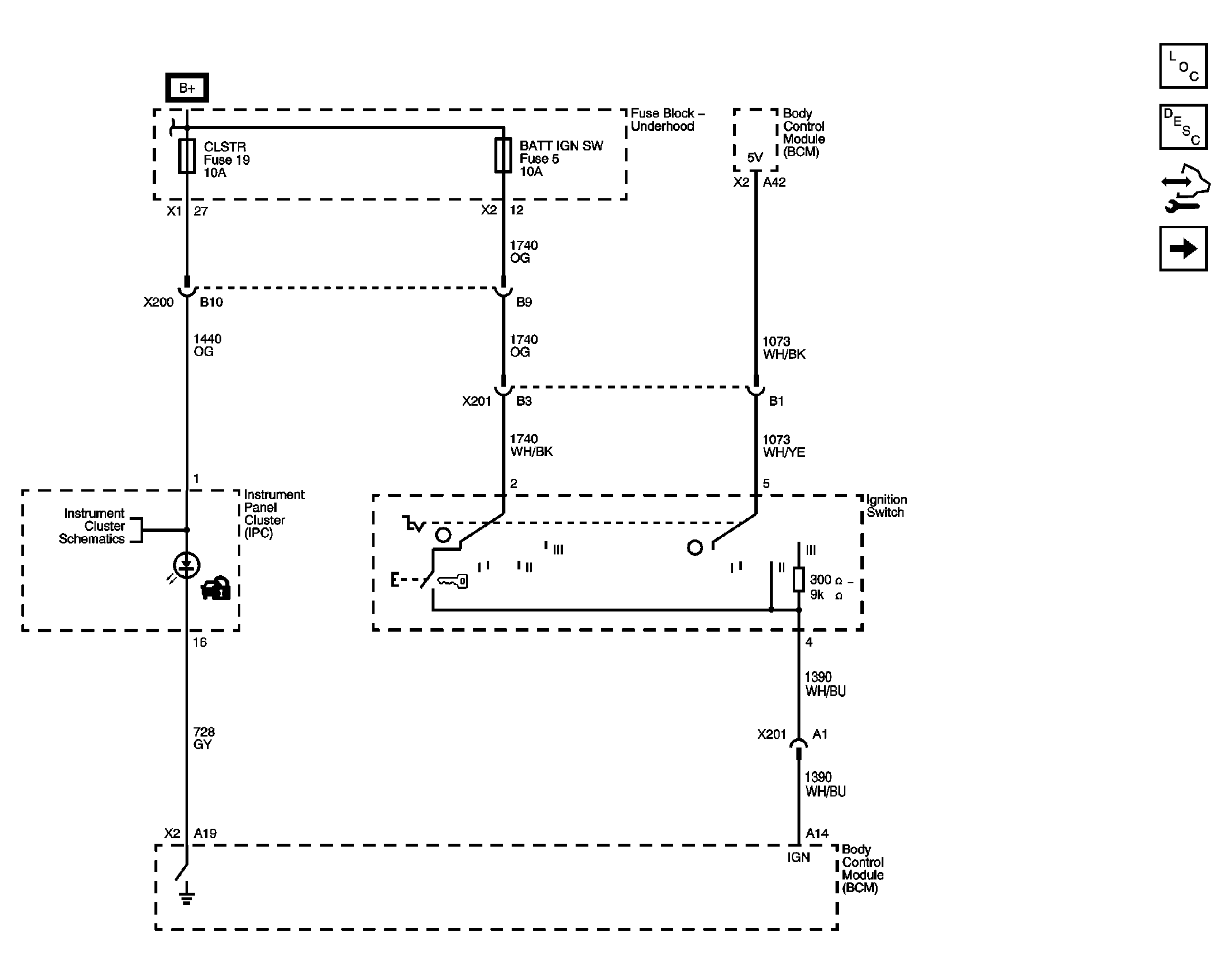

Fig 1: Passlock™ (without BAE) Schematic

GM2223846

Courtesy of GENERAL MOTORS CORP.

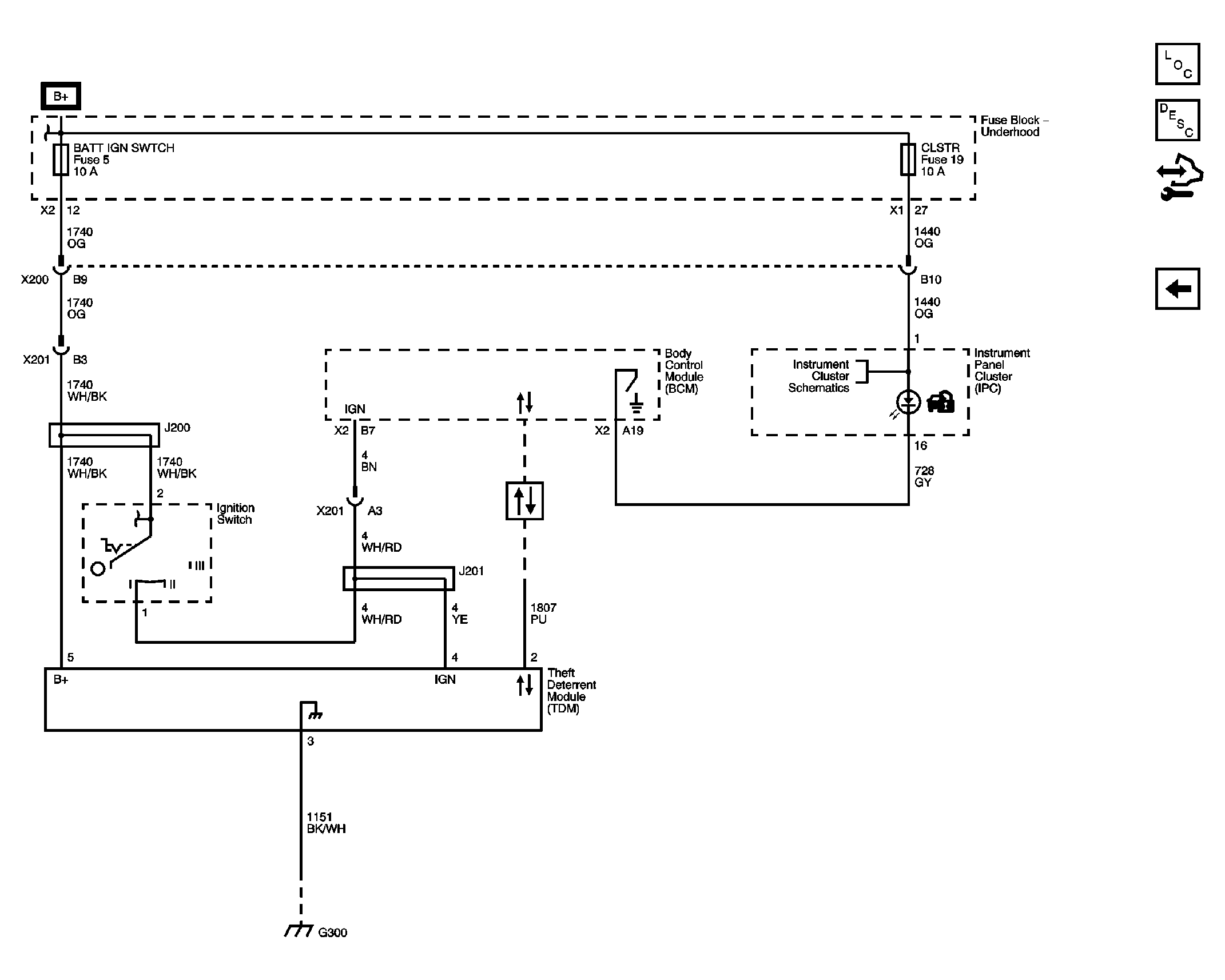

Fig 2: PASS-Key® III (BAE) Schematic

GM2080523

Courtesy of GENERAL MOTORS CORP.
