Trailer Hitch Replacement

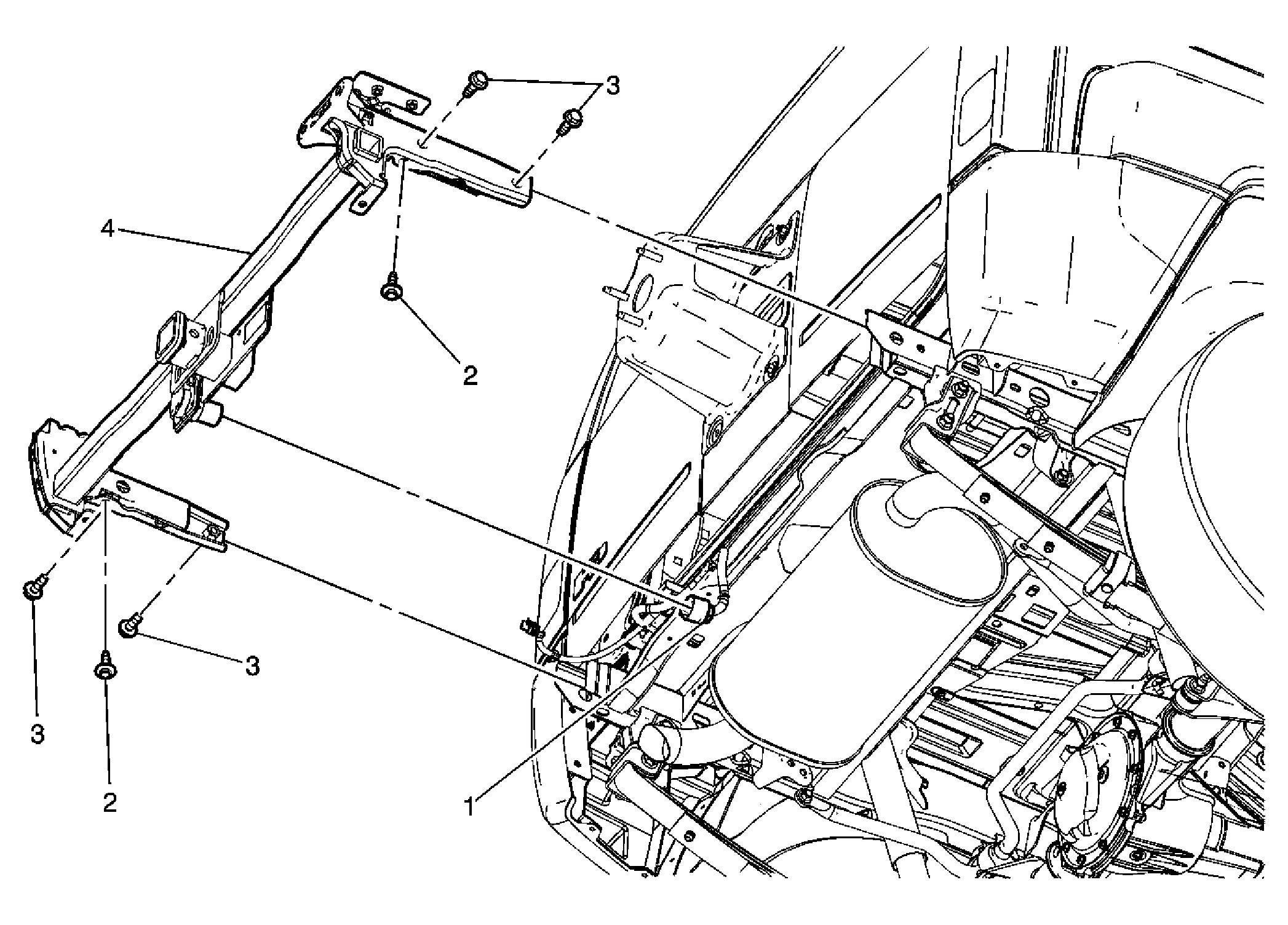

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove rear bumper. Refer to Rear Bumper Impact Bar Replacement . |
|
| 1 | Trailer Wire Connector |
| 2 | Trailer Hitch Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 100 N.m (74 lb ft) |
| 3 | Trailer Hitch Bolts (Qty: 4) Tighten: 160 N.m (118 lb ft) |
| 4 | Trailer Hitch |
