Rear Tow Eye Replacement

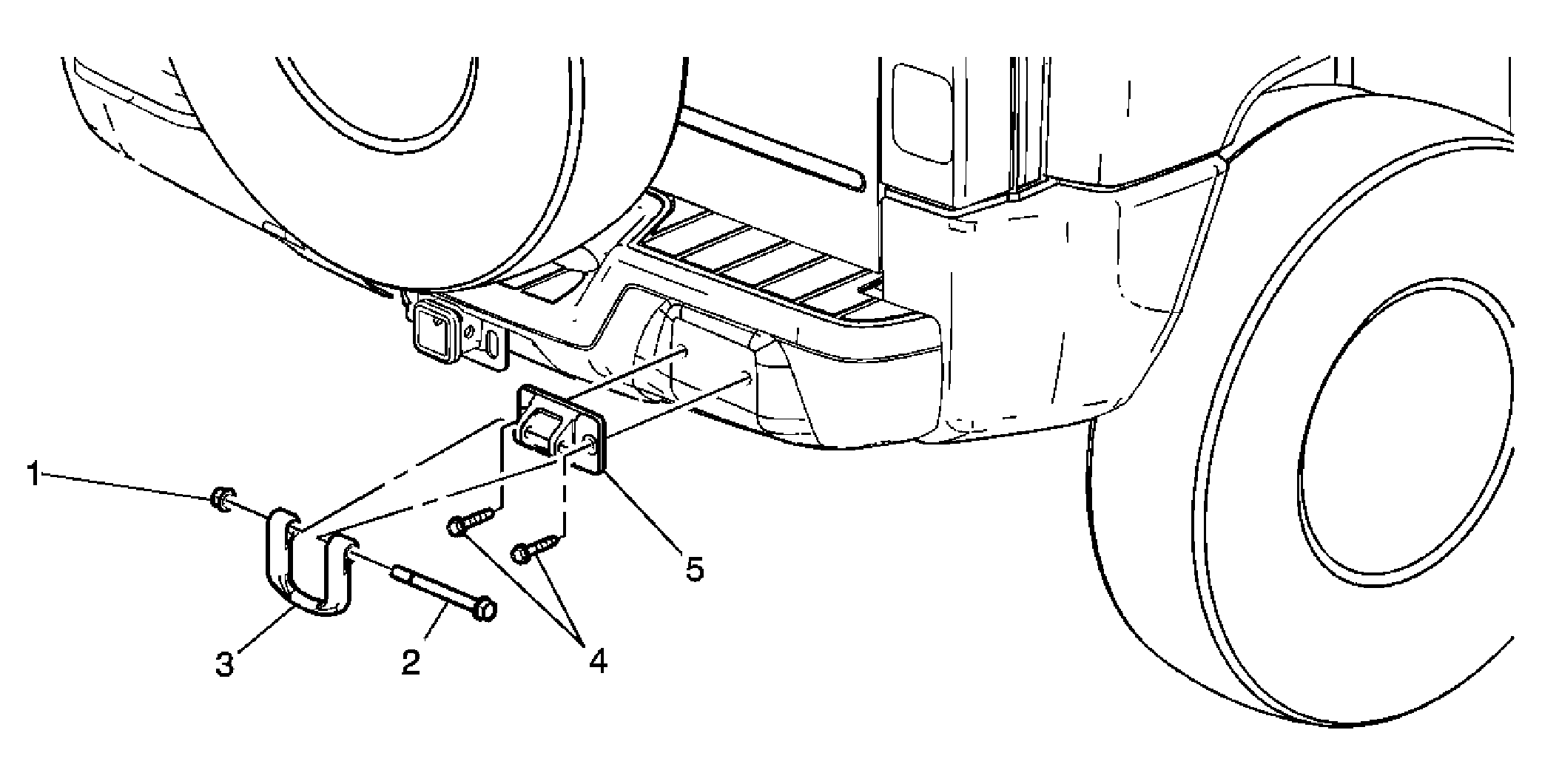

| Callout | Component Name |
|---|---|
| 1 | Tow Hook Nut
CAUTION:
Refer to Fastener Caution
. Tip: The nut should be tight enough to keep the hook from rattling against the bumper and loose enough to be moveable by hand. Tighten: 50 N.m (37 lb ft) minus approximately 180 degrees |
| 2 | Tow Hook Bolt |
| 3 | Tow Hook |
| 4 | Tow Hook Bracket Bolt (Qty: 2) Tip: It may be necessary to remove the impact bar assembly to access additional bolts for the tow hook bracket. Refer to Rear Bumper Impact Bar Replacement . Tighten: 100 N.m (74 lb ft) |
| 5 | Tow Hook Bracket |
