Engine Shield Replacement

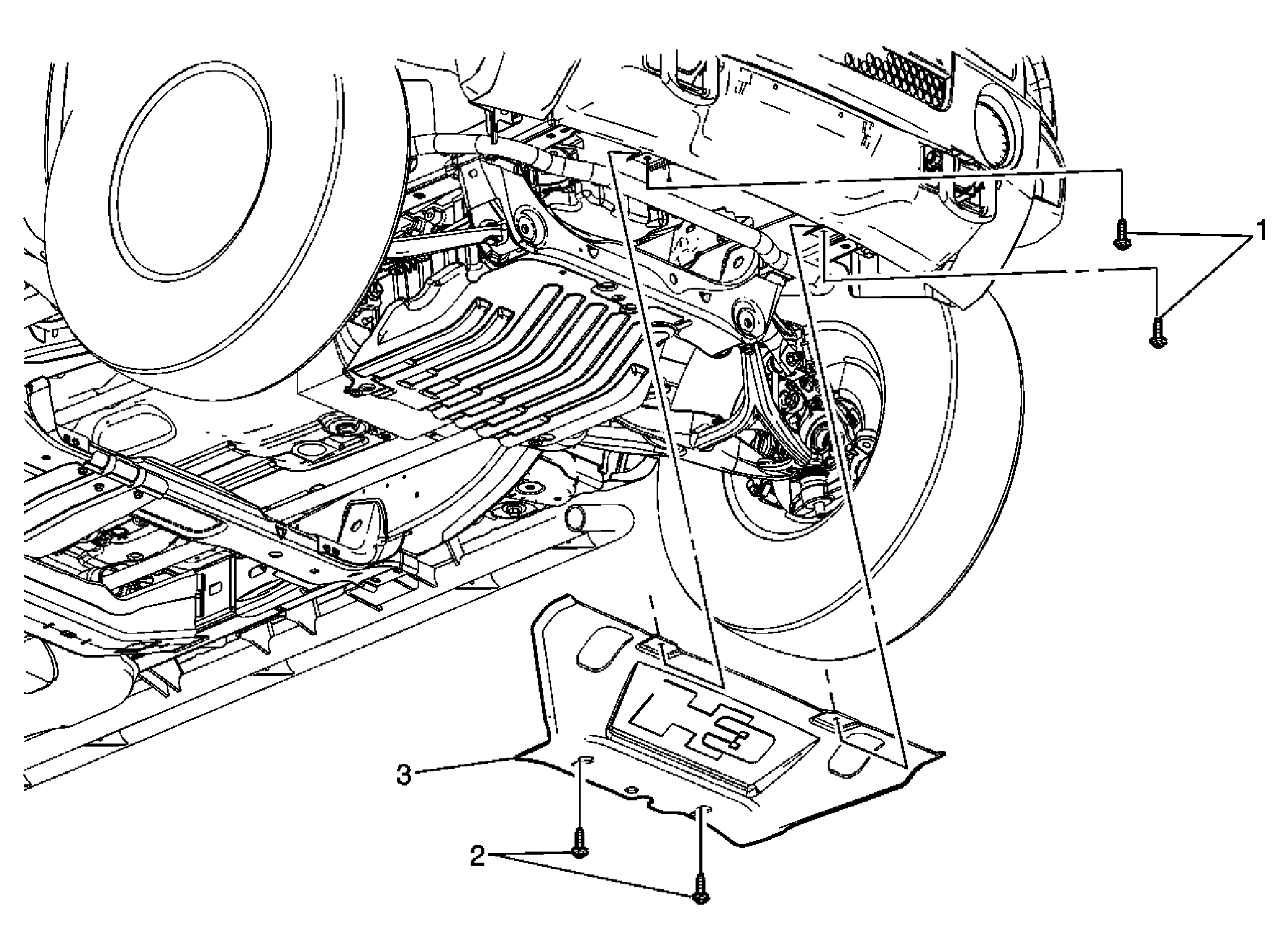

Fig 1: Engine Shield Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Bolts, Engine Shield (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 20 N.m (15 lb ft)
2	Bolts, Engine Shield (Qty: 2) Tighten: 20 N.m (15 lb ft)
3	Shield, Engine
