Data Communication Schematics

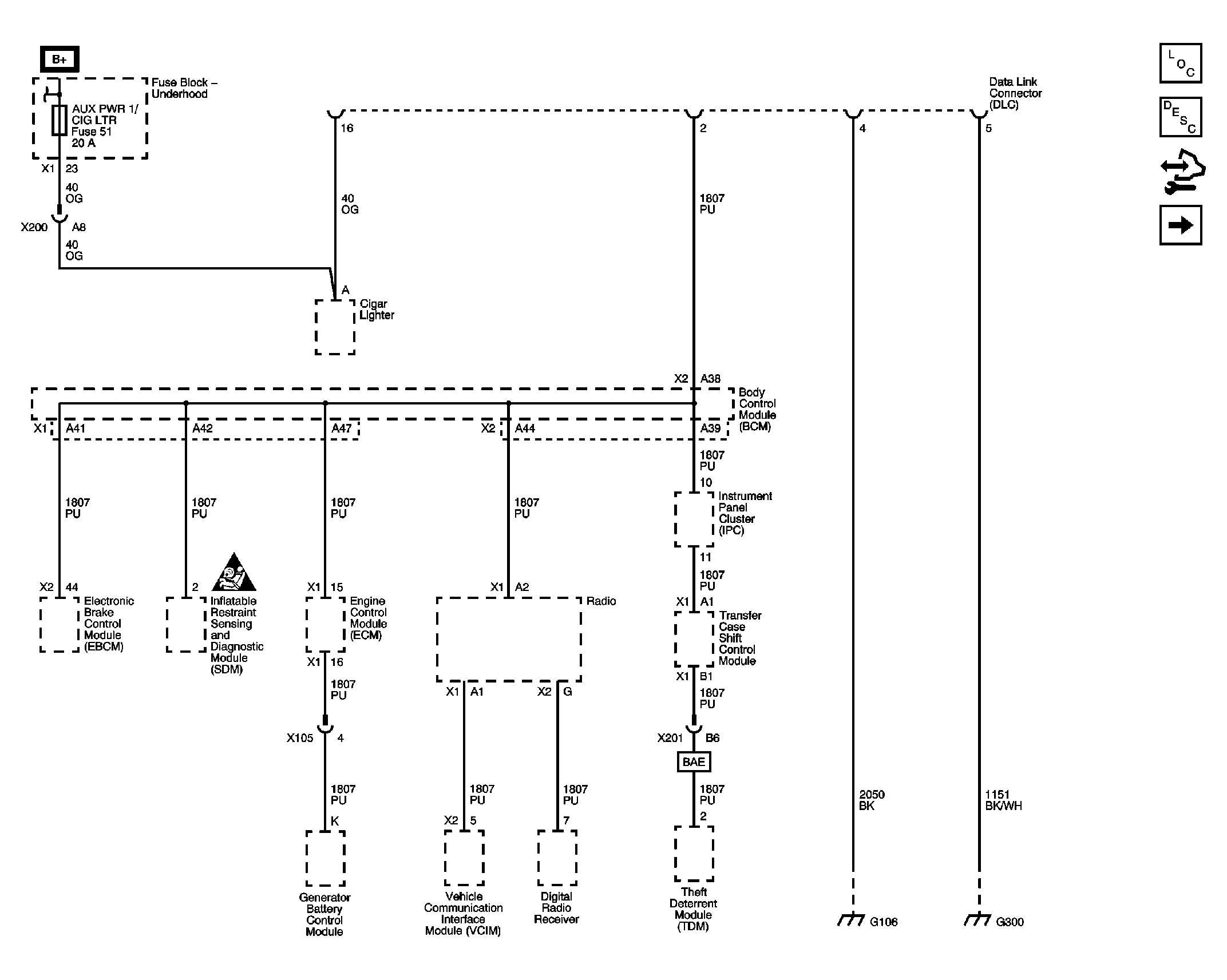

Fig 1: Low Speed Data Communication Schematic

GM2080392

Courtesy of GENERAL MOTORS CORP.

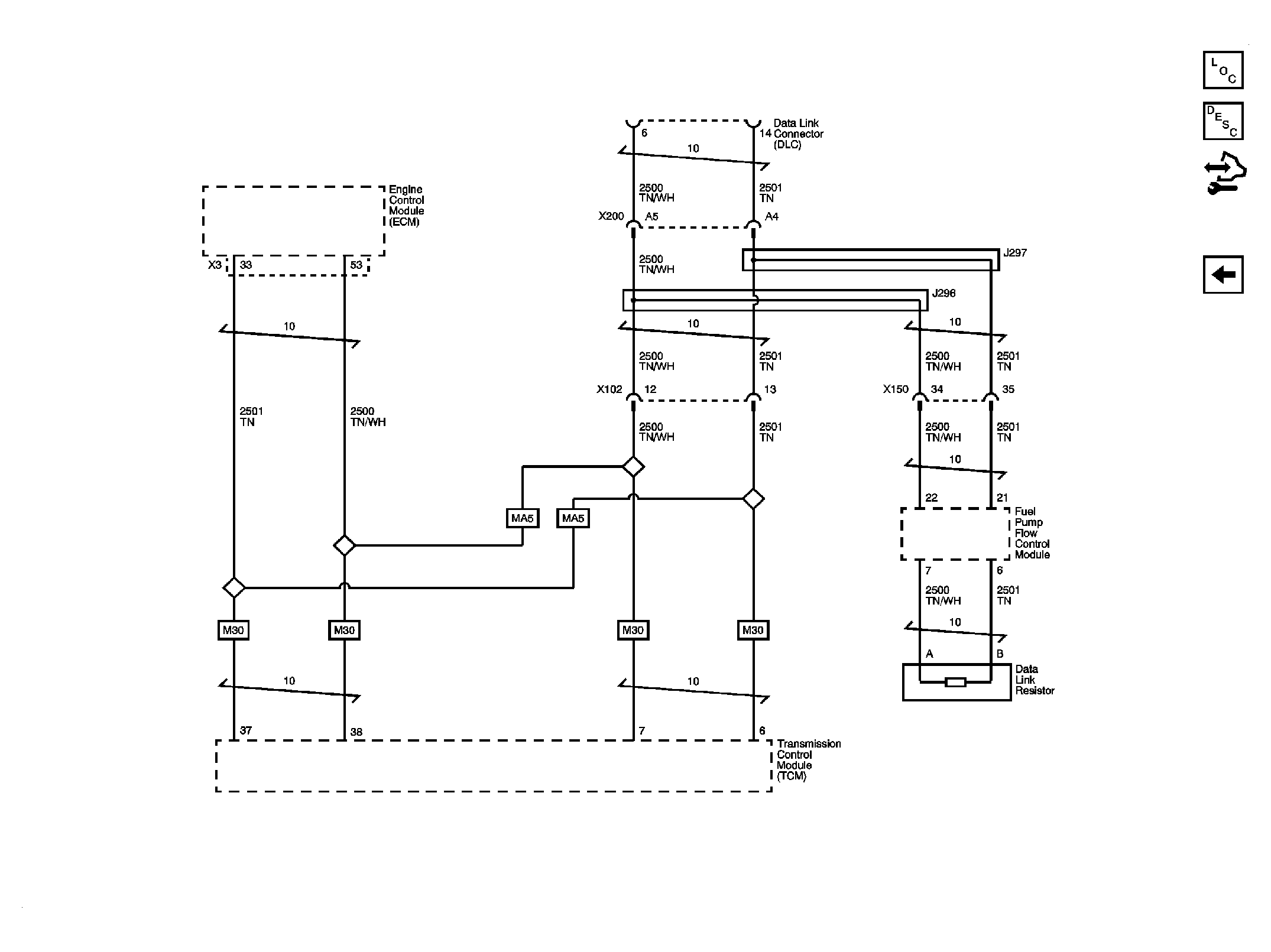

Fig 2: High Speed GMLAN Schematic

GM2182758

Courtesy of GENERAL MOTORS CORP.
