Body Control System Schematics

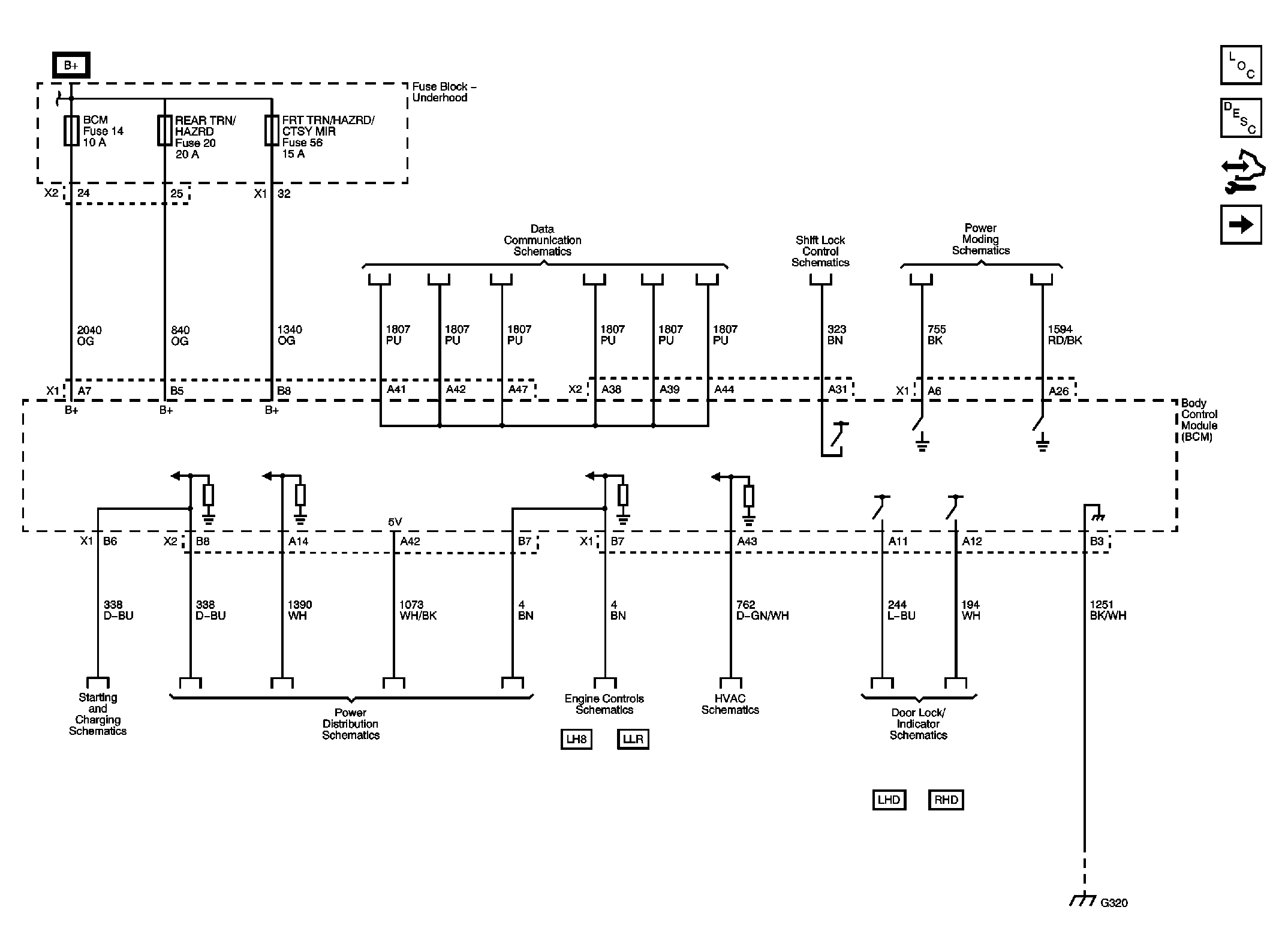

Fig 1: Power, Ground, Serial Data, and Power Moding References Schematic
GM2080525Courtesy of GENERAL MOTORS CORP.

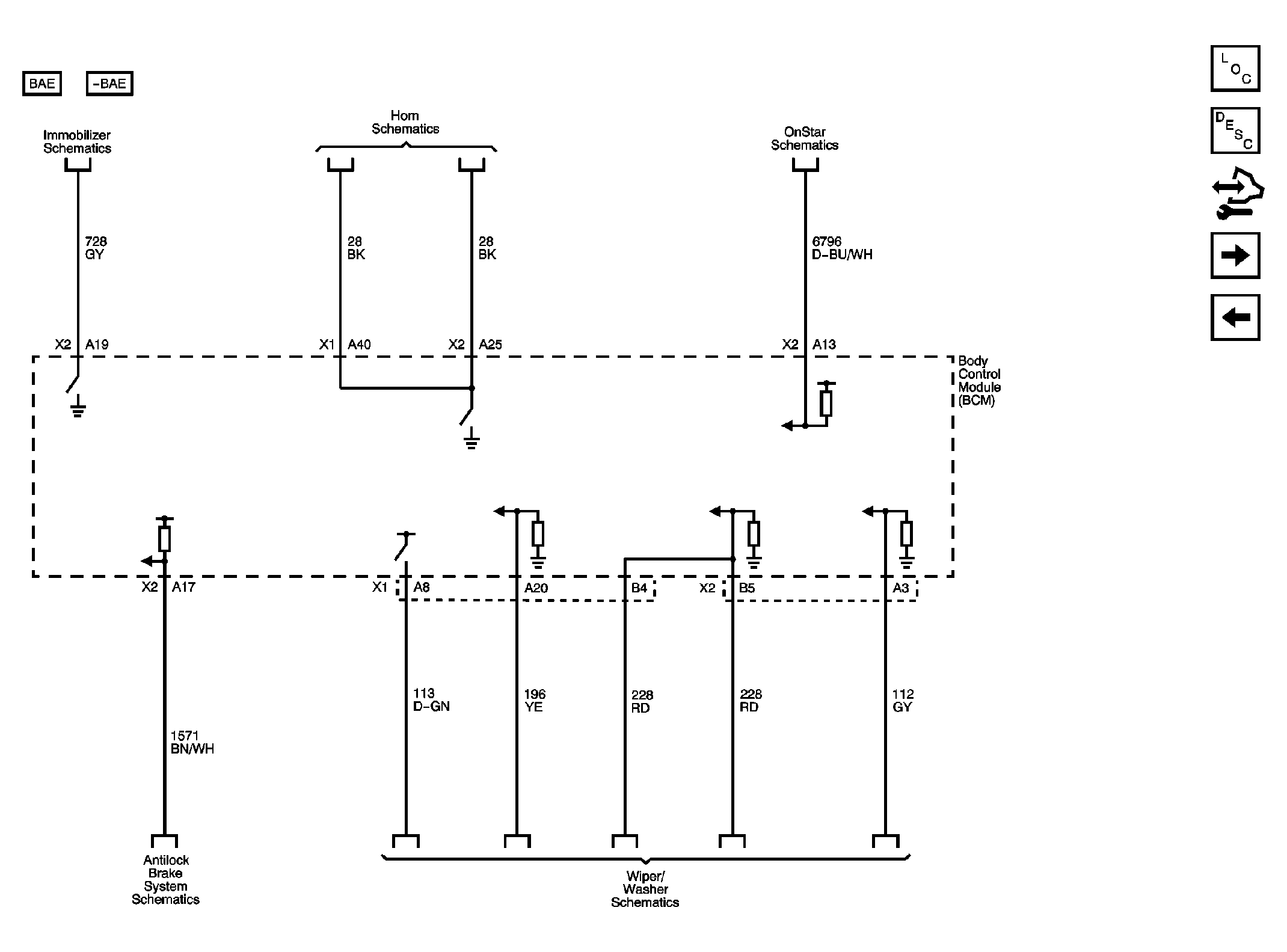

Fig 2: Antilock Brake, Horn, Theft, and Wiper/Washer References Schematic
GM2080527Courtesy of GENERAL MOTORS CORP.

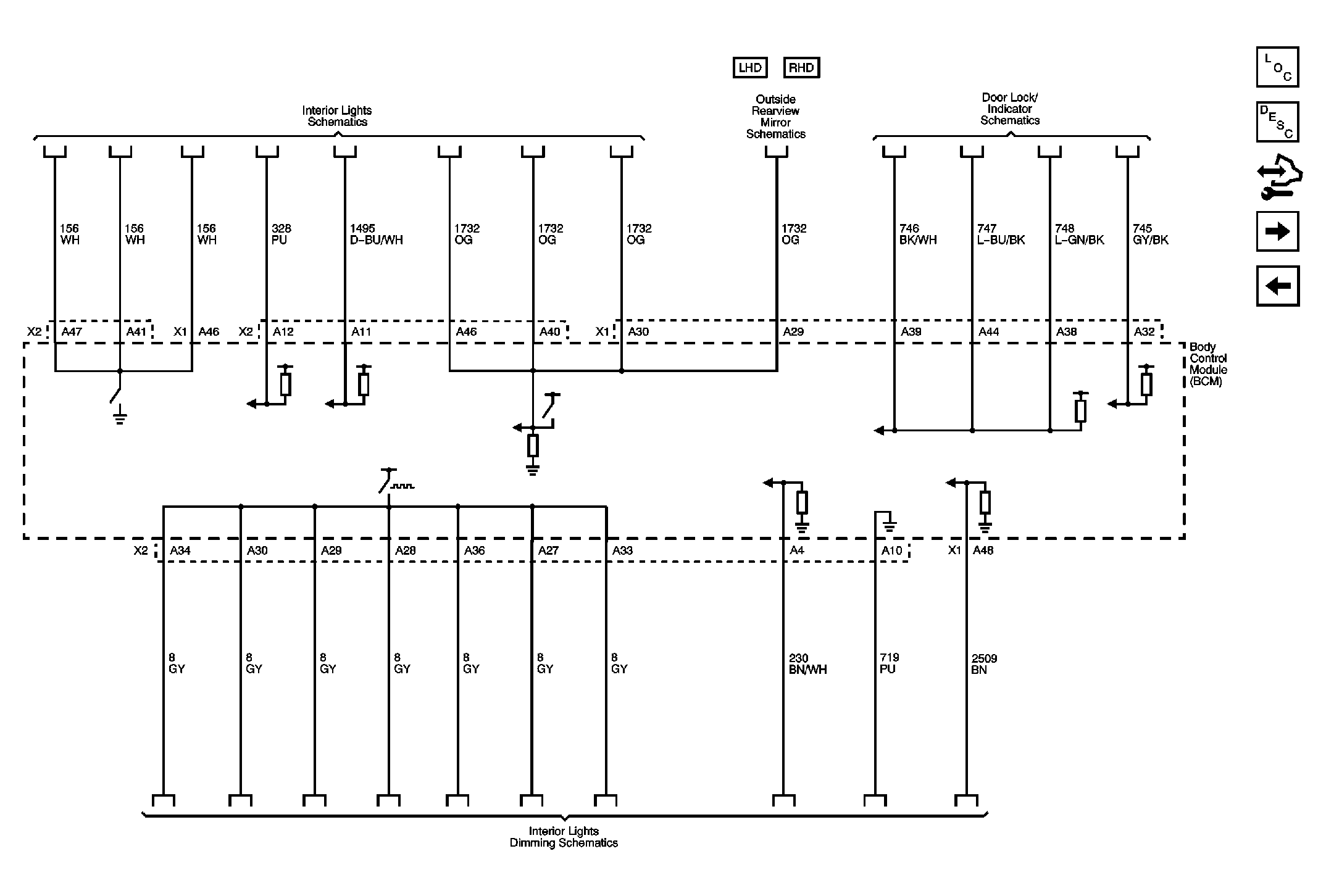

Fig 3: Vehicle Access, Interior Lights, and Interior Lights Dimming References Schematic
GM2080530Courtesy of GENERAL MOTORS CORP.

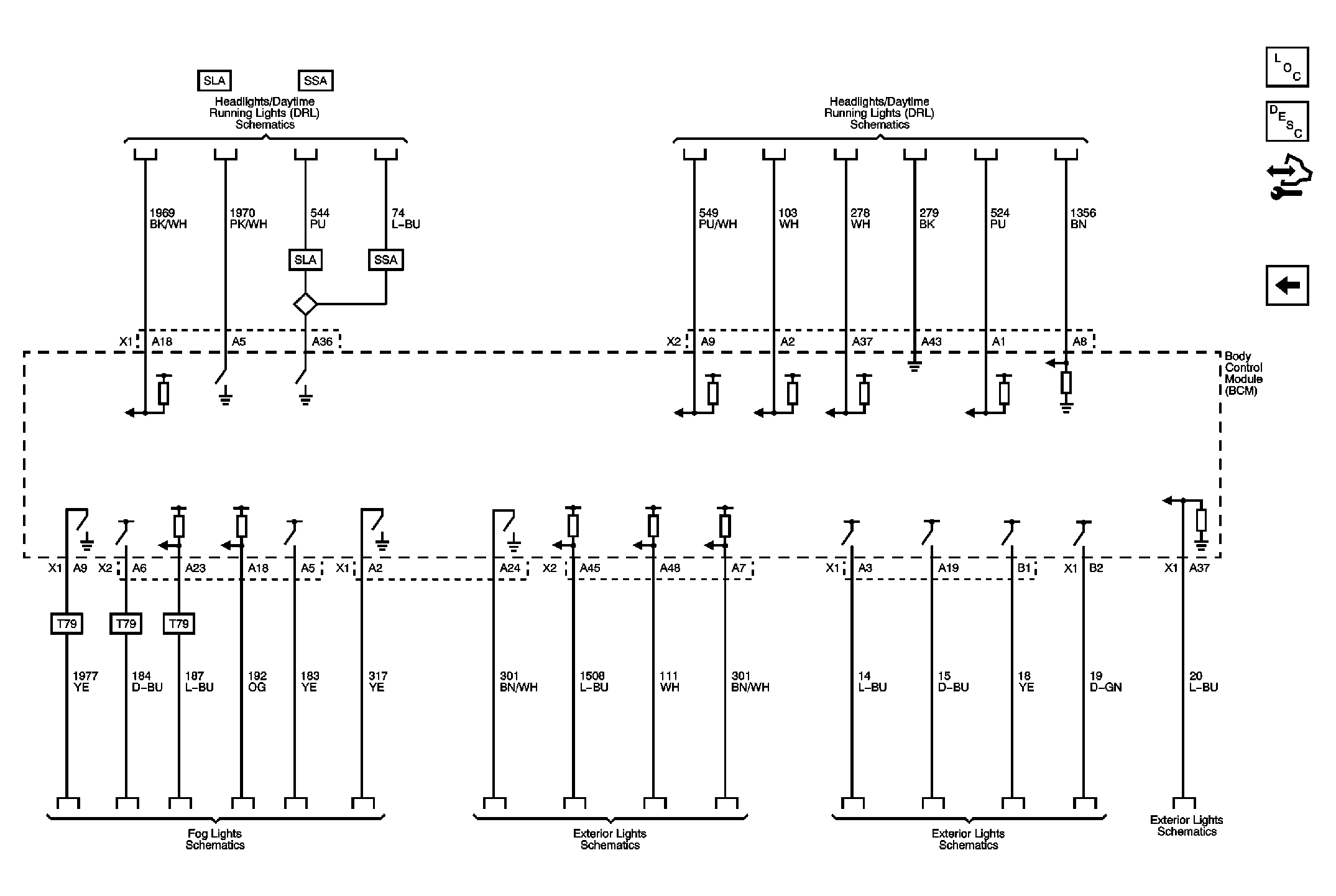

Fig 4: Exterior Lights References Schematic
GM2080531Courtesy of GENERAL MOTORS CORP.
