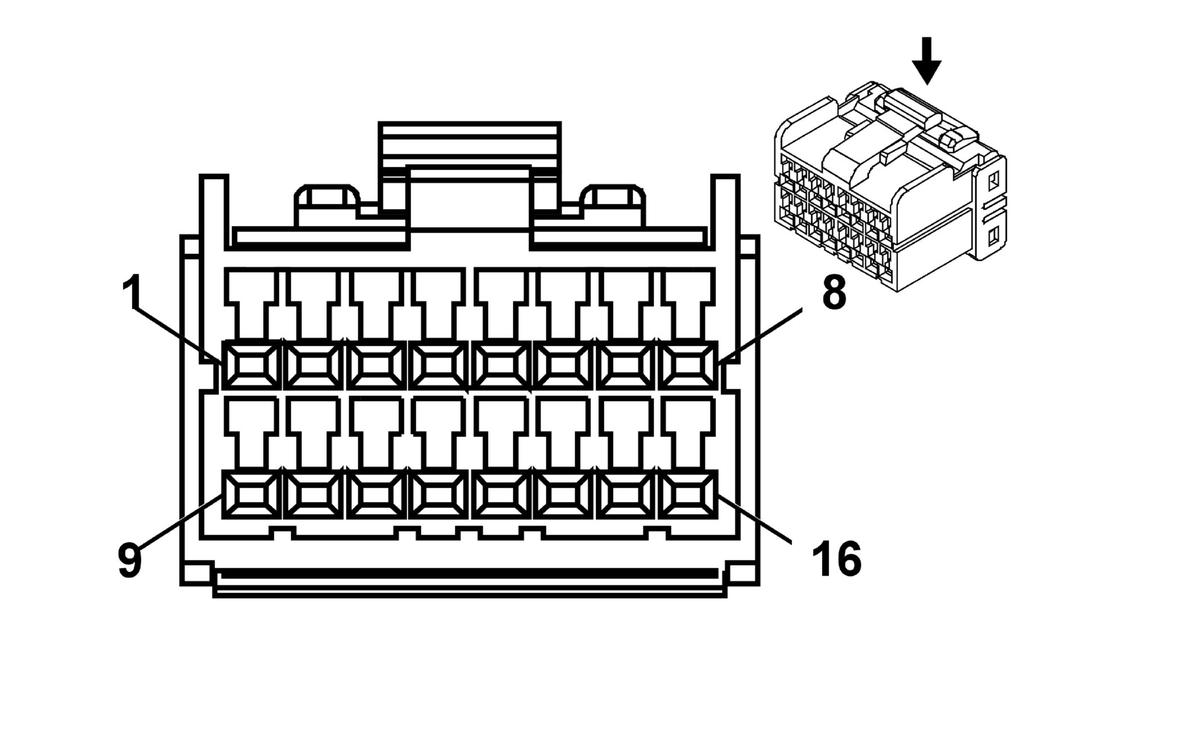

Video Signal Splitter X1 (X88 or Z88, with DNU)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of

Connector Part Information

Harness Type: Headliner
OEM Connector: 12124255
Service Connector: 15775805
Description: 16-Way F 040 Series (BK)

Terminal Part Information

Terminated Lead: 13579932
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-16 (L-GN)
Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4

Video Signal Splitter X1 (X88 or Z88, with DNU)

Pin	Wire	Circuit	Function
1	0.35 D-GN	6975	DVD Video Signal (+)
2	0.5 BARE	6976	Drain Wire
3	-	-	Not Used
4	0.35 PK	5829	Infrared Module Control
5	0.35 PK	5829	Infrared Module Control
6	0.5 RD/WH	1540	Battery Positive Voltage
7	0.35 BK	2550	Ground
8	0.35 PK/BK	5844	Video Bright Signal
9	0.35 WH/BK	5335	DVD Video Signal (-)
10	-	-	Not Used
11	0.35 WH	7066	Entertainment Remote Enable Signal
12-13	-	-	Not Used
14	0.5 BK	2550	Ground
15	-	-	Not Used
16	0.35 L-GN/BK	5845	Video Mode Signal
