Video Display Replacement (Third Row)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

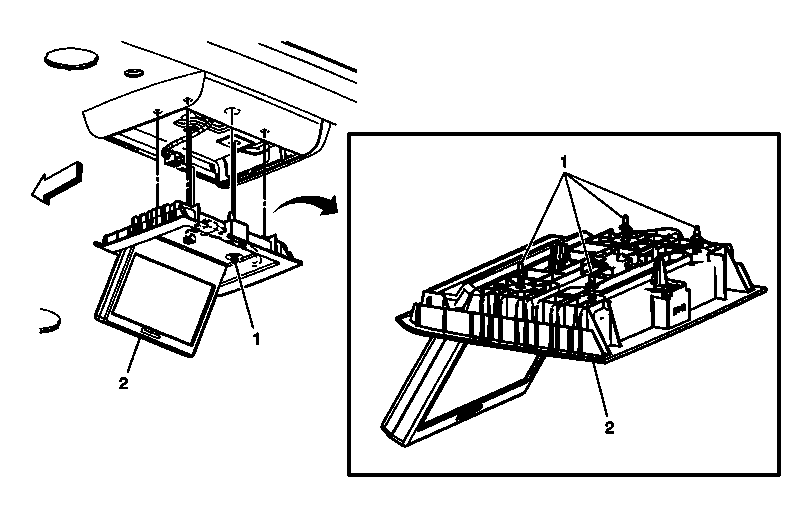

Fig 1: View Of Video Display Assembly & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Video Display Assembly Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in) TIP: Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded.
2	Video Display Assembly Pull down to disengage the retainer clip and remove from the vehicle. Disconnect the electrical connector.
