Information Center Telltale Assembly Replacement (Avalanche/Escalade EXT)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

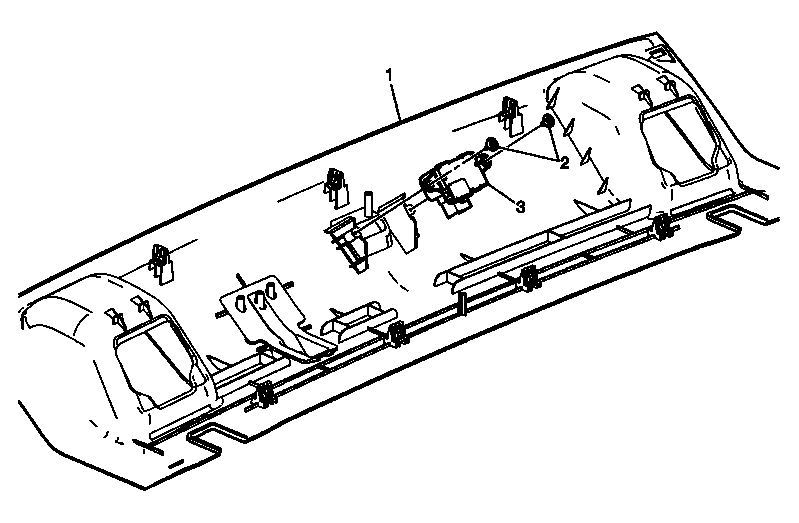

Fig 1: View Of Information Center Telltale Assembly, Screws & Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Upper Garnish Molding Assembly Refer to Garnish Molding Replacement - Rear Upper (Avalanche/Escalade EXT) .
2	Information Center Telltale Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb ft)
3	Information Center Telltale Assembly Tip: Disconnect electrical connector.
