Power Seat Switch Replacement

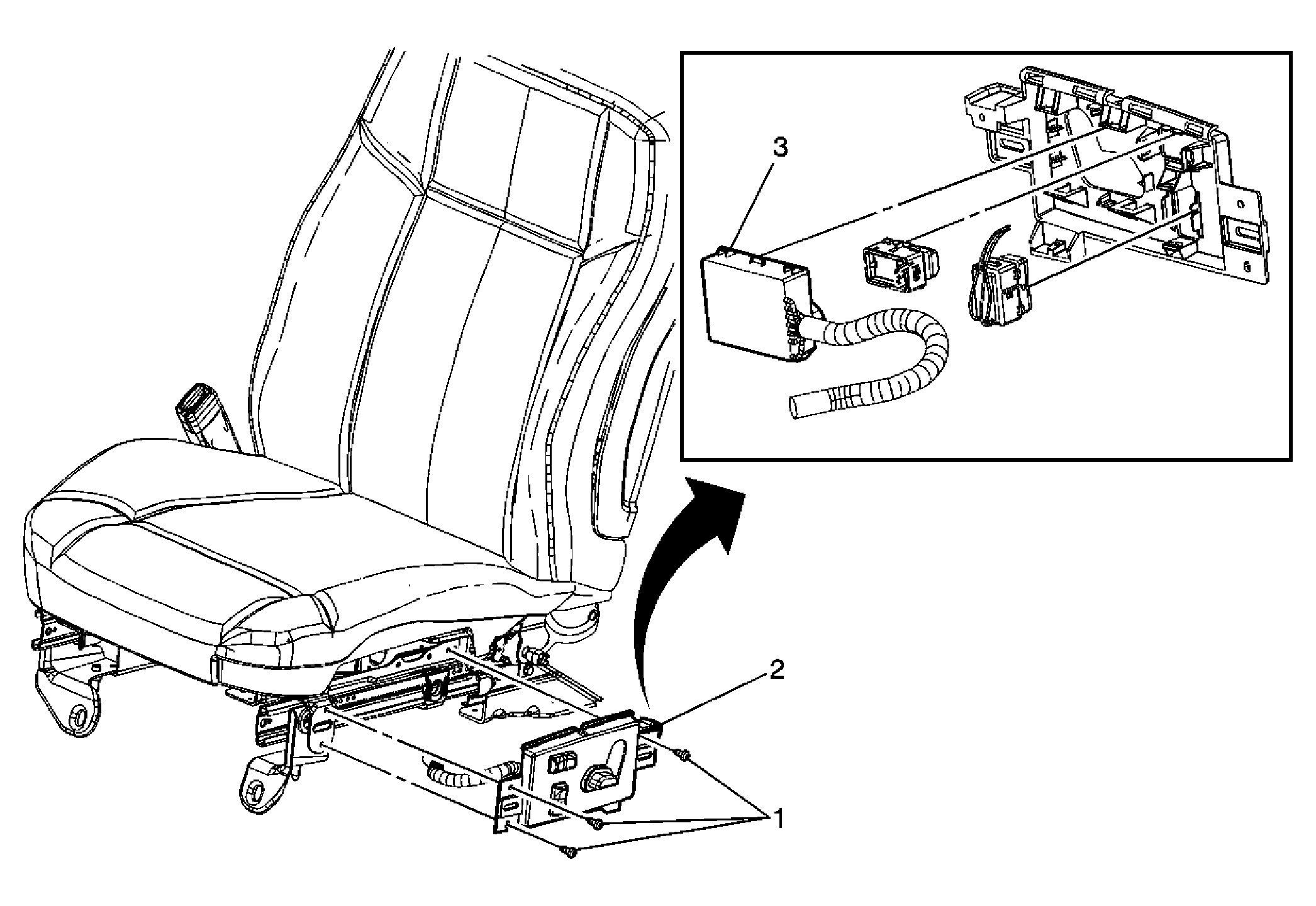

Fig 1: Seat Switch Replacement - Power

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . Remove the front seat trim panels. Refer to Front Seat Trim Panel Replacement (Power Lumbar) or Front Seat Trim Panel Replacement (Manual Lumbar) .
1	Seat Switch Assembly Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Seats Switch Bezel Assembly
3	Seat Adjuster Switch Tip: Disconnect the electrical connector.
