Removal Procedure

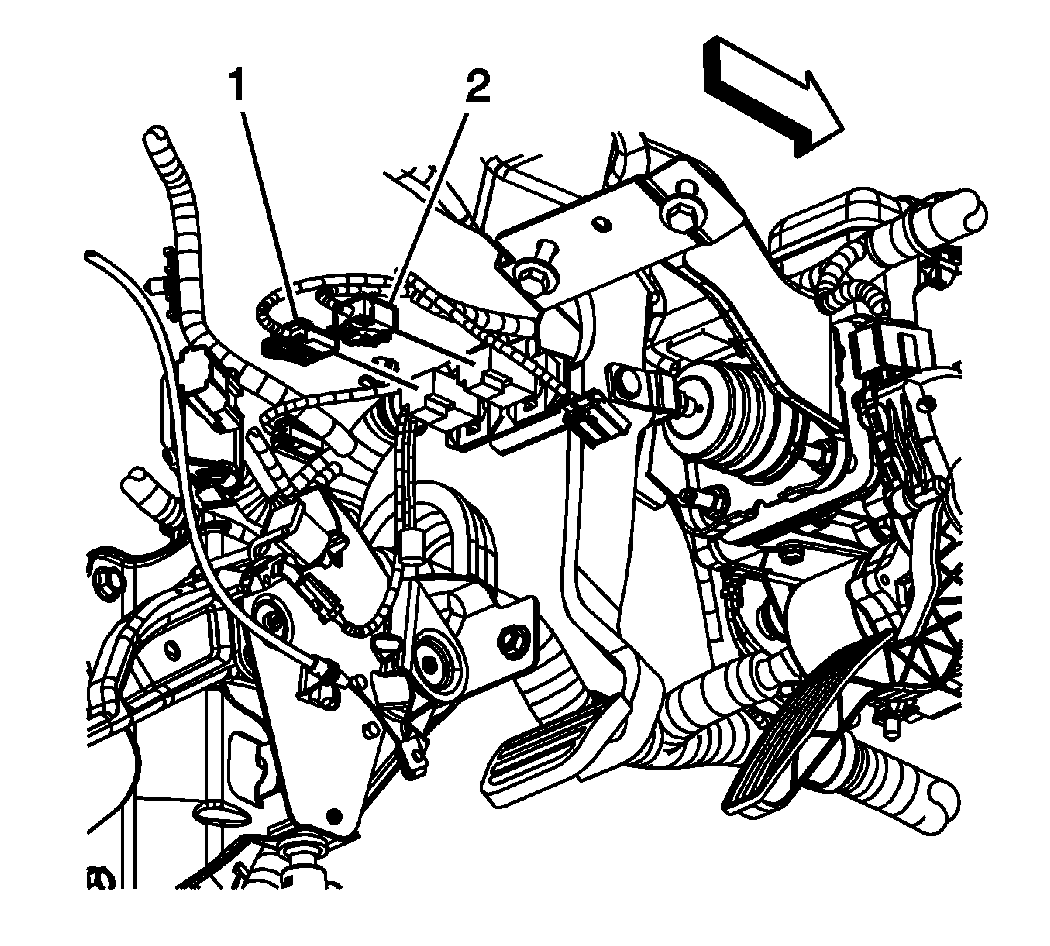

    Fig 1: Locating Cruise Control Release Switch Electrical Connector
    GM1566570Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the cruise control release switch electrical connector (1).
    2. Fig 2: Identifying Cruise Release Switch
    GM1566571Courtesy of GENERAL MOTORS CORP.
  2. Complete the following in order to remove the cruise release switch from the brake pedal bracket:
    1. Rotate the switch counterclockwise.
    2. Pull the switch from the retainer.
    3. Push the locking tabs inward to release the retainer.
