Windshield Wiper Motor Replacement

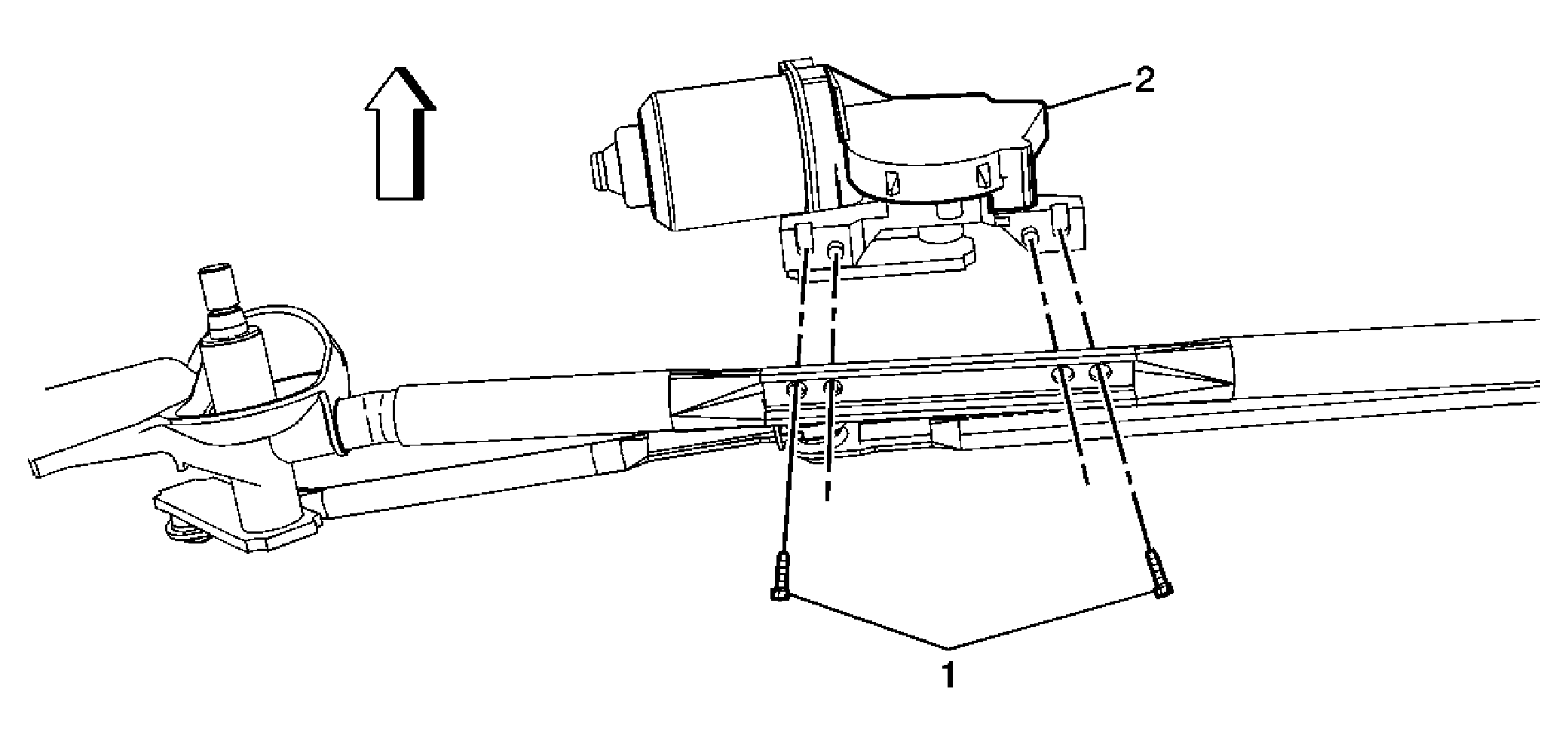

Fig 1: Wiper Motor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front wiper transmission. Refer to Windshield Wiper Transmission Replacement .
1	Transmission to Wiper Motor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Windshield Wiper Motor Tip: The new wiper motor and crank arm position is pre-set, no crank arm to transmission arm alignment is needed. Use a J 39232 Wiper Transmission Separator or equivalent to remove the transmission linkage from the crank arm. Use a J 39529 Transmission Installer or equivalent to secure the transmission linkage to the wiper motor crank arm.
