Windshield Wiper Blade Replacement

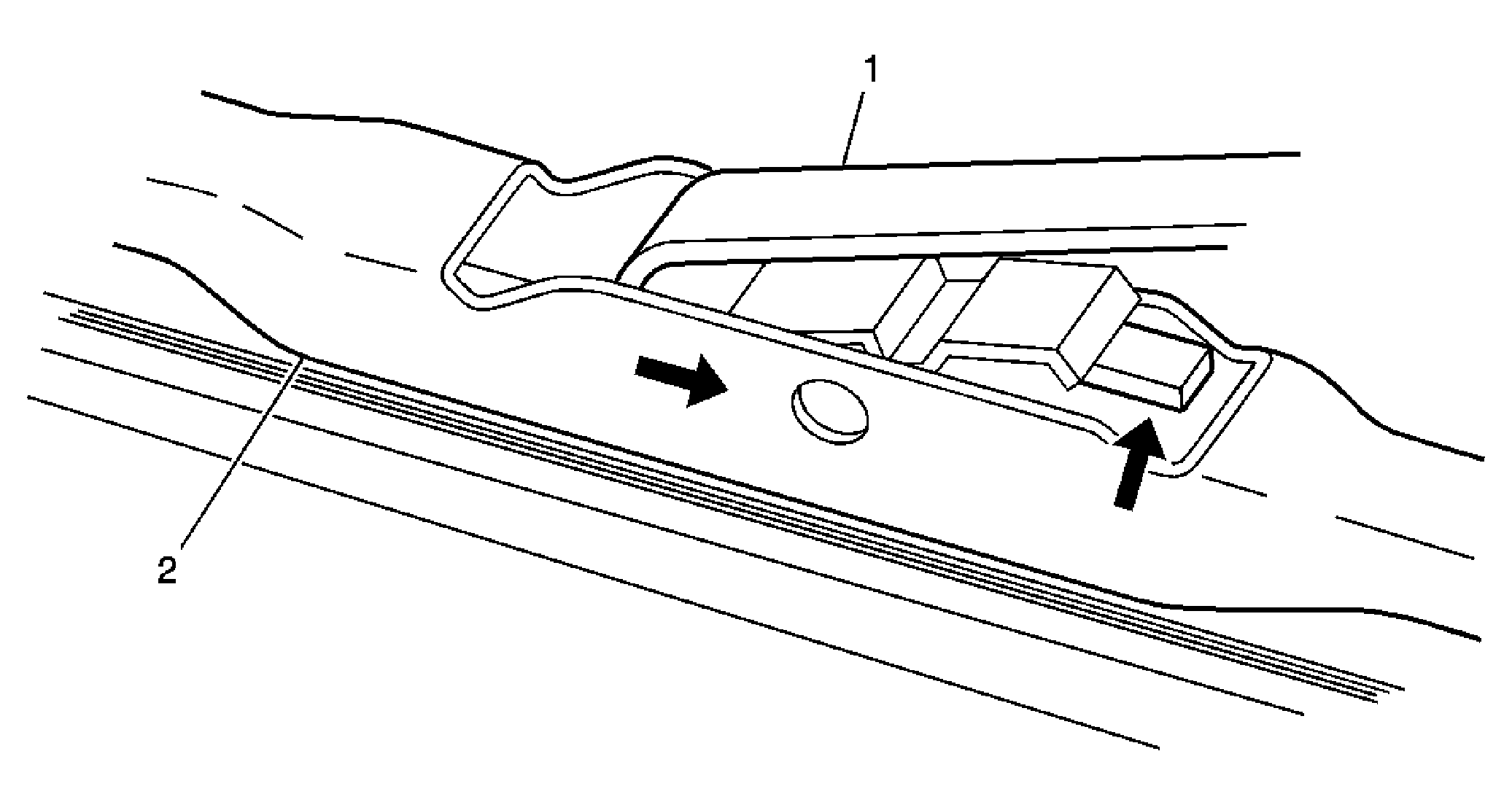

Fig 1: Wiper Arm Blade Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Lift the wiper arm blade off the windshield.
1	Arm, Windshield Wiper (Qty: 1) Tip: Hold the arm and release the locking tab before sliding the blade from the wiper arm.
2	Blade, Windshield Wiper (Qty: 1) Tip: Slide the blade rearward out of the wiper arm sheep hook.
