Windshield Washer Pump Replacement
Windshield Washer Pump Replacement

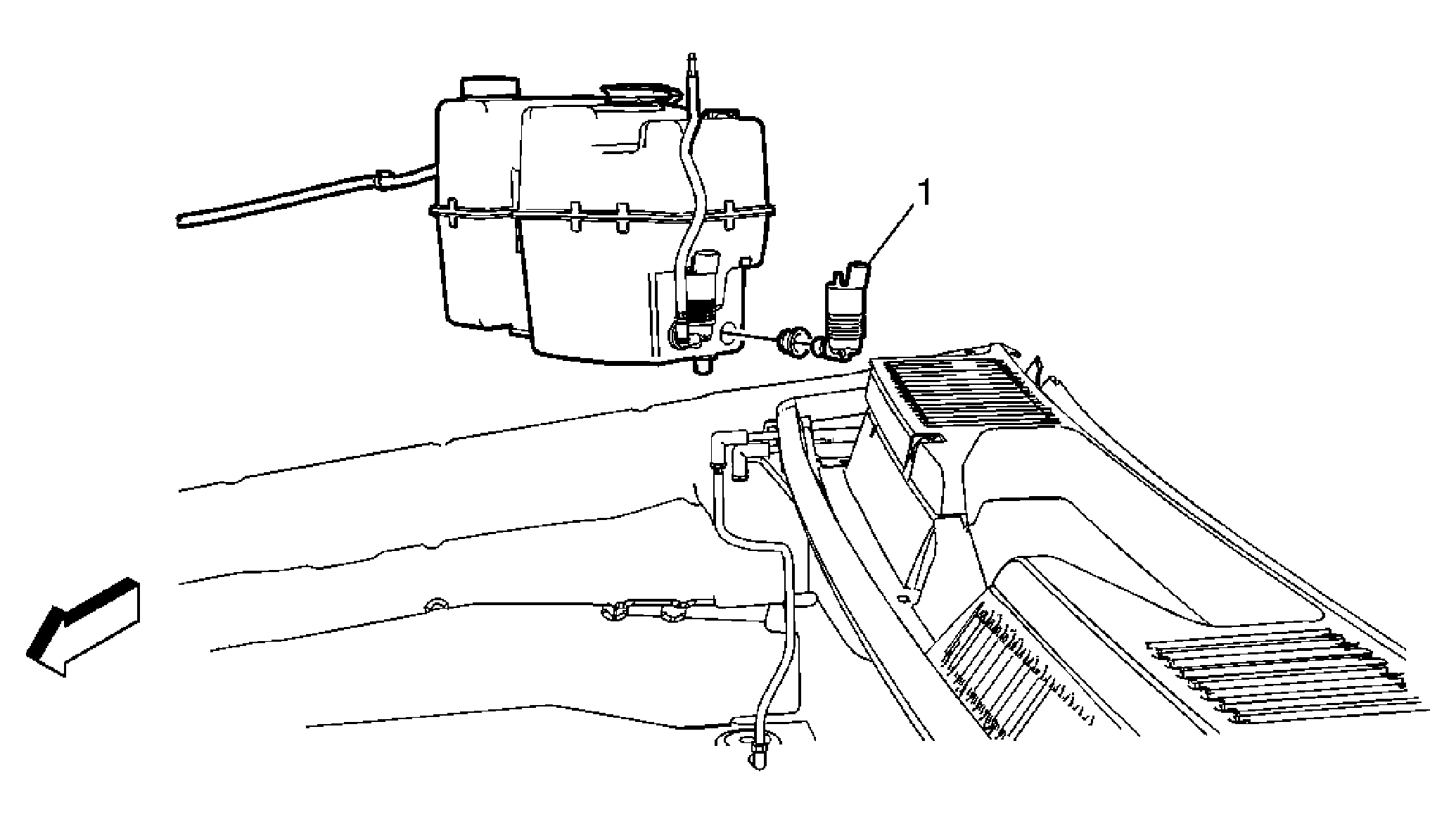

Fig 1: Windshield Washer Pump Replacement
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure
Remove the windshield washer solvent container assembly. Refer to
Windshield Washer Solvent Container Replacement
Disconnect the washer pump jumper hose from the washer pump spout.
Using 2 flat-bladed tools, pry the washer pump from the windshield washer solvent container.
Discard the washer pump container grommet.
1
Windshield Washer Pump
