Lumbar Switch Replacement

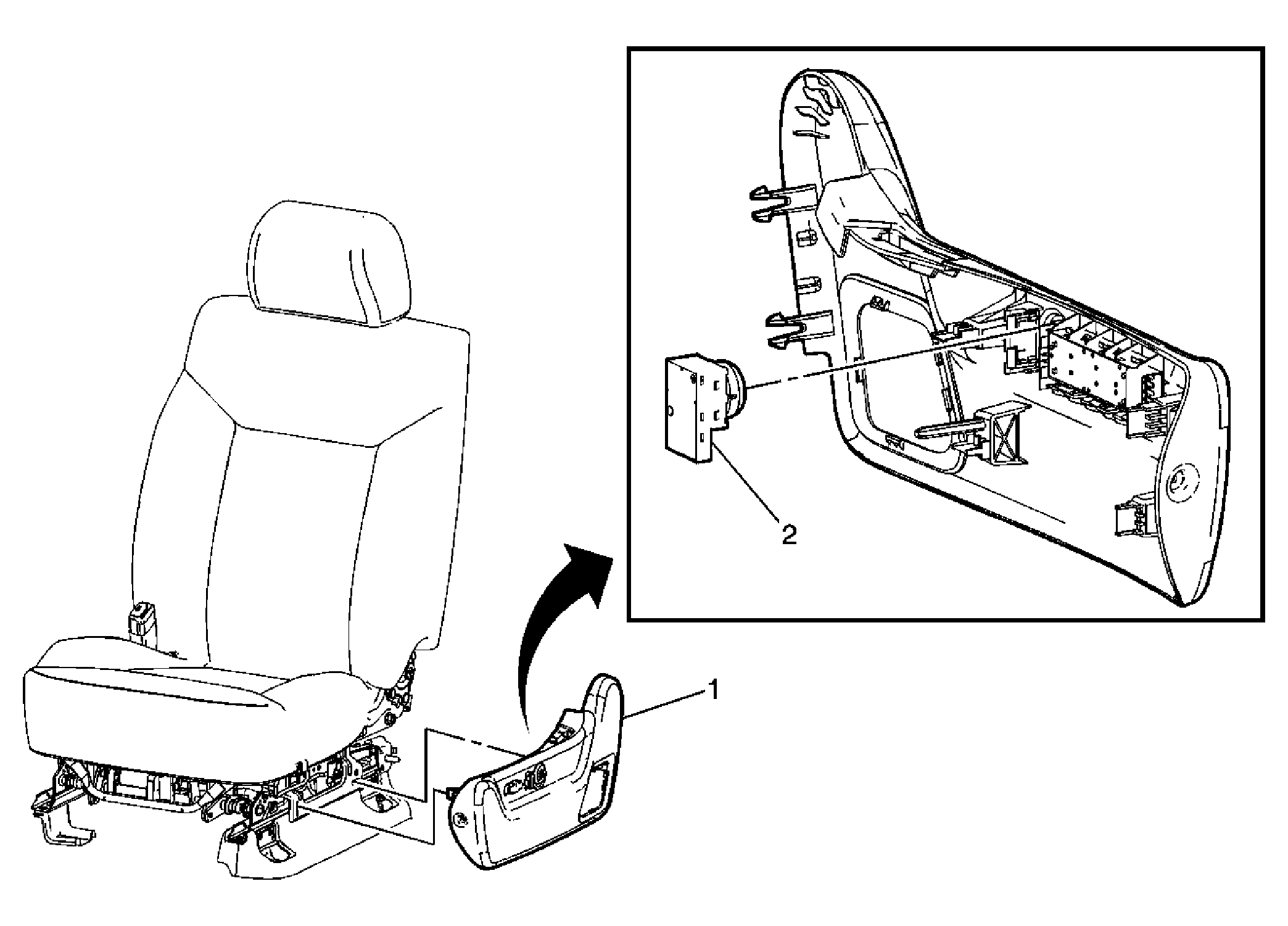

Fig 1: Identifying Lumbar Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Seat Adjuster Outer Finish Cover Refer to Front Seat Cushion Outer Trim Panel Replacement .
2	Lumbar Control Switch Tip: Use a small flat bladed tool to disengage the lumbar control switch from the outer finish cover.
