Moveable Window Schematics
Moveable Window Schematics

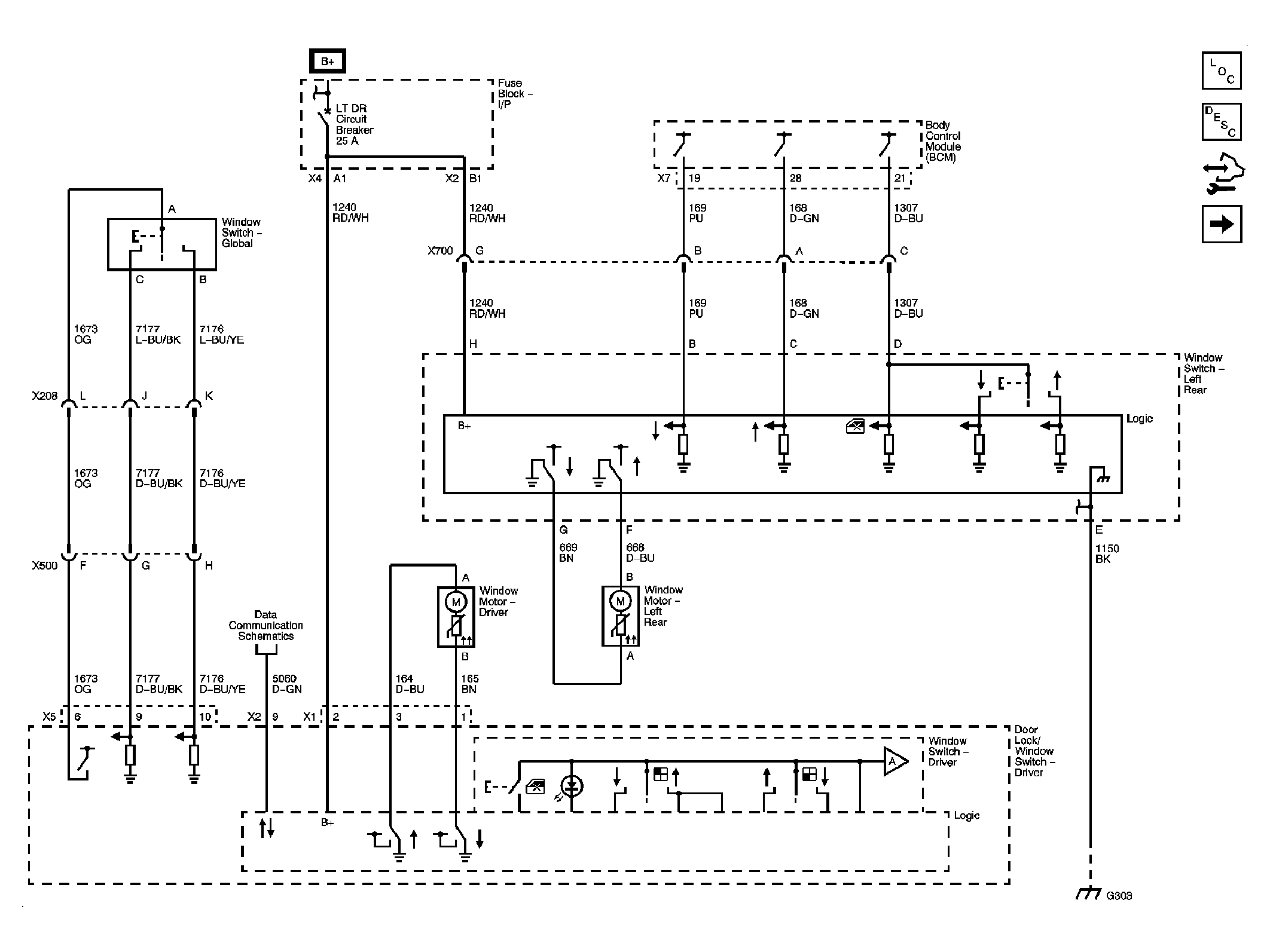

Fig 1: Left Doors
Courtesy of GENERAL MOTORS CORP.

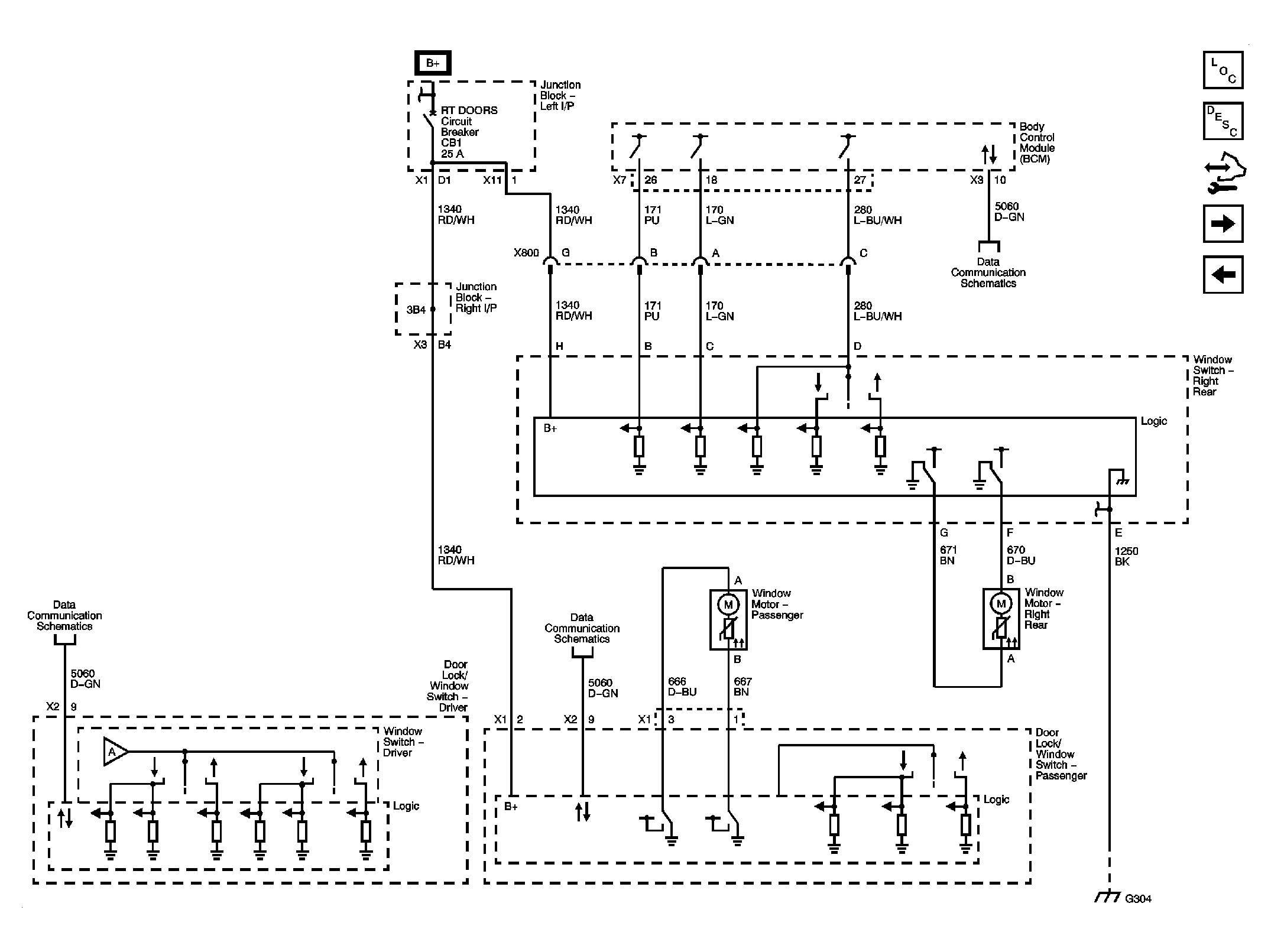

Fig 2: Right Doors
Courtesy of GENERAL MOTORS CORP.

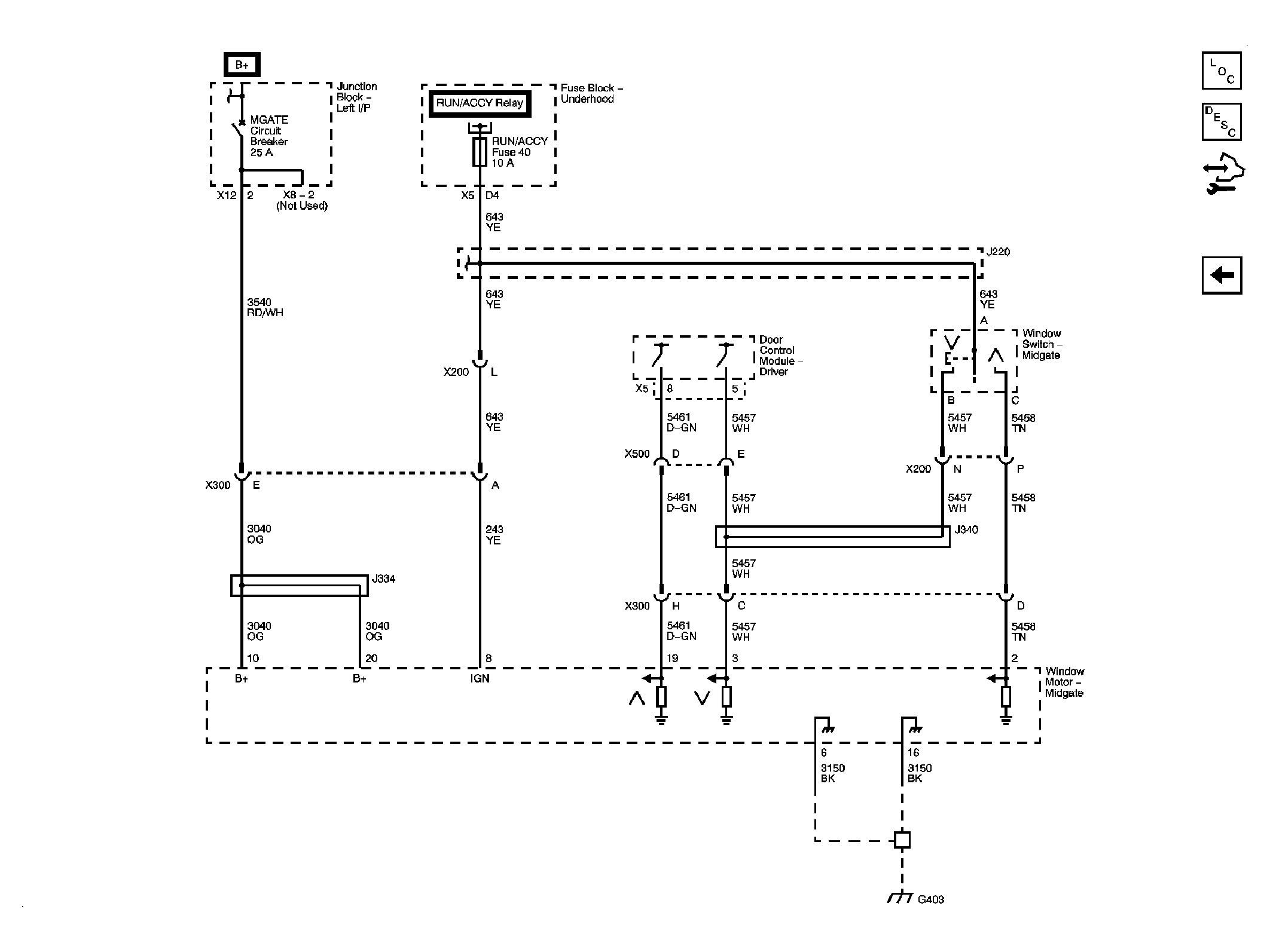

Fig 3: Midgate
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
