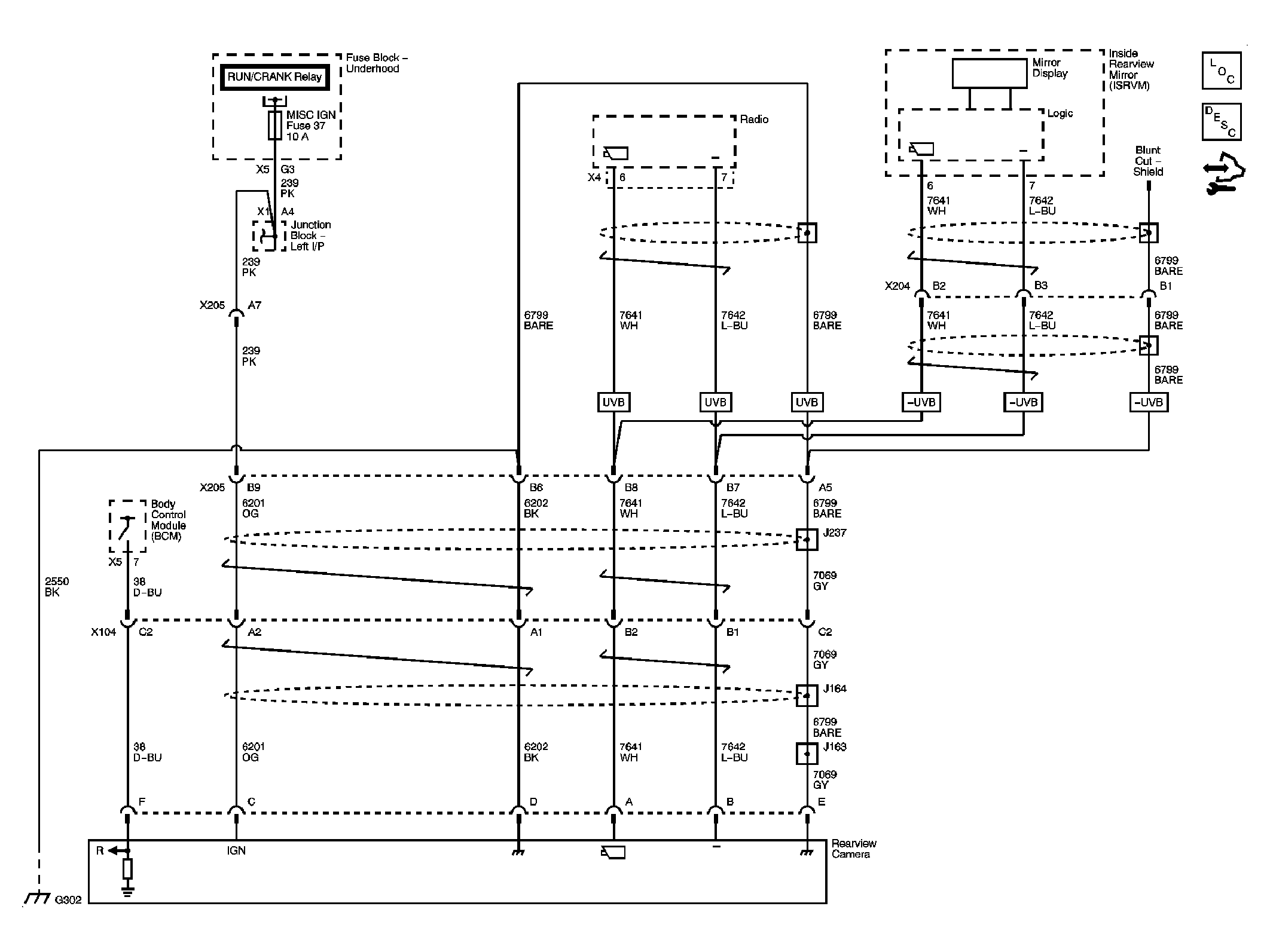

Home >> Hummer >> 2009 >> H2 4D Utility Pickup >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Object Detection System >> Schematic and Routing Diagrams >> Object Detection Schematics
