WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

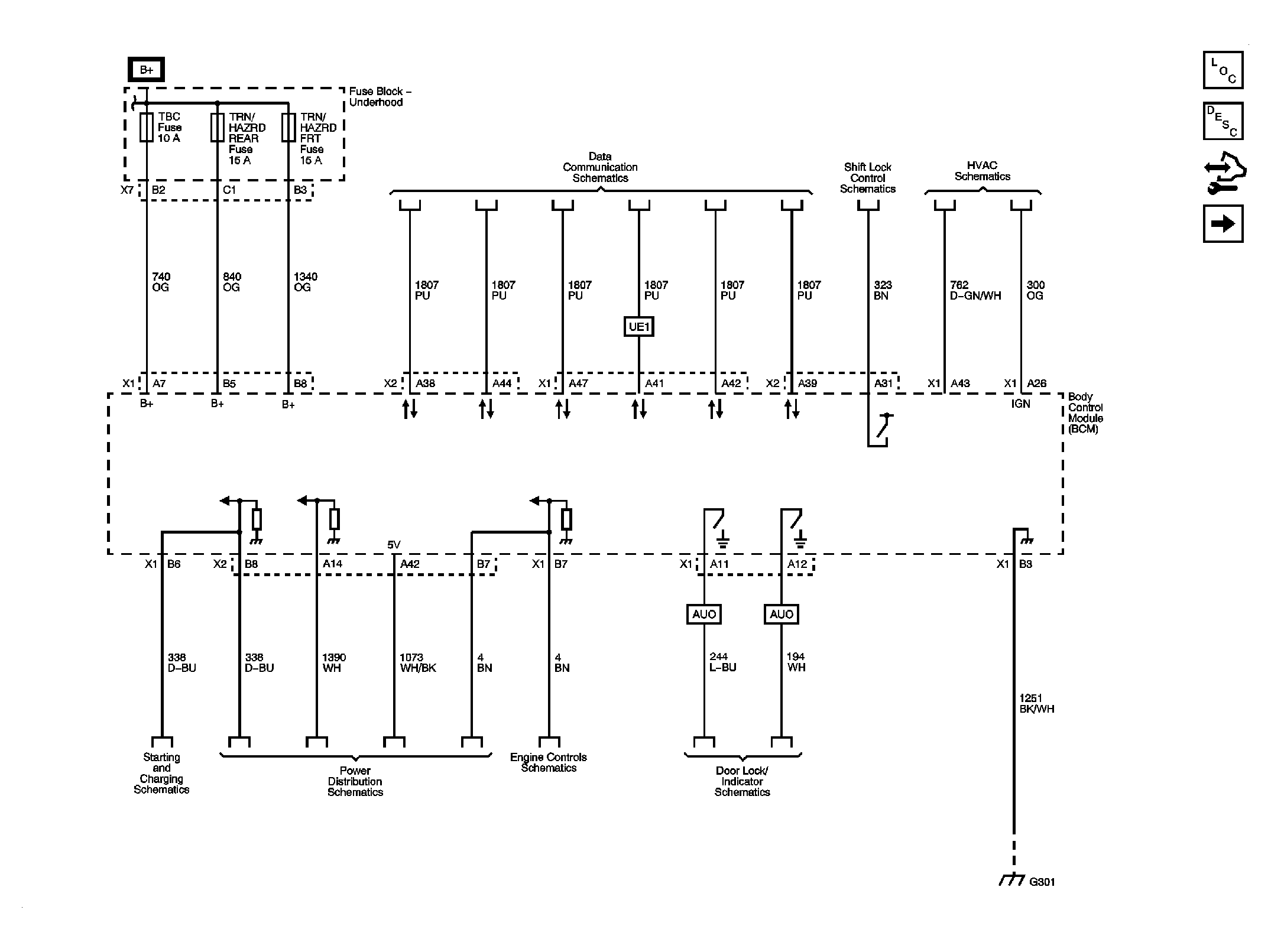

Fig 1: Power, Ground, Serial Data, and Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS CORP.

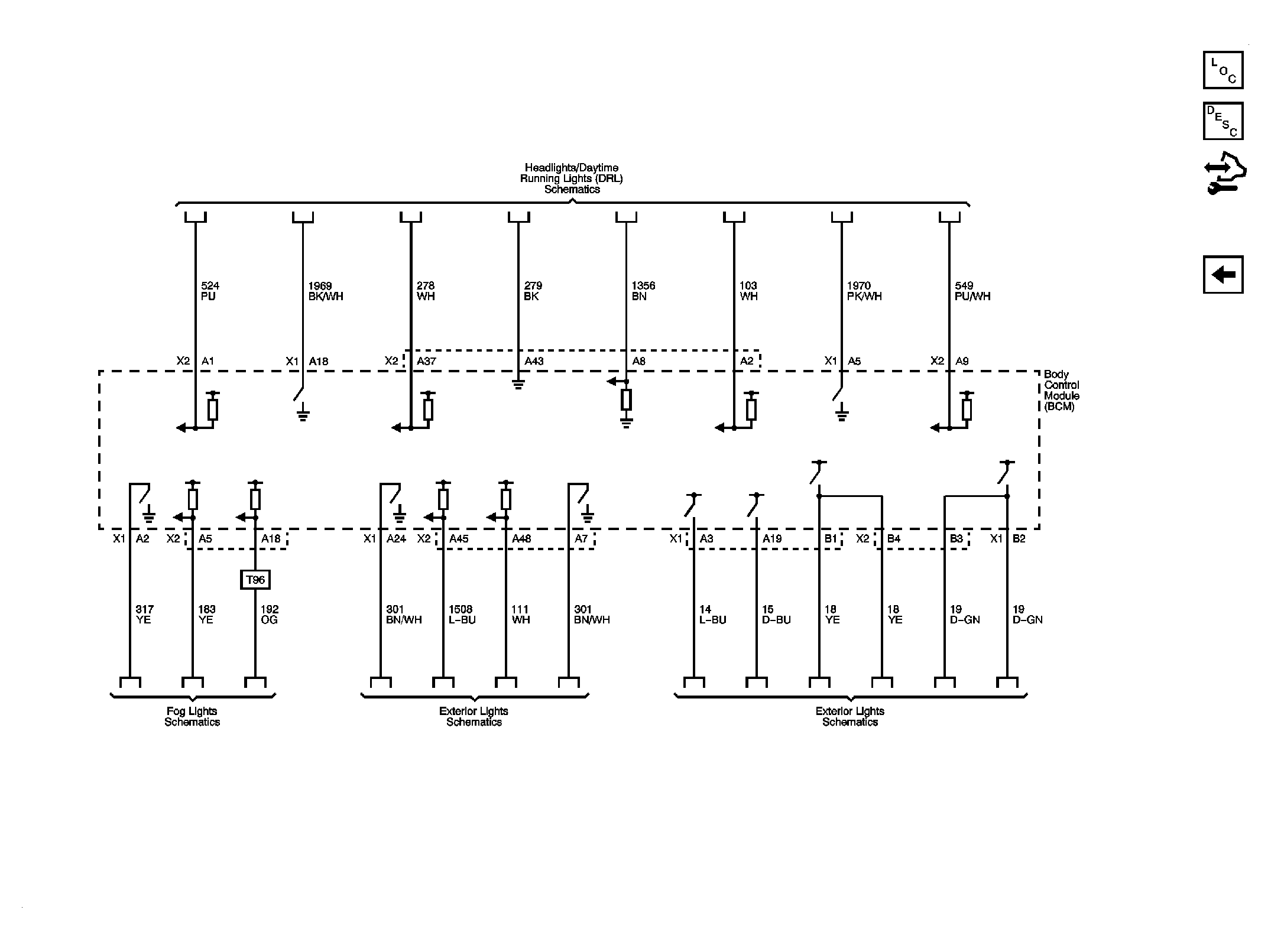

Fig 2: Theft, Horn, Mirror, Power Moding, Brake and Wiper/Washer System References
Courtesy of GENERAL MOTORS CORP.

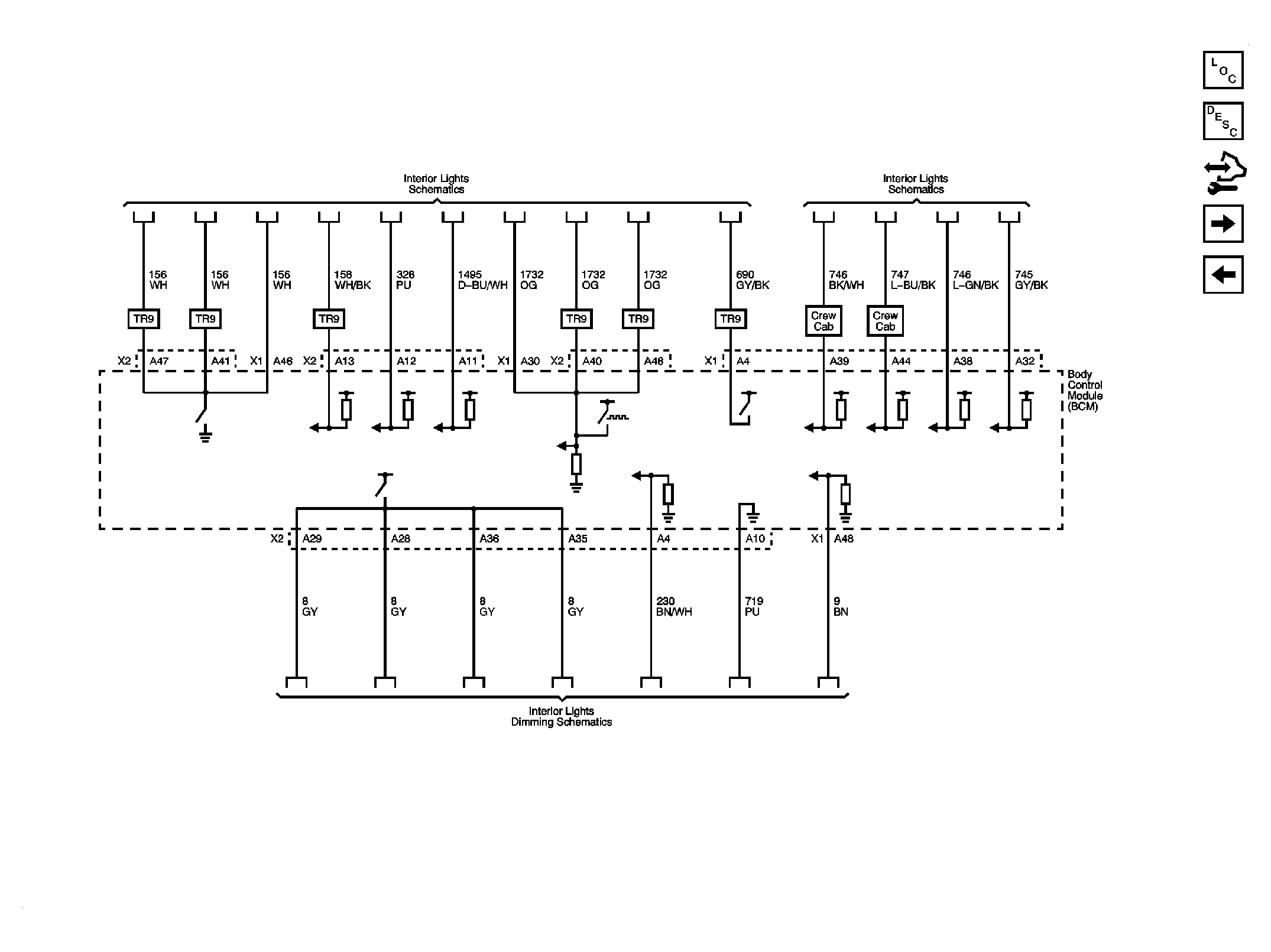

Fig 3: Interior Lights and Interior Lights Dimming References
