Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft insulator to the stabilizer shaft with the slit facing forwards.

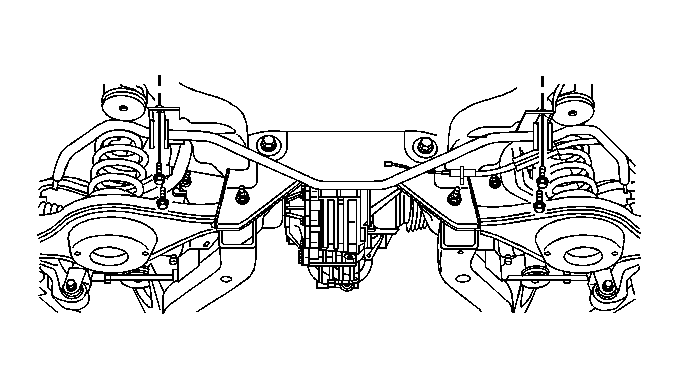

    2. Fig 1: Stabilizer Shaft Bracket Mounting Bolts
    GM858484Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft to the vehicle.
    3. NOTE: Loosely install all components before tightening.
  3. Install the stabilizer shaft brackets and mounting bolts.

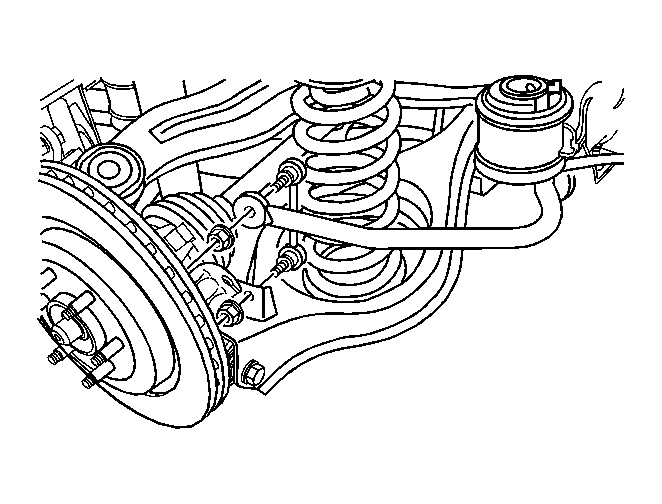

    4. Fig 2: Stabilizer Shaft Links-To-Stabilizer Shaft Nuts
    GM858490Courtesy of GENERAL MOTORS CORP.
  4. Install the stabilizer shaft links to the stabilizer shaft.
    5. CAUTION: Refer to Fastener Caution .
  5. Install the stabilizer shaft links to the stabilizer shaft retaining nuts.
    1. Tighten the stabilizer shaft bracket bolts to 60 N.m (44 lb ft).
    2. Tighten the stabilizer shaft links nuts to 66 N.m (49 lb ft).
  6. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
