Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

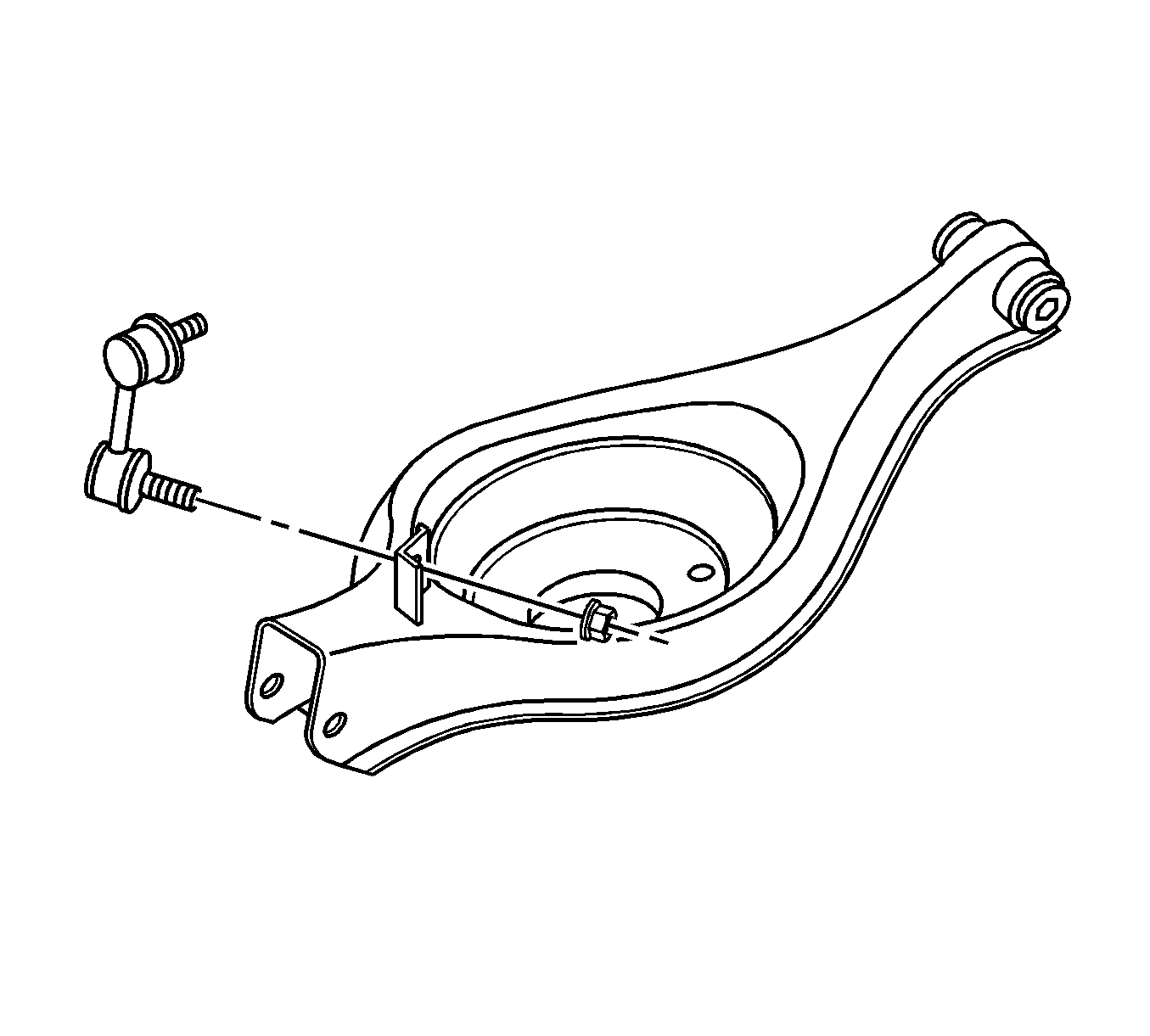

    Fig 1: Stabilizer Shaft Link
    GM1371366Courtesy of GENERAL MOTORS CORP.
  1. Install the stabilizer shaft link to the lower control arm.

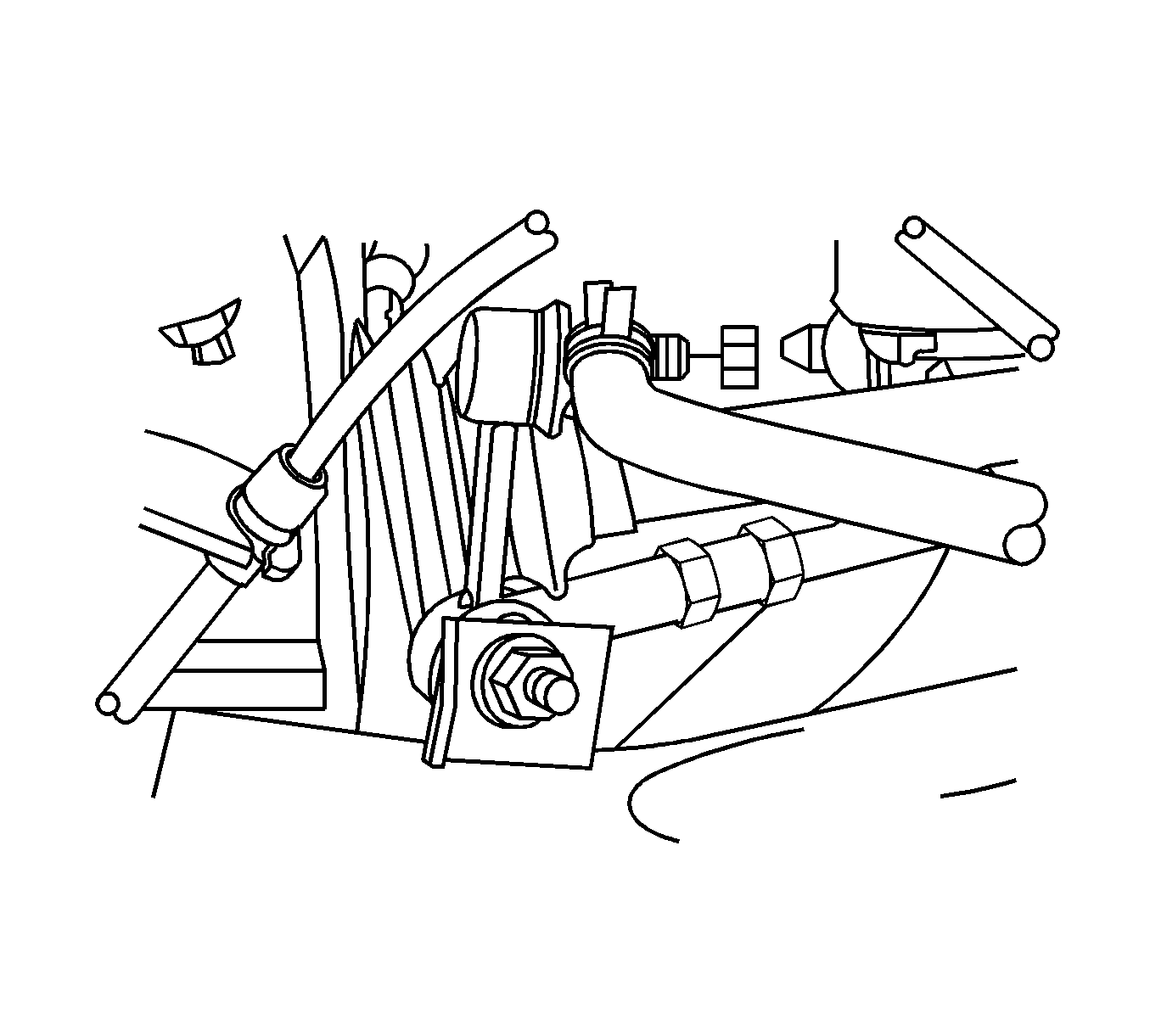

    2. Fig 2: Stabilizer Shaft Link Retaining Nuts
    GM1371368Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft link to the stabilizer shaft.
    3. CAUTION: Refer to Fastener Caution .
    NOTE: Hold the shaft link stud with a hex tool to prevent damage to the link seal.
  3. Install the stabilizer shaft link retaining nuts and tighten to 66 N.m (49 lb ft).
  4. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  5. Lower the vehicle.
