Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 9519-E  and J 21474  to the differential bushing.

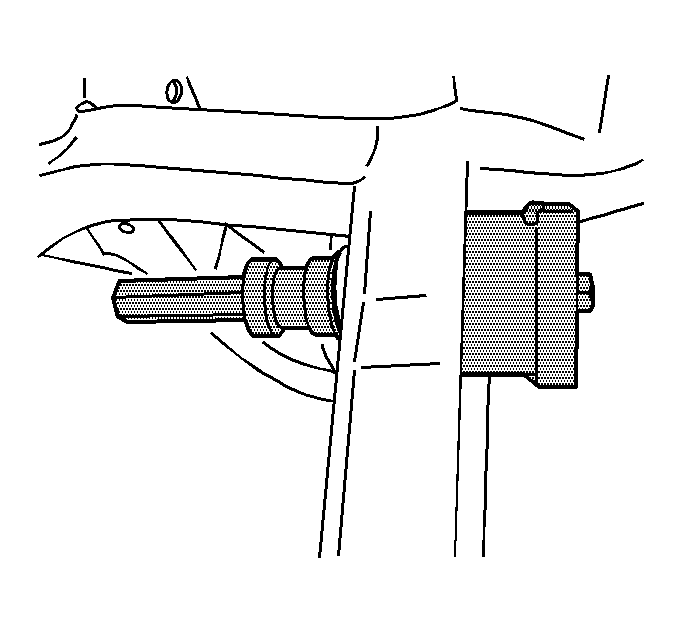

    2. Fig 1: Removing/Installing Differential Bushing
    GM827194Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The differential bushing is not fully seated in the bore and has voids that are in the horizontal position. Note and mark the position of the bushings prior to removal and press the new bushings in to the same position.
  2. Using the J 9519-E  and J 21474  , install the differential bushing to the vehicle.
  3. Install the differential to the vehicle. Refer to Differential Replacement .
  4. Lower the vehicle.
