Installation Procedure
WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

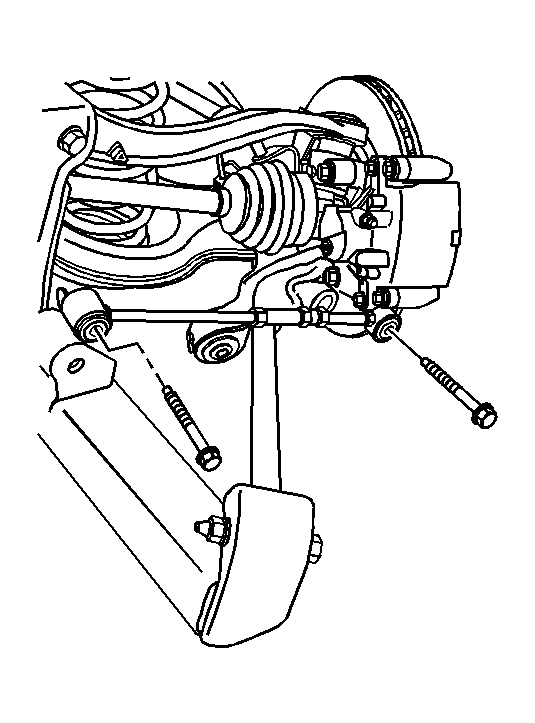

- Install the adjustment link to the vehicle.
- Install the adjustment link to knuckle mounting bolt and tighten to 160 N.m (118 lb ft).
- Install the adjustment link to frame mounting bolt.
- Install the adjustment link to frame mounting nut and tighten to 170 N.m (125 lb ft).
- Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
- Adjust the rear toe. Refer to Rear Toe Adjustment .
CAUTION:
Refer to Fastener Caution
.
NOTE:
Loosely install all fasteners before tightening.
