Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the negative battery cable to the engine.

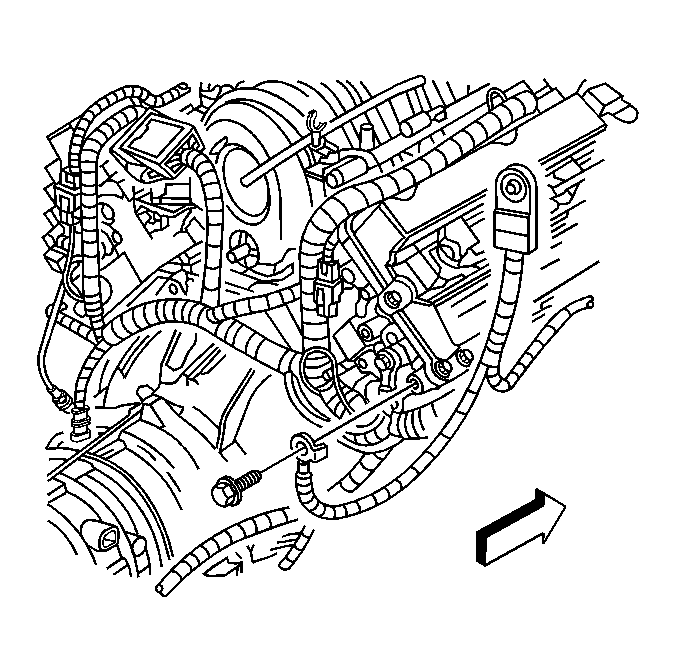

    2. Fig 1: Battery Negative Cable-To-Engine Block Bolt
    GM1201076Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the bolt securing the negative battery cable to the engine block and tighten to 25 N.m (18 lb ft).

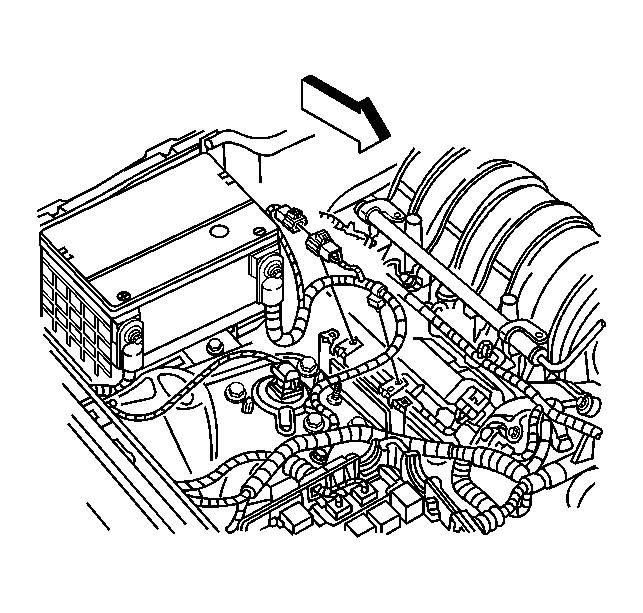

    3. Fig 2: Instrument Panel Harness Connector
    GM1201078Courtesy of GENERAL MOTORS CORP.
  3. Connect the cable retaining clips to the engine bracket.
  4. Connect the instrument panel harness connector to the negative battery cable.
    5. Fig 3: Battery Cables, Retaining Clip & Bolt To Shock Tower
    GM1201077Courtesy of GENERAL MOTORS CORP.
  5. Install the bolt securing the negative battery cable to the shock tower and tighten to 10 N.m (89 lb in).
  6. Connect the cable retaining clip to the stud on the shock tower.
    7. Fig 4: Instrument Panel (I/P) Harness Electrical Connector
    GM1484712Courtesy of GENERAL MOTORS CORP.
  7. Connect the I/P harness electrical connector (1) to the battery current sensor.
  8. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Side Post) .
