Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

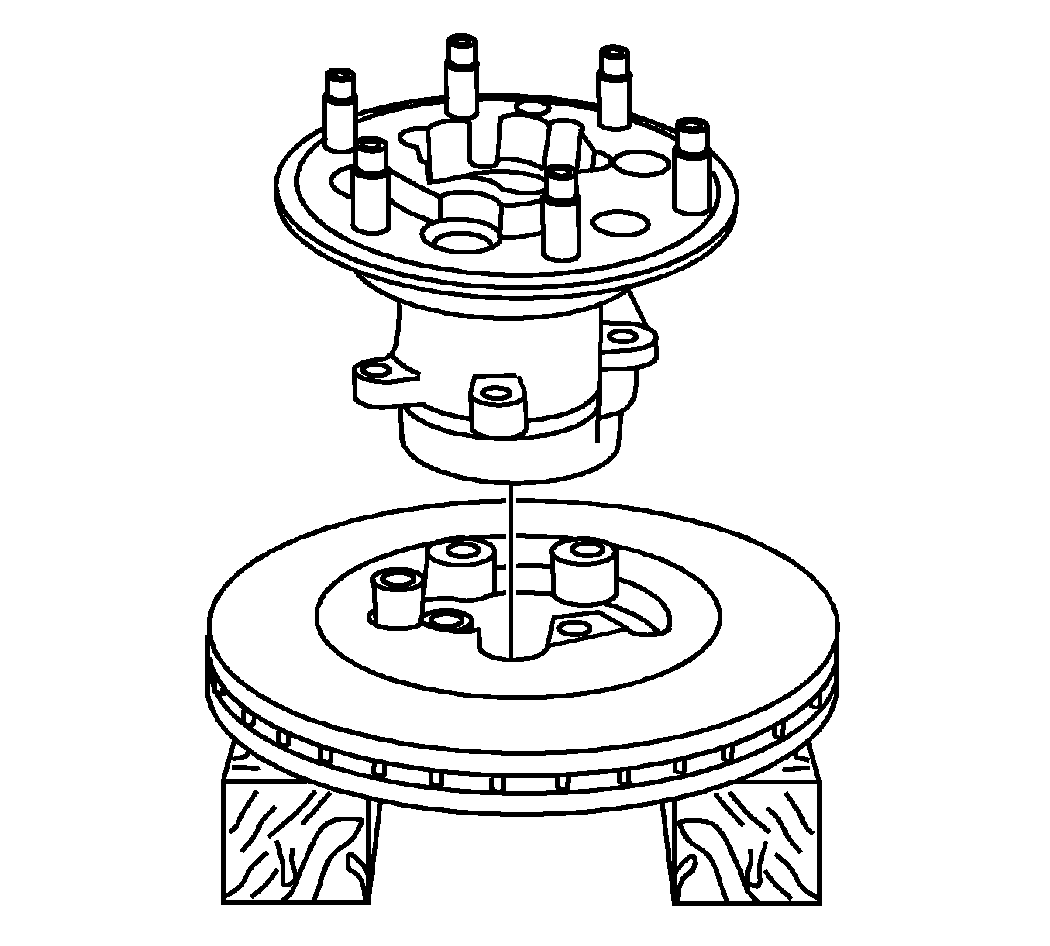

    Fig 1: View Of Brake Rotor
    GM1241355Courtesy of GENERAL MOTORS CORP.
  1. Position the wheel bearing/hub on the brake rotor.

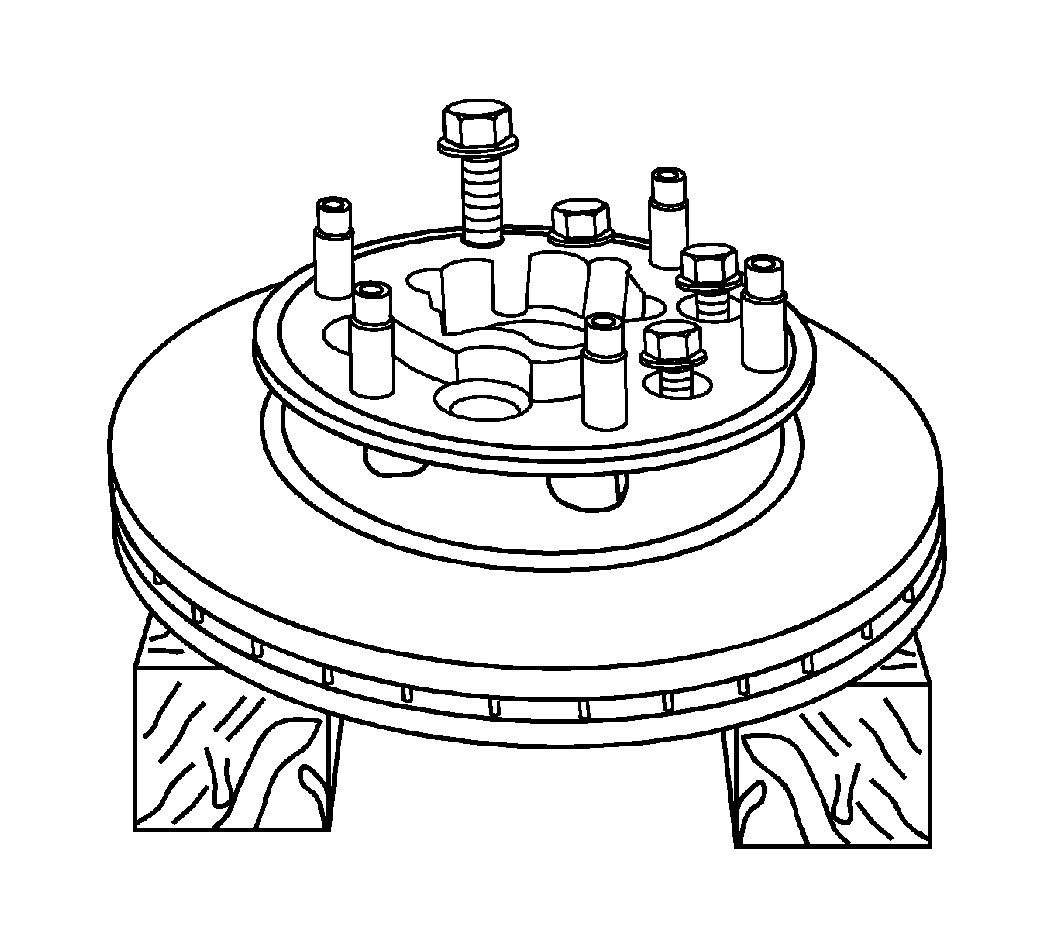

    2. Fig 2: View Of Wheel Hub/Speed Sensor To Brake Rotor Bolts
    GM1241354Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
    IMPORTANT: The following service procedure is to be performed on a flat surface and to ensure the brake rotor is securely attached to the hub assembly prior to the final torquing procedure. DO NOT use air tools of any type for this procedure.
  2. Install the wheel bearing/hub mounting bolts.

    Tighten:

    1. Tighten the mounting bolts in a criss-cross pattern to 20 N.m (15 lb ft).
    2. Tighten again in a criss-cross pattern to 110 N.m (81 lb ft).

    3. Fig 3: View Of Wheel Bearing/Hub, Brake Rotor Assembly
    GM1253296Courtesy of GENERAL MOTORS CORP.
  3. Install the wheel bearing/hub, brake rotor assembly in the steering knuckle. Refer to Wheel Hub/Speed Sensor Replacement .
  4. Lower the vehicle.

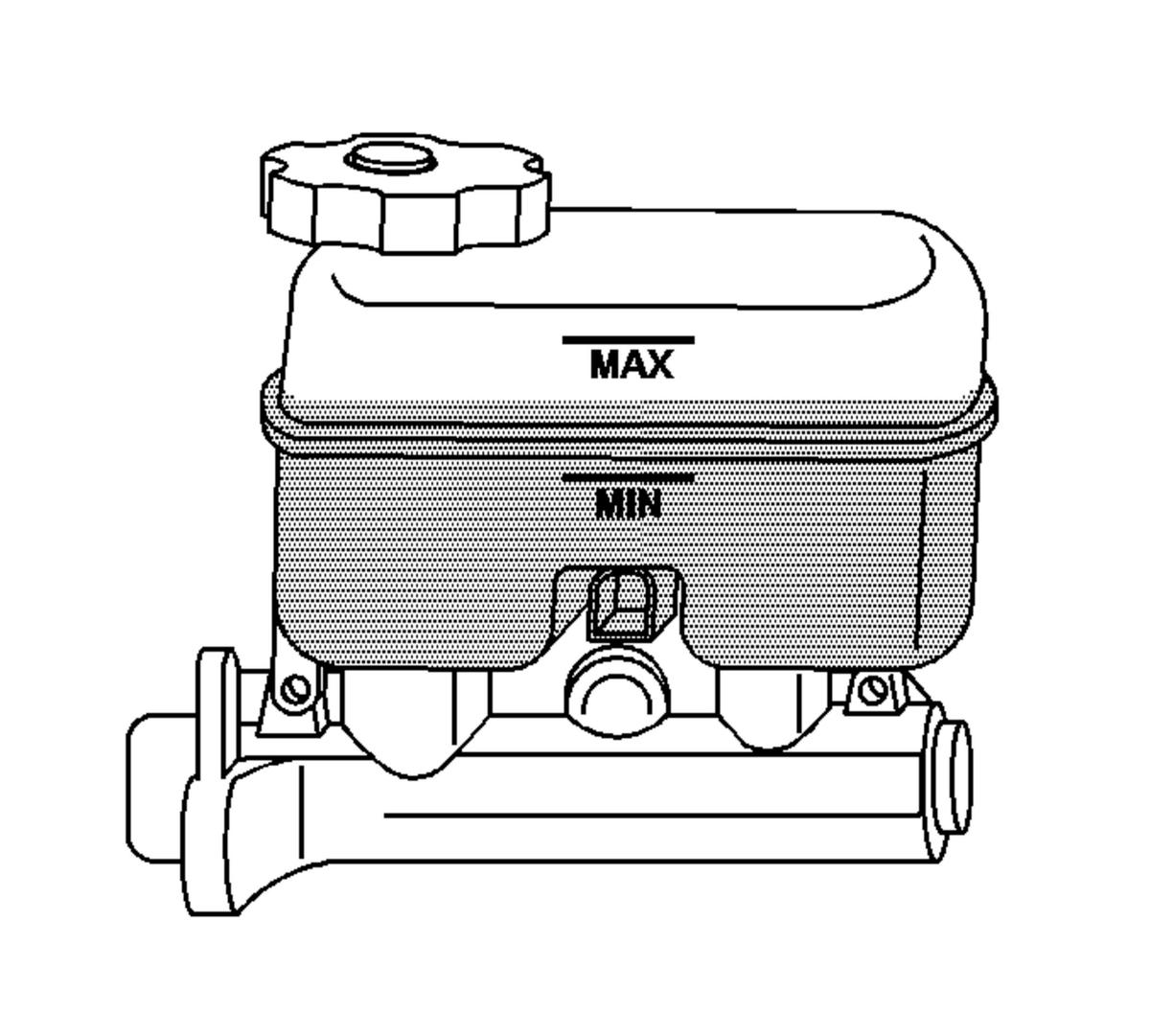

    5. Fig 4: View Of Half-Full Master Cylinder Reservoir
    GM787456Courtesy of GENERAL MOTORS CORP.
  5. Inspect the fluid level. Refer to Master Cylinder Reservoir Filling .
  6. Burnish the brakes. Refer to Brake Pad and Rotor Burnishing .
