Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

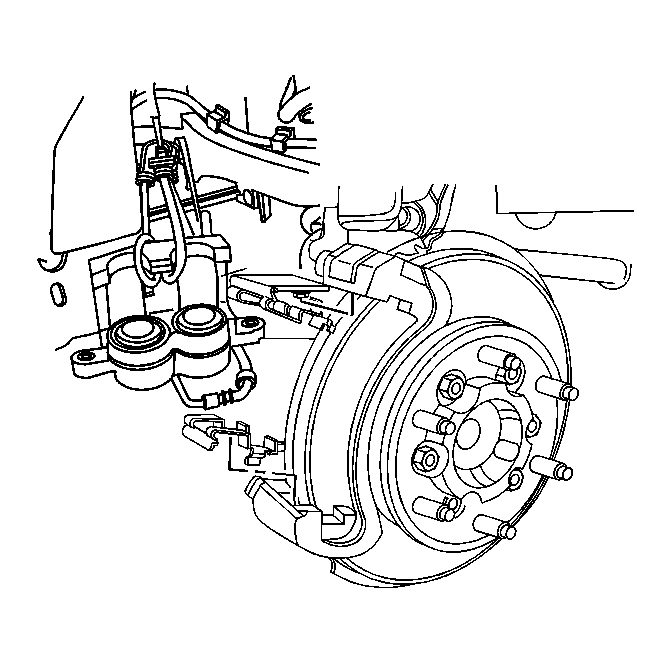

    Fig 1: View Of Brake Pad Retaining Clips
    GM1241374Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When installing the new brake pads, DO NOT reuse the old retaining clips. Use only the NEW retaining clips that come with the brake pads.
  1. Install the NEW brake pads retaining clips.
    2. Fig 2: View Of Outboard Brake Pad
    GM1241369Courtesy of GENERAL MOTORS CORP.
  2. Install the outboard brake pad.
    3. Fig 3: View Of Inboard Brake Pad
    GM1241371Courtesy of GENERAL MOTORS CORP.
  3. Install the inboard brake pad.
    4. Fig 4: Lower Mounting Bolt Removed From Guide Pin
    GM786430Courtesy of GENERAL MOTORS CORP.
  4. Lower the brake caliper back into it's proper location.
    5. NOTE: Refer to Fastener Notice .
  5. Install the lower brake caliper guide pin bolt.

    Tighten:  Tighten the brake caliper guide pin bolt to 40 N.m (29 lb ft).

    6. Fig 5: View Of Tire & Wheel Assembly
    GM1253298Courtesy of GENERAL MOTORS CORP.
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
  8. Add brake fluid to the master cylinder if needed, so the fluid is between the maximum and minimum level.
  9. Pump the brake slowly and firmly to seat the brake pads.
    10. CAUTION: Refer to Firm Brake Pedal Caution .
    IMPORTANT: The following service procedure may need to be repeated to obtain a firm brake pedal.
  10. Pump the brakes slowly and firmly to seat the brake pads.
    1. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
    2. Slowly release the pedal.
    3. Wait 15 seconds, apply the pressure to check for a firm pedal. This will properly seat the brake caliper pistons and brake pads.

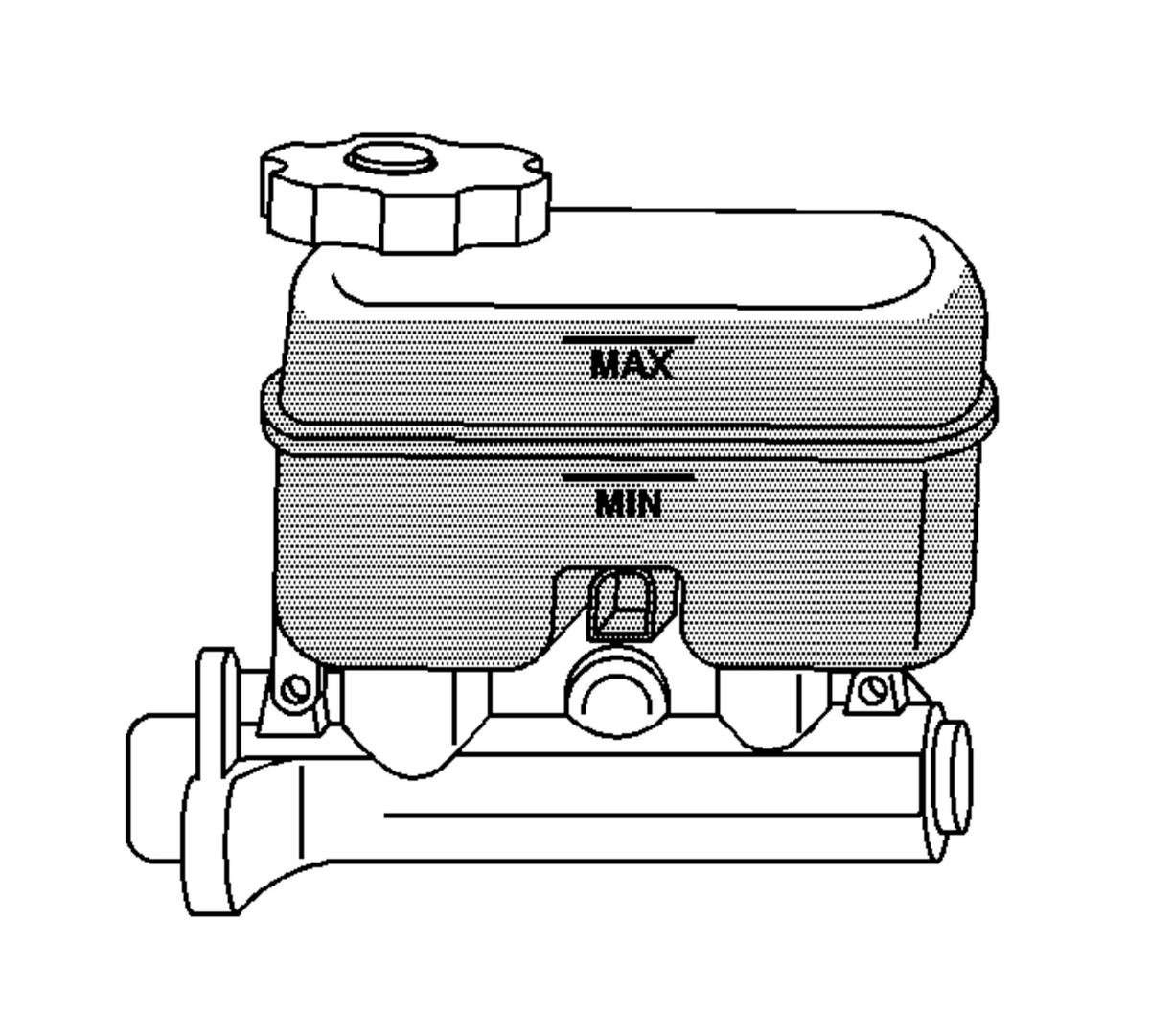

    11. Fig 6: View Of Full Master Cylinder Reservoir MAX And MIN Marks
    GM787455Courtesy of GENERAL MOTORS CORP.
  11. Fill the master cylinder to the required level. Refer to Master Cylinder Reservoir Filling .
  12. Burnish the new brake pads. Refer to Brake Pad and Rotor Burnishing .
