Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

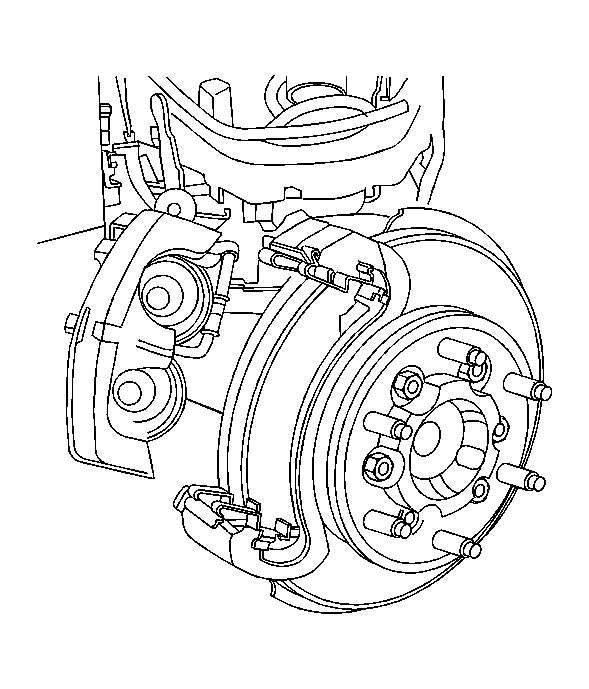

    Fig 1: Identifying Brake Caliper
    GM1241368Courtesy of GENERAL MOTORS CORP.
  1. Position the brake caliper assembly on the mounting bracket.
    2. Fig 2: View Of Brake Caliper Pin Bolts
    GM1241367Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the guide pin bolts.

    Tighten:  Tighten the guide pin bolts to 40 N.m (29 lb ft).

  3. Remove the rubber plugs from the brake hose.
    4. Fig 3: View Of Brake Hose Gaskets & Bolt
    GM1360988Courtesy of GENERAL MOTORS CORP.
  4. Install the NEW copper gaskets and bolt on the brake hose.

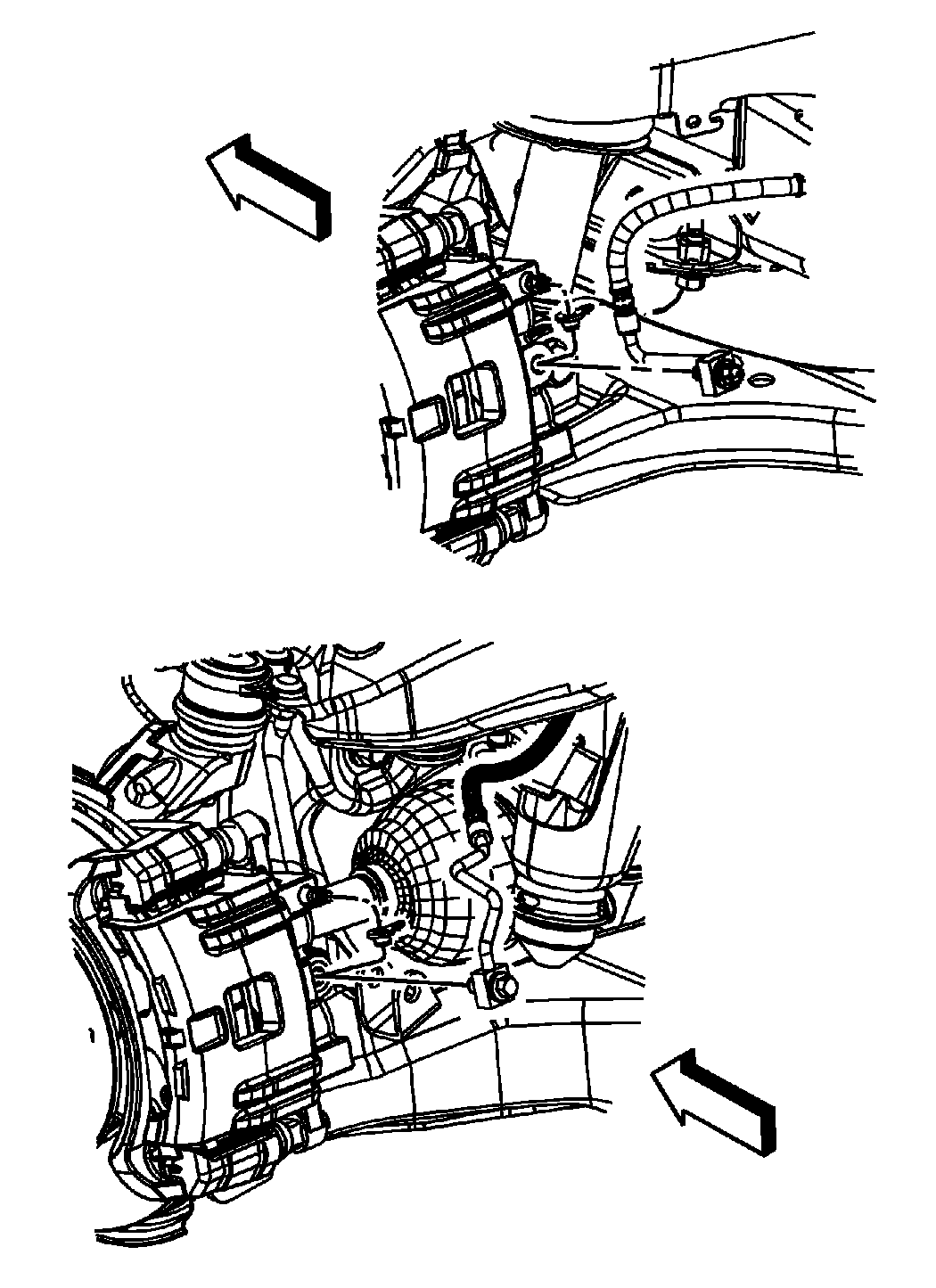

    5. Fig 4: View Of Brake Hose
    GM1339849Courtesy of GENERAL MOTORS CORP.
  5. Install the brake hose on the brake caliper.

    Tighten:  Tighten the brake hose bolt to 40 N.m (29 lb ft).

  6. Bleed the system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .

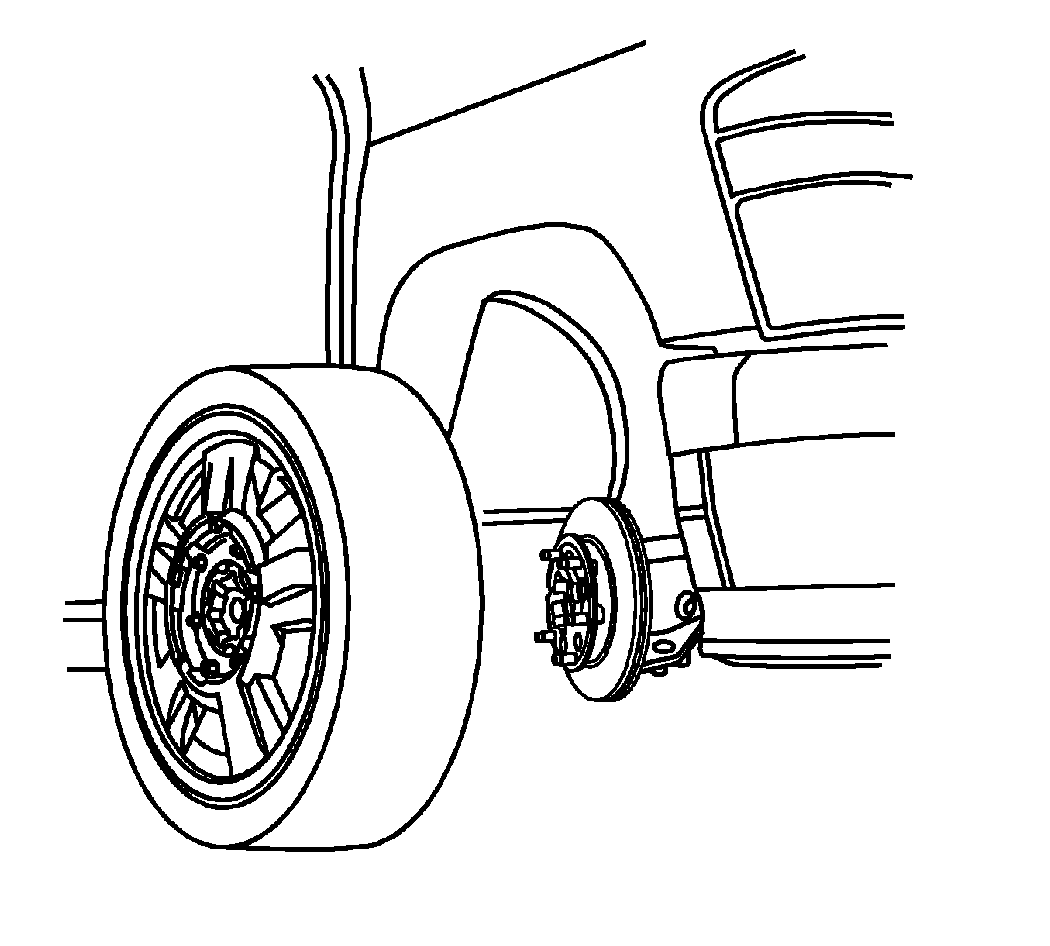

    7. Fig 5: View Of Tire & Wheel Assembly
    GM1253298Courtesy of GENERAL MOTORS CORP.
  7. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
