Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

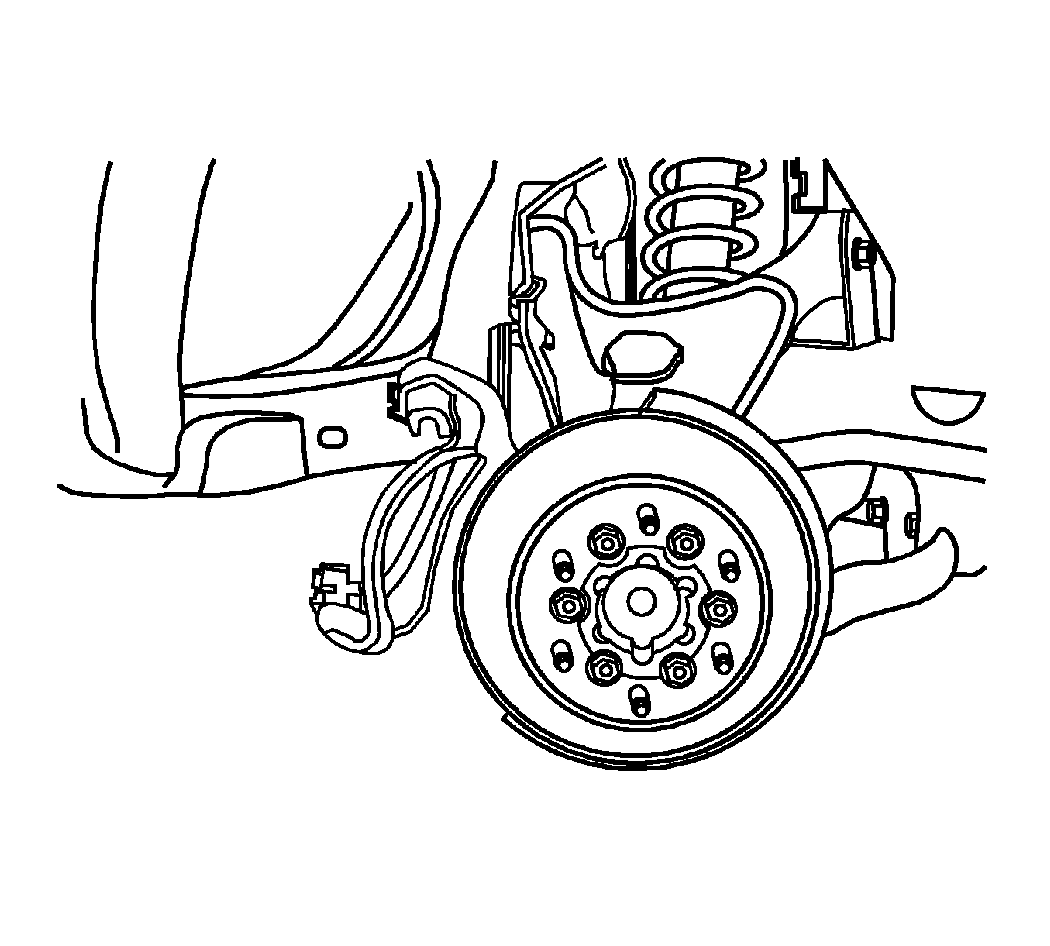

    Fig 1: View Of Brake Caliper Mounting Bracket
    GM1241358Courtesy of GENERAL MOTORS CORP.
  1. Position the mounting bracket on the steering knuckle.

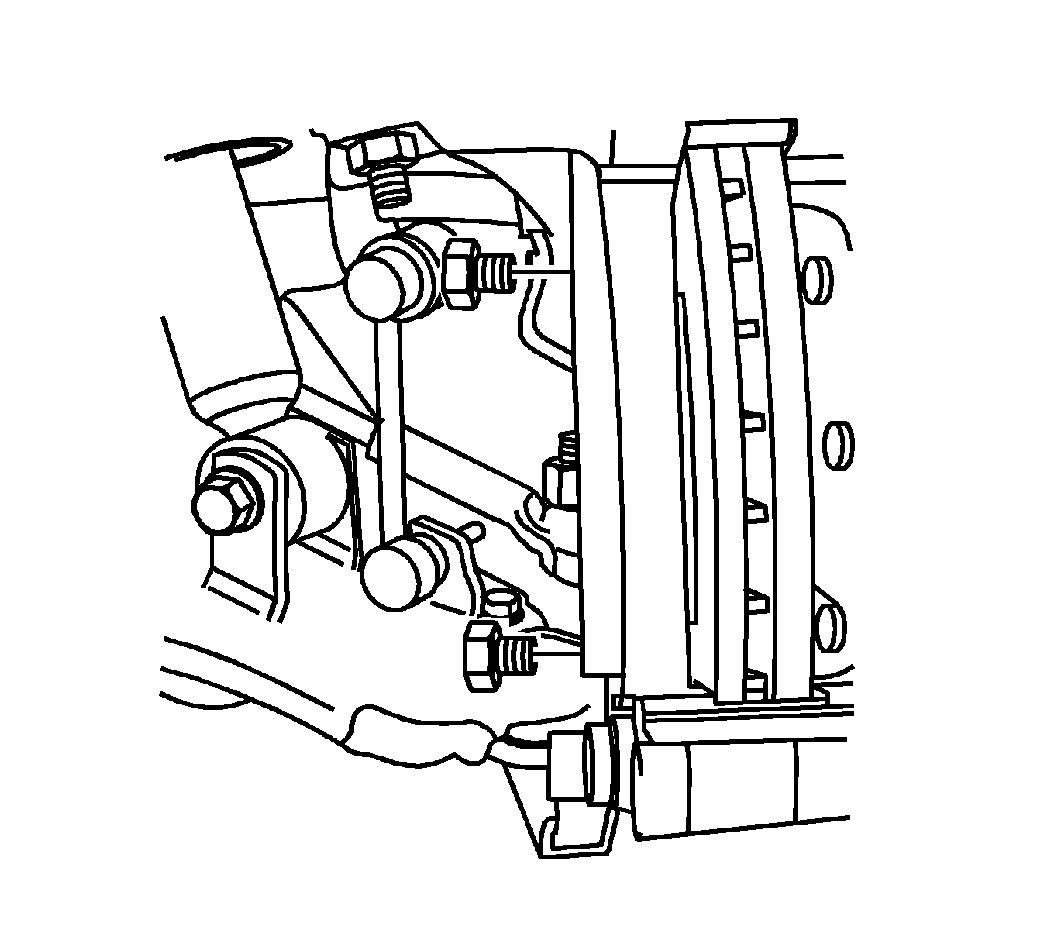

    2. Fig 2: View Of Brake Caliper Mounting Bracket Mounting Bolts
    GM1241469Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the mounting bolts bracket.

    Tighten:  Tighten the mounting bolts to 175 N.m (129 lb ft).

  3. Install the brake pads in the mounting bracket.
    4. Fig 3: Identifying Brake Caliper
    GM1241368Courtesy of GENERAL MOTORS CORP.
  4. Install the brake caliper. Refer to Brake Caliper Replacement .
