Windshield Washer Solvent Container Replacement (With CE4)

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

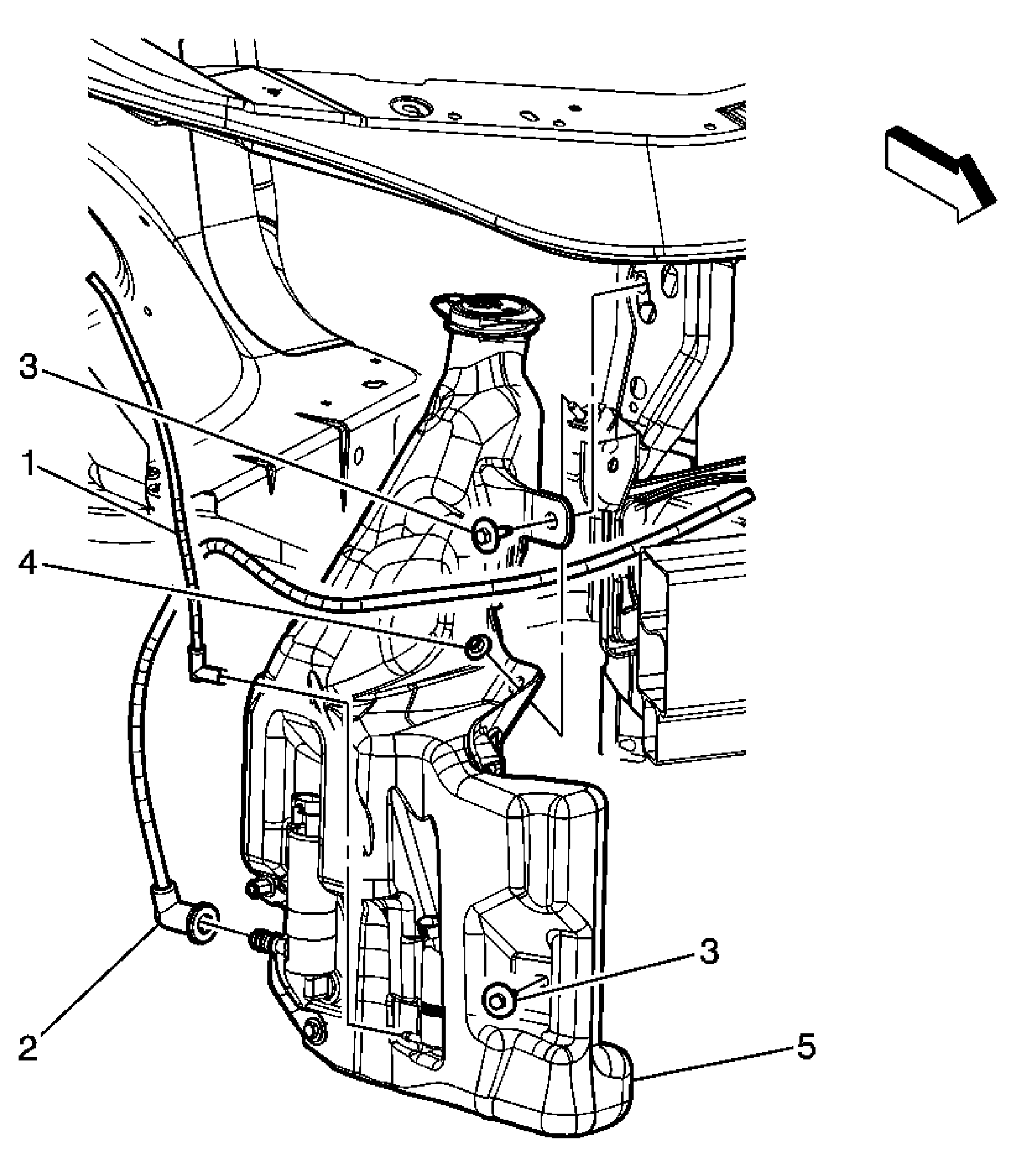

Fig 1: View Of Solvent Container, Solvent Pump Hose, Solvent Hose, Container Screws & Container Nut

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia in order to access and remove the windshield washer container. Refer to Front Bumper Fascia Replacement . Drain the windshield washer solvent into a suitable clean container. Disconnect the forward lamp harness electrical connectors from the washer container.
1	Windshield Washer Solvent Hose
2	Headlamp Washer Solvent Pump Hose
3	Washer Container Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
4	Washer Container Nut Tighten: 6 N.m (53 lb in)
5	Windshield Washer Solvent Container Tip: Lift the container from the stud on the tie bar reinforcement outer panel and lower the washer container from the vehicle. Transfer parts as needed.
