OnStar Schematics

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

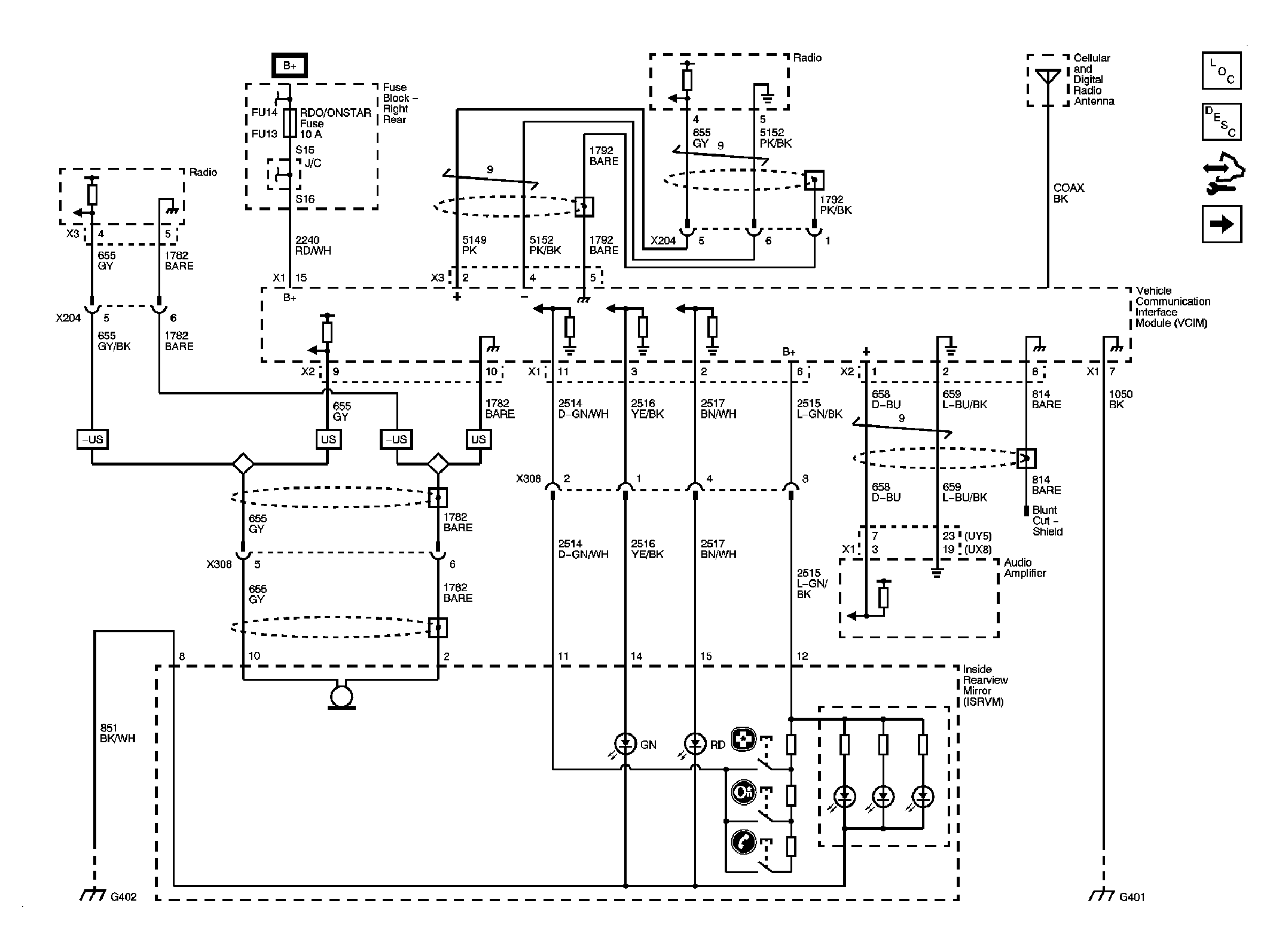

Fig 1: UE1
GM2063478Courtesy of GENERAL MOTORS CORP.

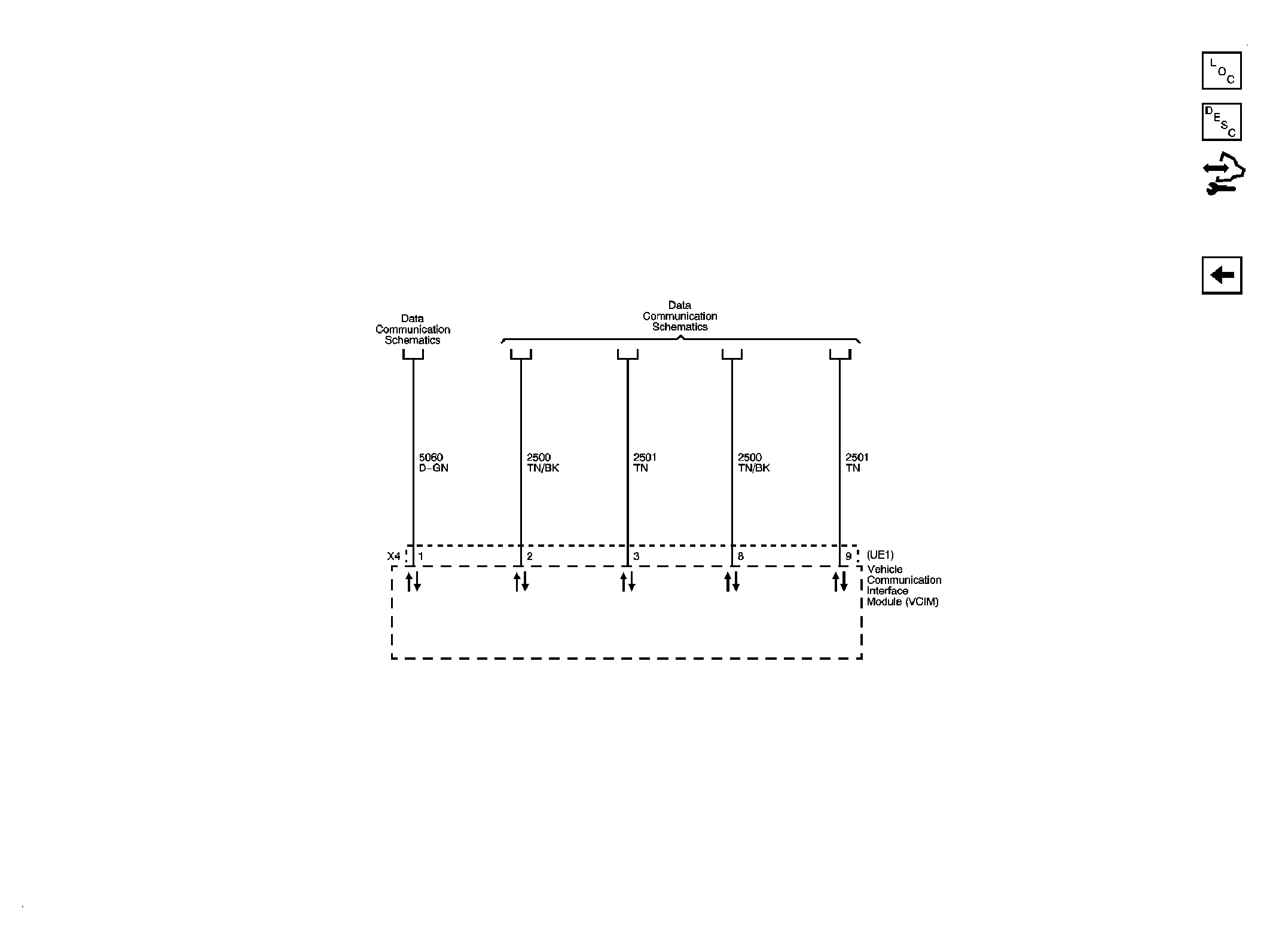

Fig 2: VCIM, DLC
GM2063483Courtesy of GENERAL MOTORS CORP.
