Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

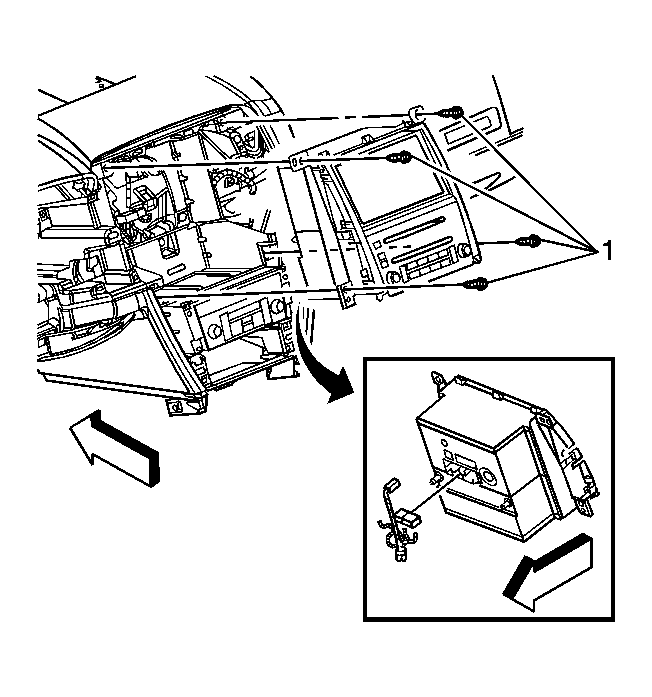

    Fig 1: View Of Radio
    GM1386025Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the bolts (1) securing the radio the I/P and tighten the bolts to 9 N.m (80 lb in).
  3. Install the I/P center trim. Refer to Instrument Panel Center Trim Panel Replacement .
  4. Refer to Control Module References for programming and setup information.
