Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

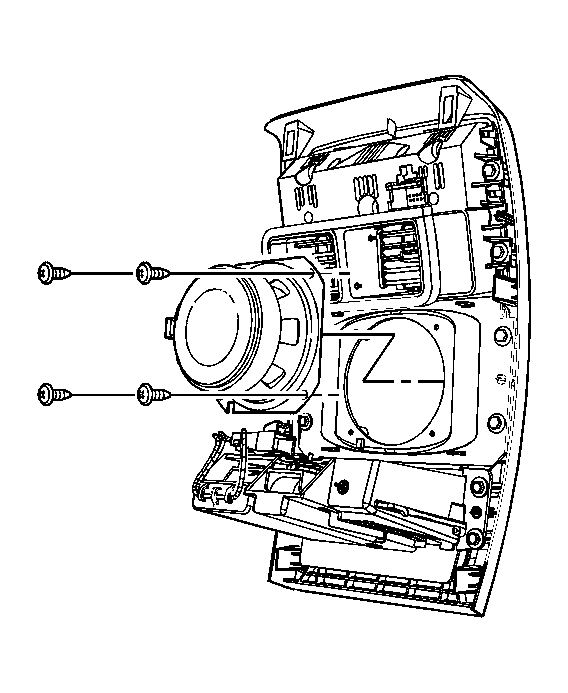

    Fig 1: View Of Front Floor Console Speaker
    GM1469657Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the screws securing the speaker to the end panel and tighten to 2 N.m (18 lb in).
  3. Install the center floor console end panel. Refer to Center Console End Panel Replacement .
