Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the windshield reveal molding retainer clips are bent or damaged, replace the clips.
  2. Align the top end of the reveal molding to the end cap tongue inside the opening of the roof rail.
  3. Install the reveal molding downward and align the reveal molding with the screw holes.

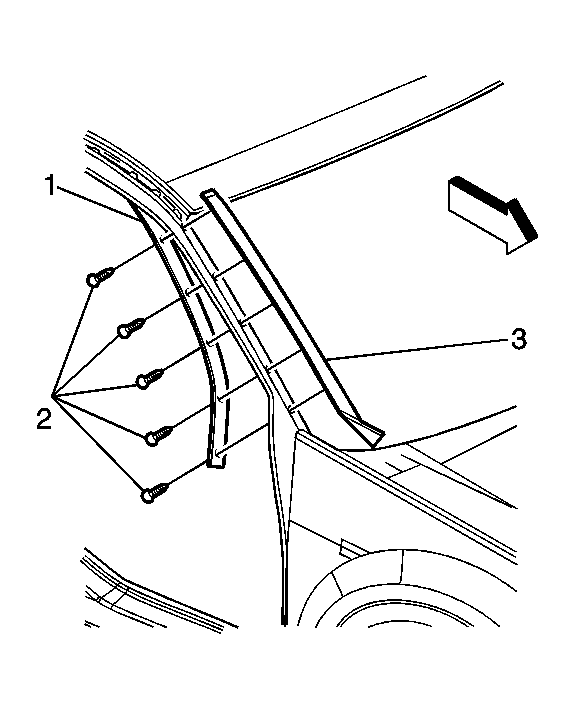

    4. Fig 1: Reveal Molding
    GM1644013Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  4. Install the reveal molding screws and tighten to 2 N.m (18 lb in).
  5. Remove the masking tape.
  6. Clean the tape residue from the windshield.
