Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

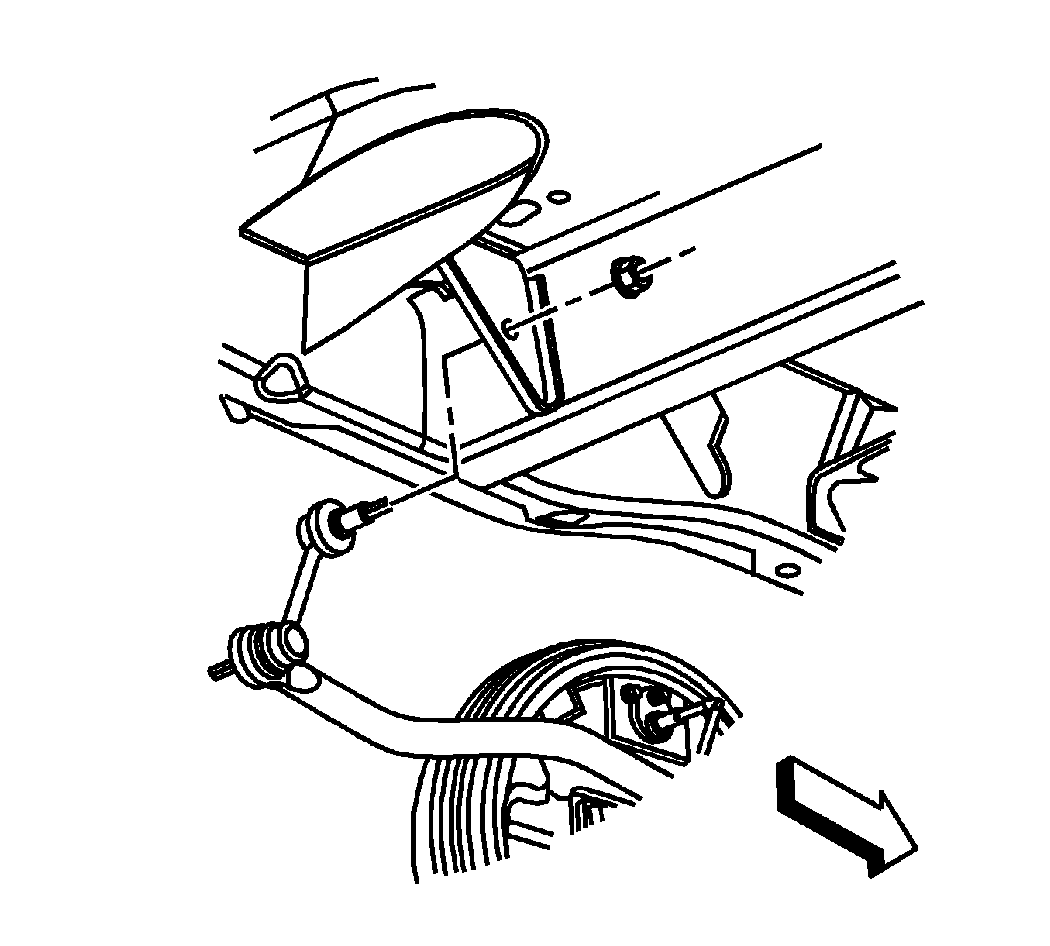

    Fig 1: View Of Stabilizer Shaft Link Mounting Nut
    GM941489Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not attempt to hold the stabilizer shaft link near the boot. Use the hex feature on the end of the stud. Failure to do so could damage the boot.
  1. Install the stabilizer shaft link.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the stabilizer shaft link mounting nuts.
    • Tighten the stabilizer bar link lower mounting nut to 44 N.m (32 lb ft).
    • Tighten the stabilizer bar link upper mounting nut to 44 N.m (32 lb ft).
  3. Remove the axle support.
  4. Lower the vehicle.
