Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

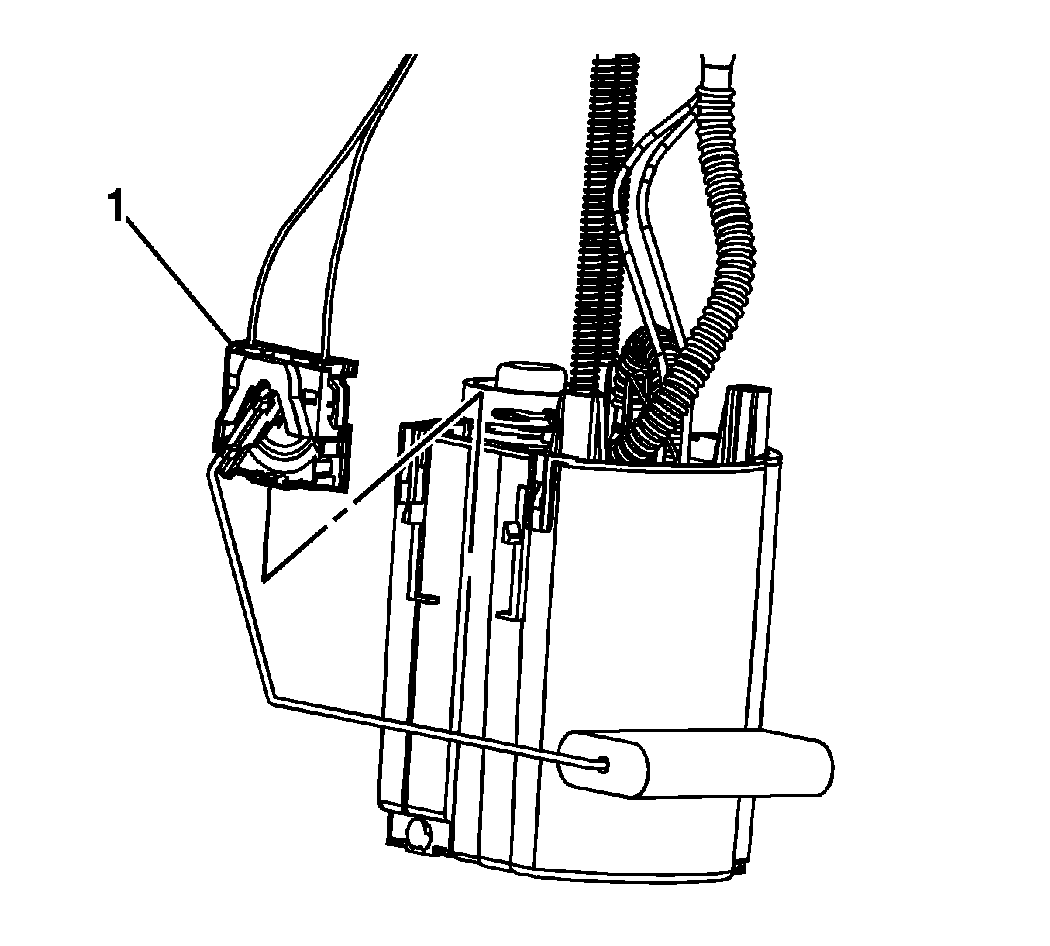

    Fig 1: Identifying Fuel Level Sensor
    GM1564239Courtesy of GENERAL MOTORS CORP.
  1. Complete the following in order to install the fuel level sensor to the module bucket.
    1. Align the edges of the sensor with the slots in the module bucket.
    2. Slide the sensor down into position, ensure the locking tabs are fully engaged.

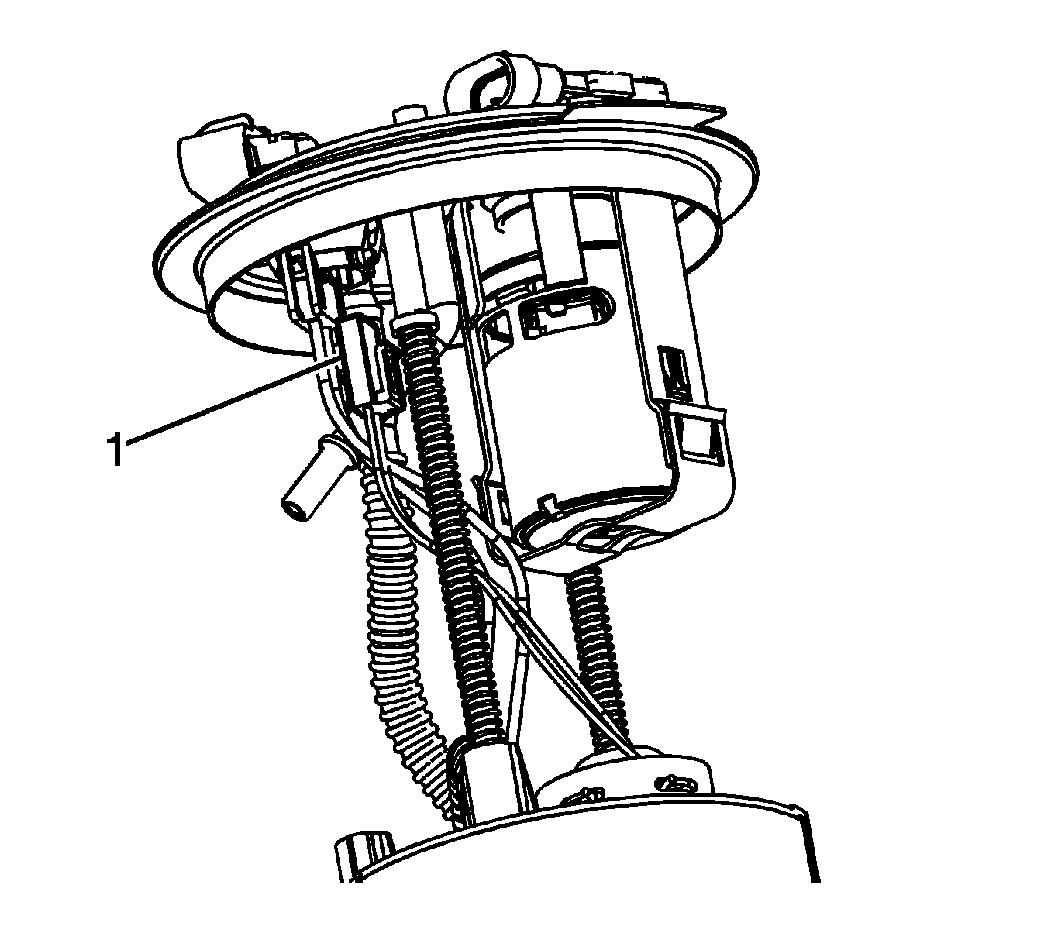

    2. Fig 2: View Of Fuel Tank Module
    GM1564238Courtesy of GENERAL MOTORS CORP.
  2. Connect the fuel level sensor electrical connector (1) to the module cover.
  3. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement .
