Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

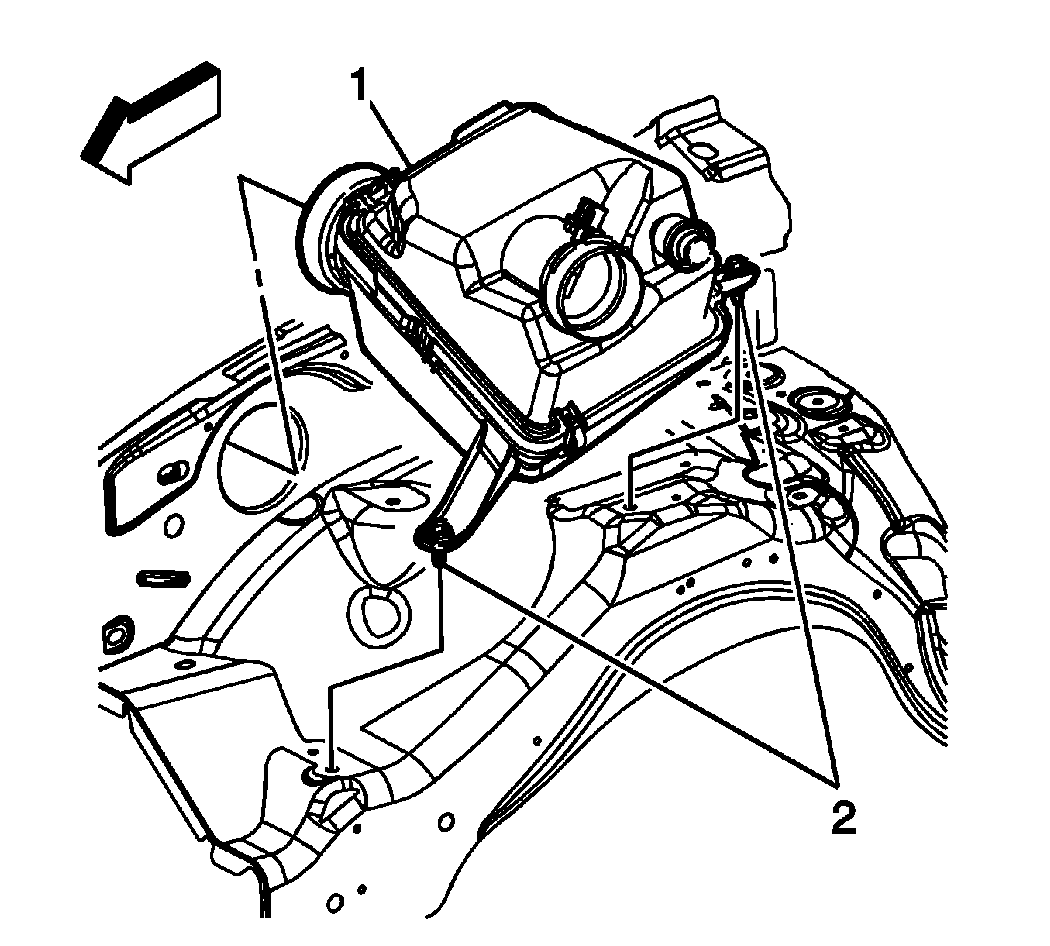

Fig 1: Integral Air Cleaner Housing & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner housing (1) to the vehicle.

CAUTION: Refer to Fastener Caution .

Tighten the integral air cleaner housing bolts (2).
Tighten: Tighten the bolts to 15 N.m (11 lb ft).

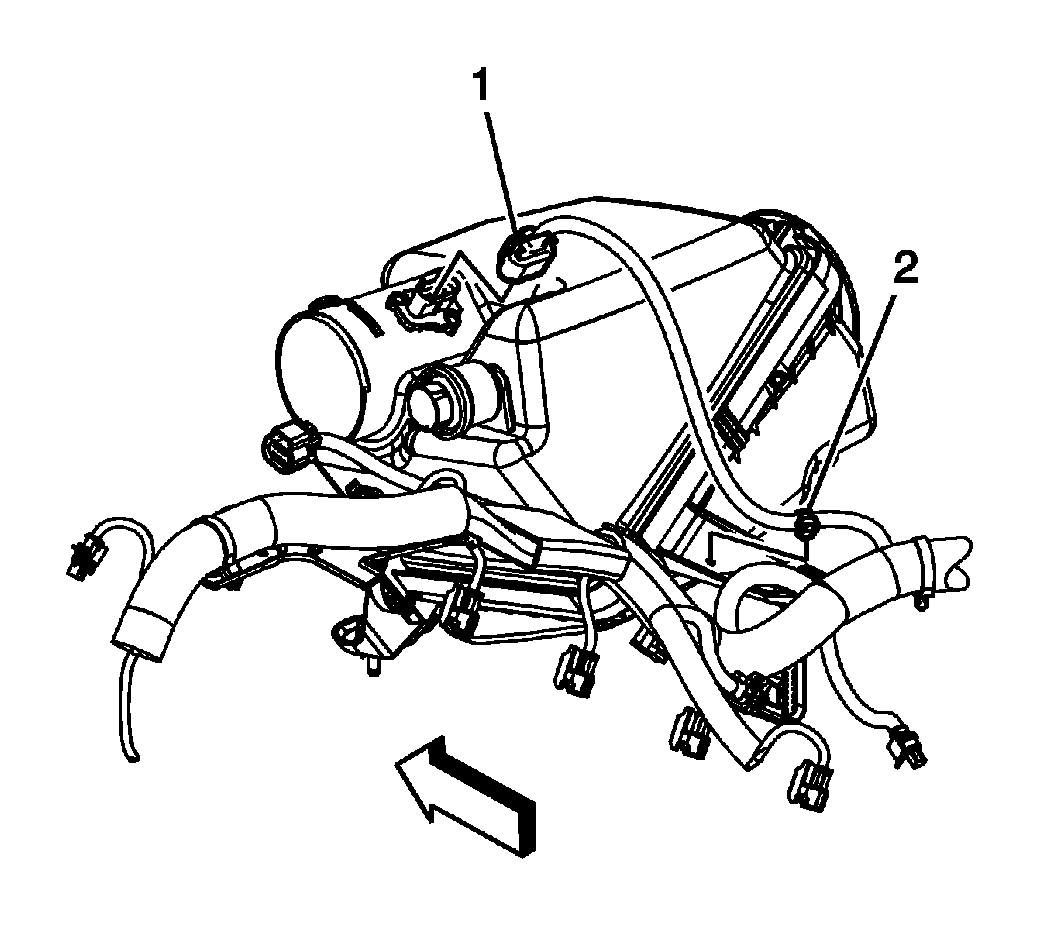

Fig 2: MAF/IAT Sensor

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
