Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

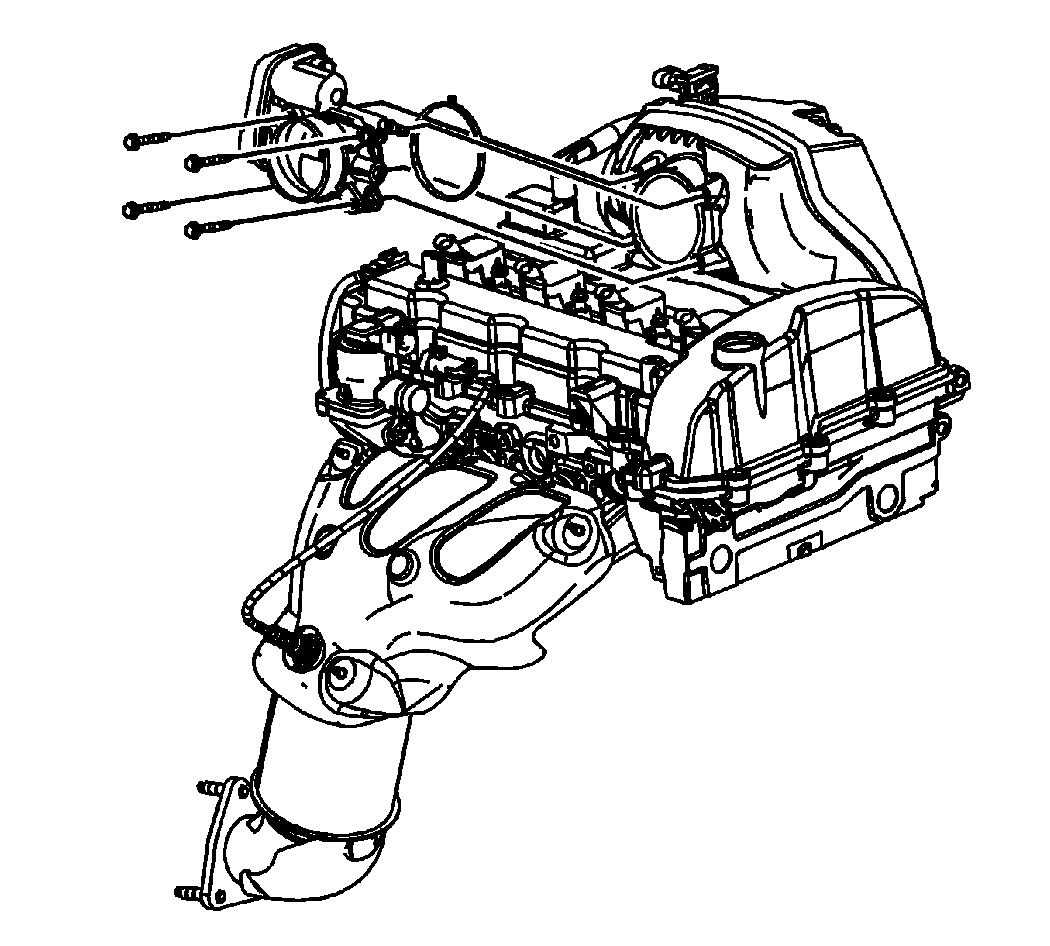

    Fig 1: View Of Throttle Control Module, Seal And Bolts
    GM1769041Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW seal into the intake manifold groove.
  2. Position the throttle body control module to the intake manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the throttle body control module bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

    4. Fig 2: View Of EVAP Canister Purge Pipe, Throttle Body Module & EVAP Canister Purge Solenoid Valve
    GM1352026Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector to the throttle body control module.
  5. Connect the EVAP canister purge pipe (1) to the throttle body control module. Refer to Plastic Collar Quick Connect Fitting Service .
  6. Install the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
